Adjustable Spacer Bolts with Vibration Isolating Elements, 20-60mm, 4 Pieces
Adjustable Spacing Bolts with Vibration Damper Element
20-60mm, 4 pieces
The engine mount is designed for internal combustion engines from 30 to 170ccm.
The vibration damping elements are screwed through the entire unit in the engine bulkhead up to the engine mount with M5 threaded rods so that the damping properties of the rubber are maintained. The rubber should be compressed by about 0.2 - 0.3mm.
Then the spacers are adjusted in length and can be screwed into the thread on the engine bulkhead.
On the side facing the engine mount, the spacing bolts are machined spherically, into which the spherical washer is inserted. This ensures that the engine mount always lies flush, and allows for adjustment of engine thrust and side-pull by up to approximately 3° in all directions.
The vibration damping unit is designed for engine bulkheads with a thickness of 7 - 8mm.

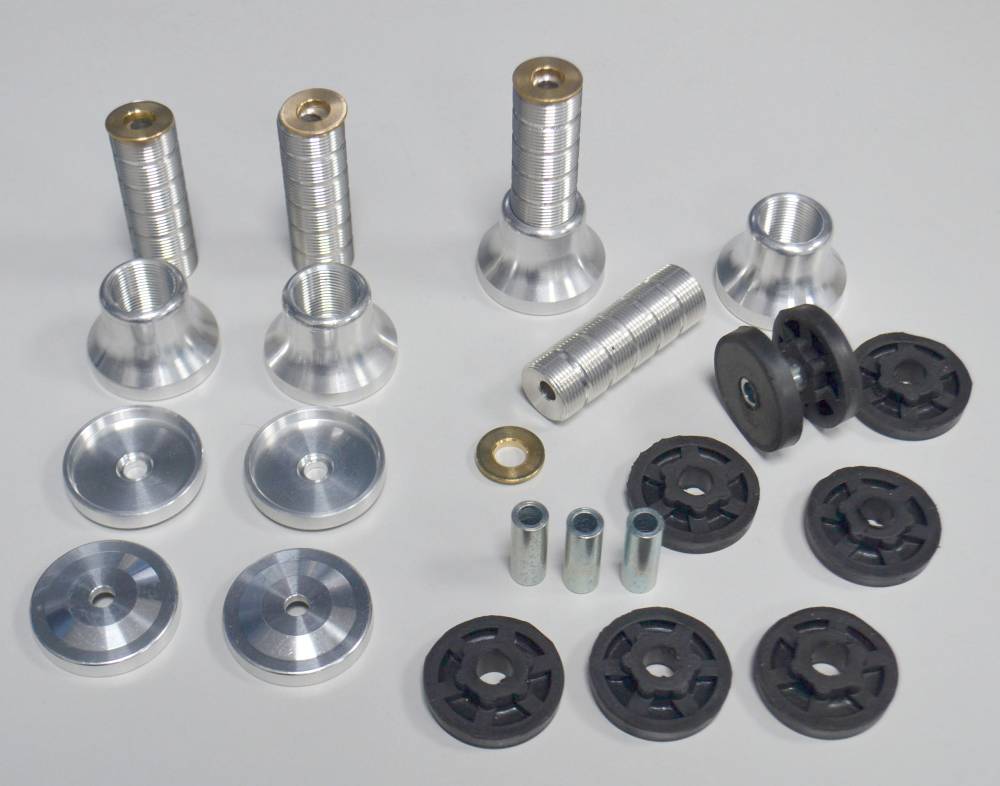

Scope of delivery:
- Flange with internal thread (4 pieces)
- Backing washers (4 pieces)
- Vibration damping elements (8 pieces)
- Spacer sleeves (4 pieces)
- Threaded bolts with M16x1 thread (4 pieces)
- Brass support washer (4 pieces)
- Instructions
