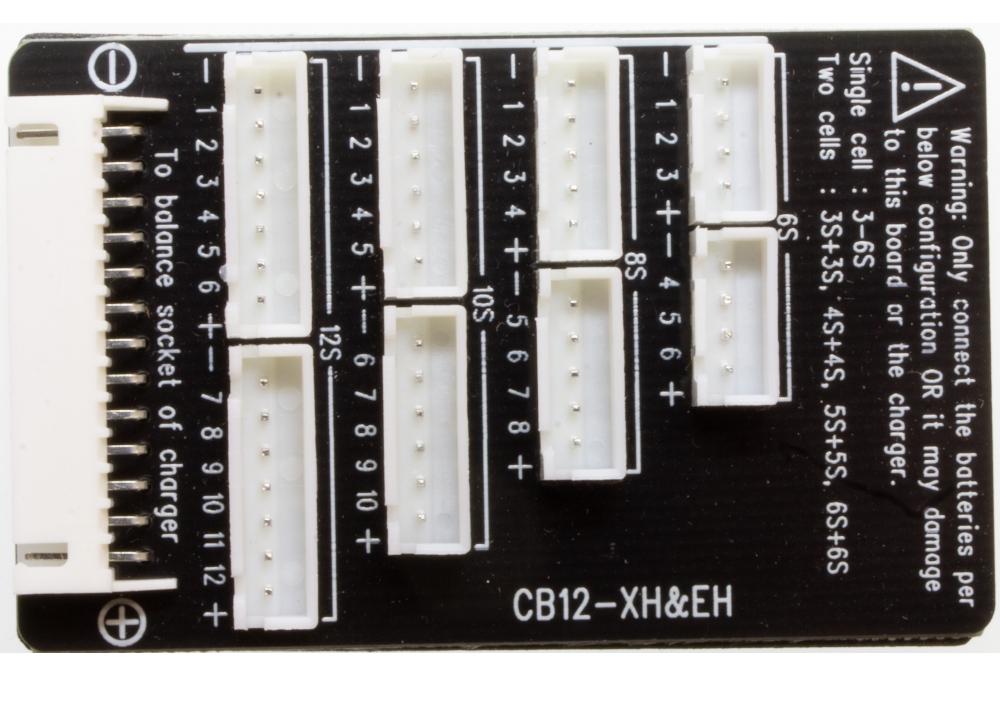

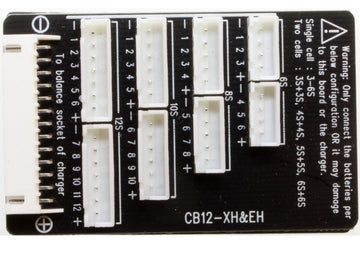

Adapter board CB12-XH for Junsi X12 and batteries with XH connector
Prices incl. VAT unless stated otherwise. For 1 unit of this item.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
-
Adapter board CB12-XH for Junsi X12 and batteries with XH connector
CB12-XH Adapter Board for Junsi X12 and Batteries with XH Connector
Batteries must NOT be plugged into different banks (A - E).
Charging a 12S battery with 2 balancer plugs:
You will need the board with a connecting cable suitable for the battery and the charger. Please follow the steps below carefully:
- First, connect the charger to the power supply unit or a power supply battery. If you are using a power supply unit, switch it on first. Be careful! Only connect the batteries to the charger when they are properly connected to the balancer board!
- Then insert the first balancer plug of cells 1 - 6 (battery negative side, black cable) into the appropriate 6S slot of the board from the negative side.
- Then insert the second balancer plug of cells 7–12 into the second 6S slot from the positive side (battery positive side, red cable).
- Now connect it to the charger. If nothing has flashed or smoked up to this point, you have done everything correctly!
- Only now connect the thick red main charging cable "+" of the battery to the charger, and then the thick black main charging cable "-".
Scope of delivery:
- 1x CB12-XH adapter board (without connecting cable!)
