aeroflyRC USB Interface Set for 3.5 mm Trainer Port (Spektrum/FrSky)

For all RC transmitters with a 3.5 mm trainer port (Spektrum / FrSky Taranis)

This set consists of interface #3031010 and adapter #31040 and is suitable for wired connection of an RC remote control to Ikarus aeroflyRC8 and aeroflyRC7

It transmits all control functions of your transmitter to the computer. You can also use it to control all special functions such as retractable landing gear and flaps. With this USB interface, you can fly all models in the simulator with your own RC remote control.

• Suitable for all Spektrum or FrSky transmitters with a trainer port
• Suitable for all RC transmitters with a 3.5 mm mono trainer port or module (Not for HoTT!)
• With 1.5 m long cable
• With signal amplifier (required for some transmitters)
• With sum signal input and therefore also suitable for connecting a PPM sum signal receiver.

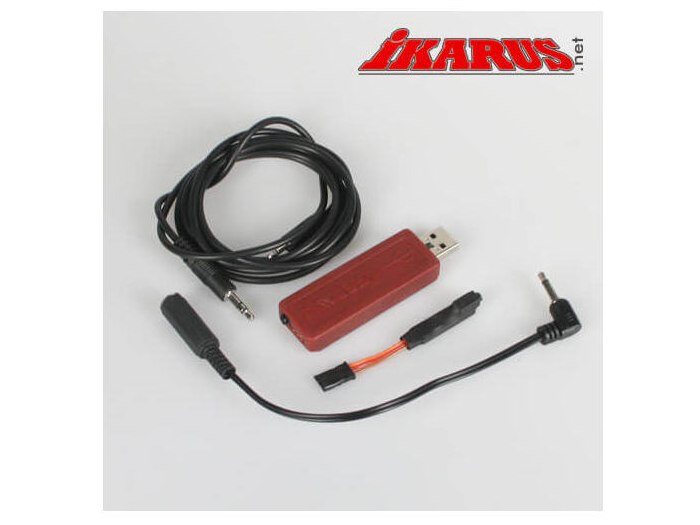

Scope of delivery:

• USB interface
• 3.5 mm mono adapter
• approx. 1.5 m long cable
• Interference amplifier #3024040 (only needed for some transmitters)
• Note: The packaging and the housing color of the USB interface may vary.

Connection:

Simply connect this USB interface to a free USB port on your computer. It will be automatically recognized by your computer and can be used for both the download and DVD versions of aeroflyRC8 or aeroflyRC7.

When you plug in the adapter, your Spektrum system automatically turns on and goes into trainer mode. You don't need to adjust anything else on the transmitter. As long as you are flying with the cable, the 2.4 GHz module in the transmitter remains off.

For FrSky Taranis systems, use the 3.5 mm DSC socket and activate the PPM output as "Trainer/Socket" via the transmitter menu.

Wireless flying:
If you have a receiver with a PPM sum signal output, you can connect the USB interface to the USB interface via a short patch cable and fly wirelessly. The control signals are first transmitted from the RC transmitter via the radio link to the receiver and then via a short patch cable and the USB interface to the computer.

Note on two-player operation:
Please note that the computer cannot distinguish between two identical connected USB interfaces. For two-player operation (e.g. aerotow), you therefore need 2 different USB input devices. For example, the USB interface in combination with a SimConnector or a game controller # IK-3036012

Note on Graupner HoTT systems:
According to Graupner, connecting a jack plug to current Graupner HoTT transmitters is not permitted. For owners of Graupner HoTT systems, we therefore recommend the USB HoTT interface set #IK-3031020.
