AGF-RC, A24CHR Surface Servo, 30x10x30.5mm, 24.5g, 80Nm/0.08@8.4V
Servo AGF-RC, A20BHM, 23x12x27.5mm, 21g, 114Nm/0.068@8.4V

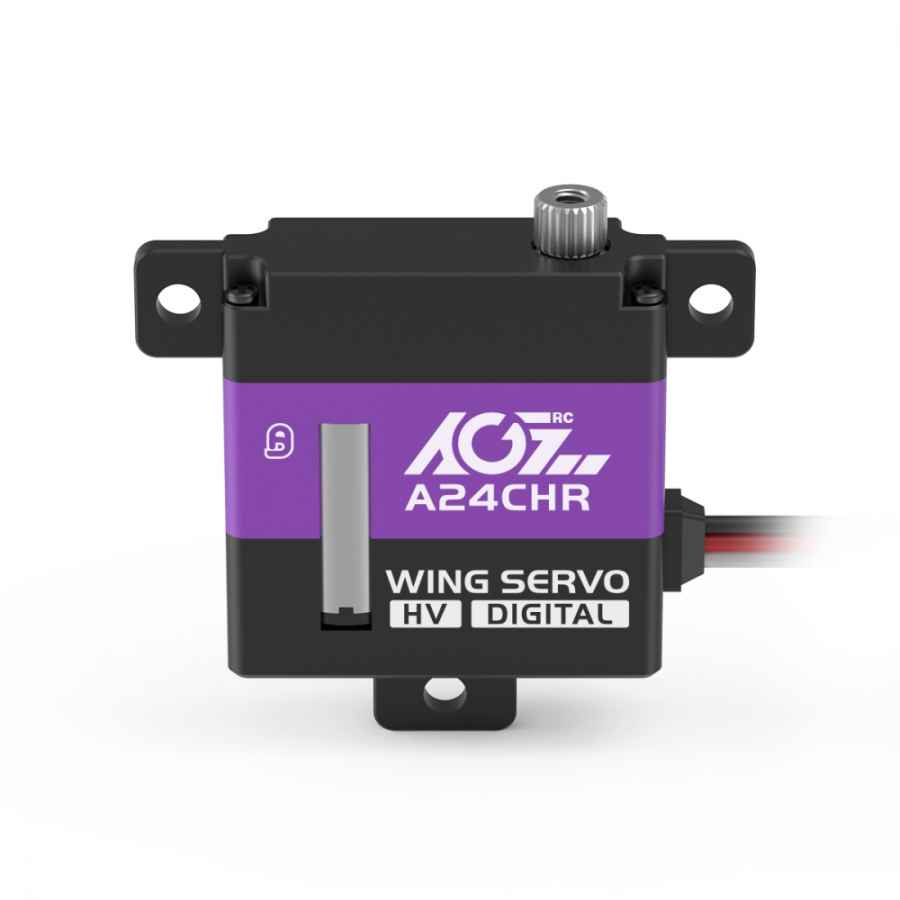

The AGF-RC A24CHR is a 10mm wing servo with a full aluminum housing. The servo is HV capable and can be operated directly from a 2s LiPo (4.8 - 8.4V).
With 8kg of torque, this small powerhouse can be installed wherever space is limited, but high torque and a play-free gearbox are required.
With dimensions of 30 x 10 x 30.5 mm, it fits into all common 10mm servo bays / frames.
The A20BHM is also programmable with the optional USB interface. A Windows 7/10 PC is required for this. The servos are powered directly via the USB port and only need to be plugged into the interface. In the software, for example, the soft start, the neutral point, the servo travel can be adjusted (larger and smaller) or the direction of rotation can be set. Furthermore, if required, the Sanwa SSR mode can be activated, which is particularly interesting for RC car drivers. The integrated overload cut-off can also be adjusted in 3 stages. It can also be selected what should happen in case of signal loss.
Of course, programmability is an optional feature! All servos can be operated normally right out of the box and do not need to be configured beforehand!
