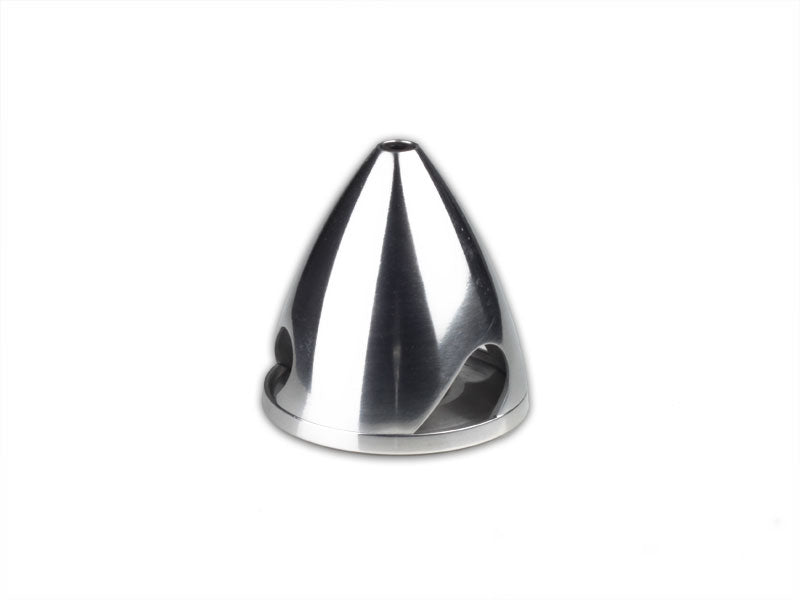

Aluminum Spinner 2-blade Ø 76mm / 3in
Aluminum Spinner Ø 76mm for 2-Blade Propellers
Suitable for model aircraft with internal combustion or electric motors.

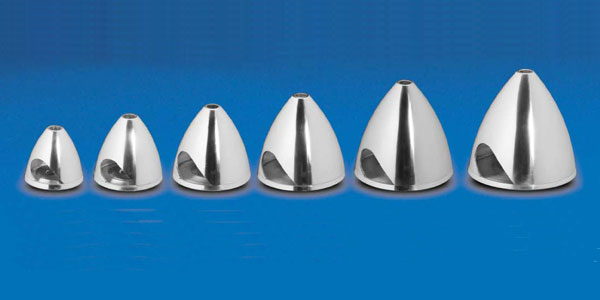

The CNC machined and polished two-part aluminum spinners are available for 2- or 3-blade propellers in many sizes. Absolute concentricity is guaranteed due to the precise manufacturing method. The spinner cap together with the backplate is mounted on the crankshaft/drive hub with a central screw and special retaining nut (Please pay attention to the thread dimensions of the crankshaft/drive hub - if necessary, an appropriate spinner retaining nut and spacer bush must be ordered separately).

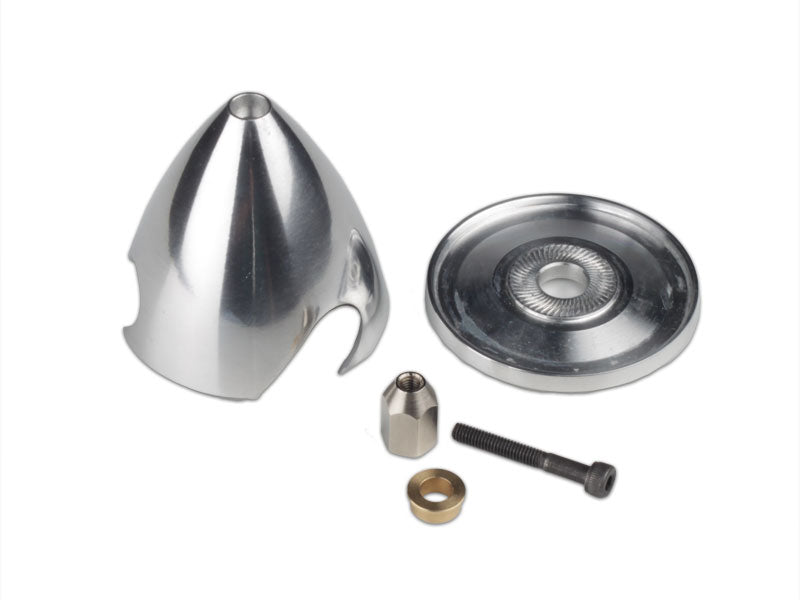

Delivery includes spinner retaining nut, spacer bush, and mounting screw. See the table below for delivery details.
Technical Data:
- Diameter 76 mm / 3.5 inches
- Overall length 84 mm
- Backplate bore 9.6 mm
- Spinner cap front bore 4 mm
- Retaining nut thread (motor side - mounting screw) 5/16 inch x 24 - M4
- Spacer bush inner x outer diameter 8 x 9.6 mm
- Weight 147 g
