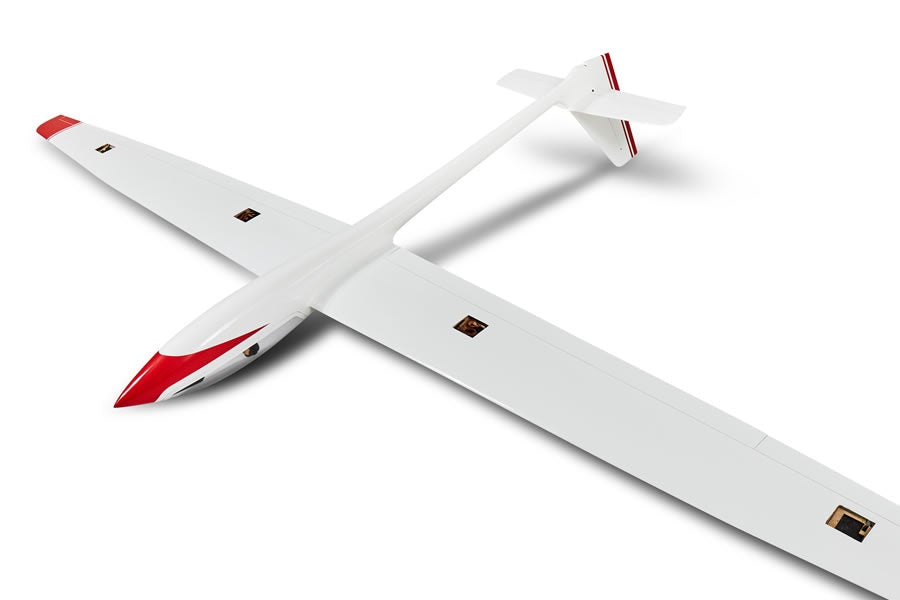

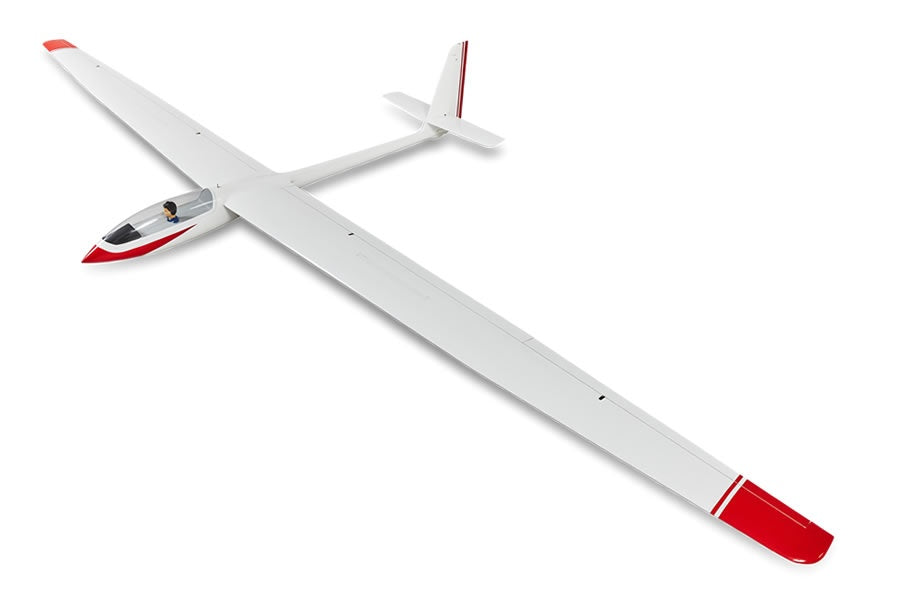

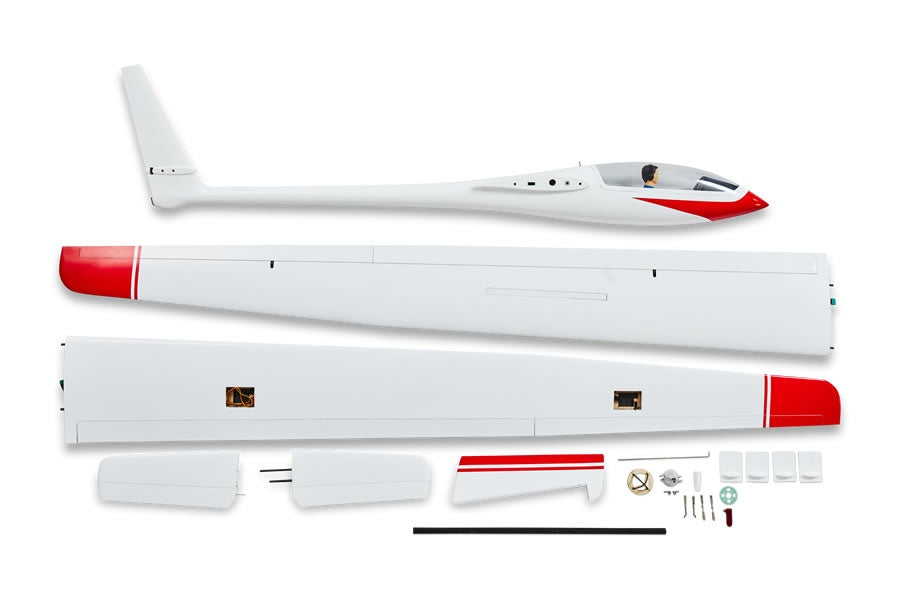

ASW-17, Scale Glider, full GRP, ARF+, Span 3500mm
D-Power # ASW350

Into the thermals!

The ASW-17 3.5 from D-POWER is a true-to-scale glider model constructed entirely from GRP. Just like the original from Schleicher, this replica stands out with its excellent thermal flying characteristics and aerobatic capability.

Once the ASW-17 is airborne, either by means of an optional tow coupling or an optional electric drive, the model captivates with its wonderfully scale-like flight pattern and excellent gliding properties. The model is characterized by its very stable circling in thermals. In conjunction with the flaps, the ASW-17 can thus be wonderfully adapted to various weather conditions. And thanks to the diverse braking options, the glider can be landed safely and true to scale even in tight spaces. Optionally, the ASW-17 is fully prepared for the additional use of airbrakes and/or an electric drive.

Features:

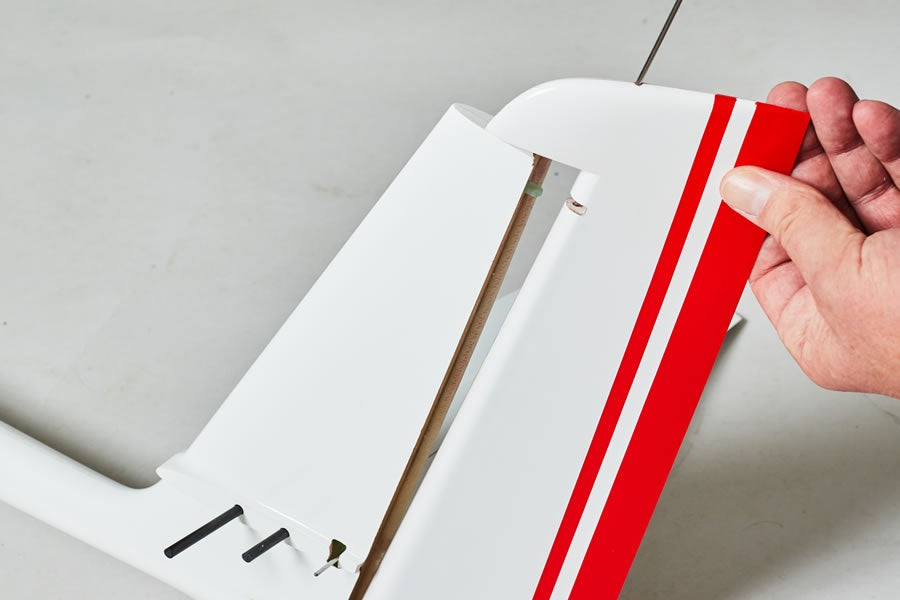

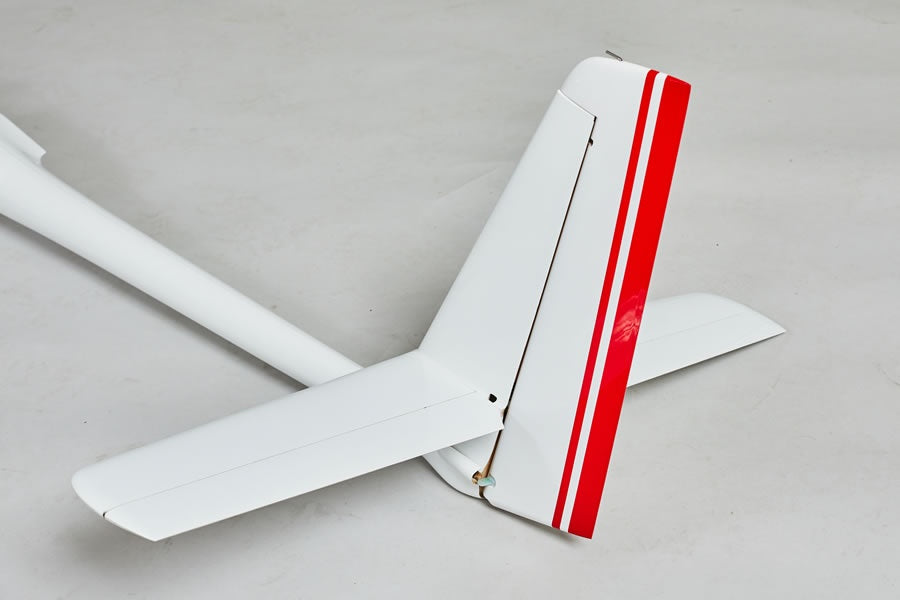

• Aerobatic thermal glider with all-moving tailplane
• Completely manufactured in high-quality GRP shell construction
• All parts painted in the mold
• Without identification - offers space for personal identification
• Spacious fuselage with plenty of room for electronics
• HQ 1.5-12 wing profile
• 2-piece wing
• CFRP reinforcements in fuselage and wings
• All control surfaces designed as elastic flaps
• Removable cockpit including instrument panel and pilot
• Short construction time thanks to high ARF+ prefabrication level

ARF+ means an extremely high level of prefabrication

D-Power deliberately decided against offering this model with built-in electronics and servos. Because with the ARF+ equipment, you have the option of equipping your glider according to your preferences. All wiring is completely laid, so you only need to connect your electronic components to the pre-installed wiring harness and plug the cables in the fuselage into the receiver. Spend minimal time in the hobby room - and maximum time at the airfield.

• Wiring harness pre-installed and integrated
• Servo frames pre-installed

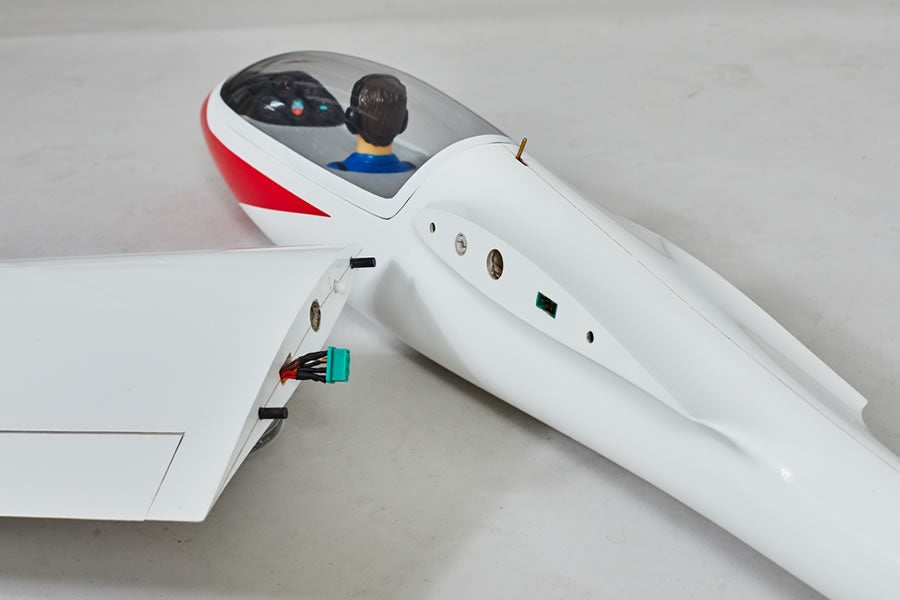

• MULTIlock® wing locking system installed
• MPX high-current connectors installed in fuselage and wing parts
• Pre-drilled linkages, all linkages pre-installed

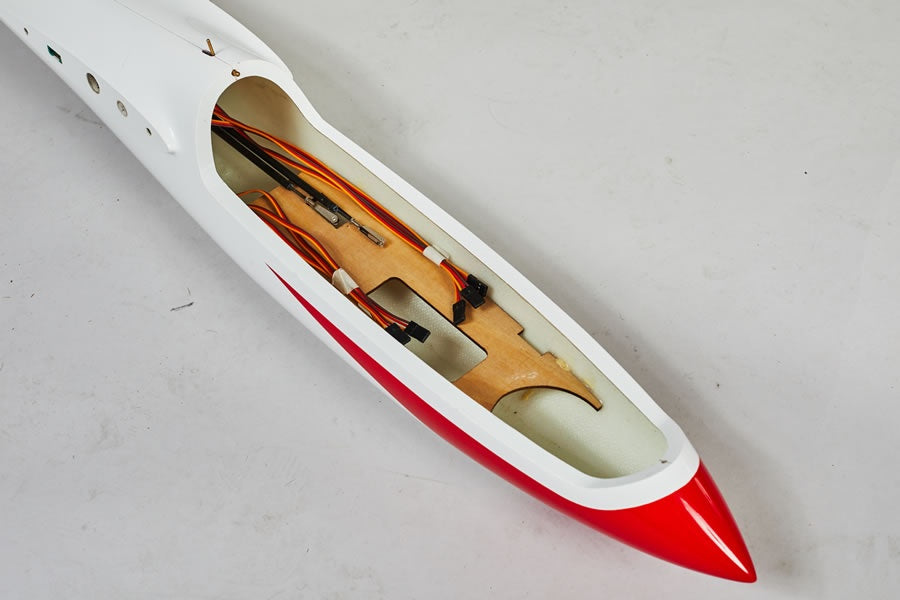

• Laser-cut battery board pre-installed in the fuselage

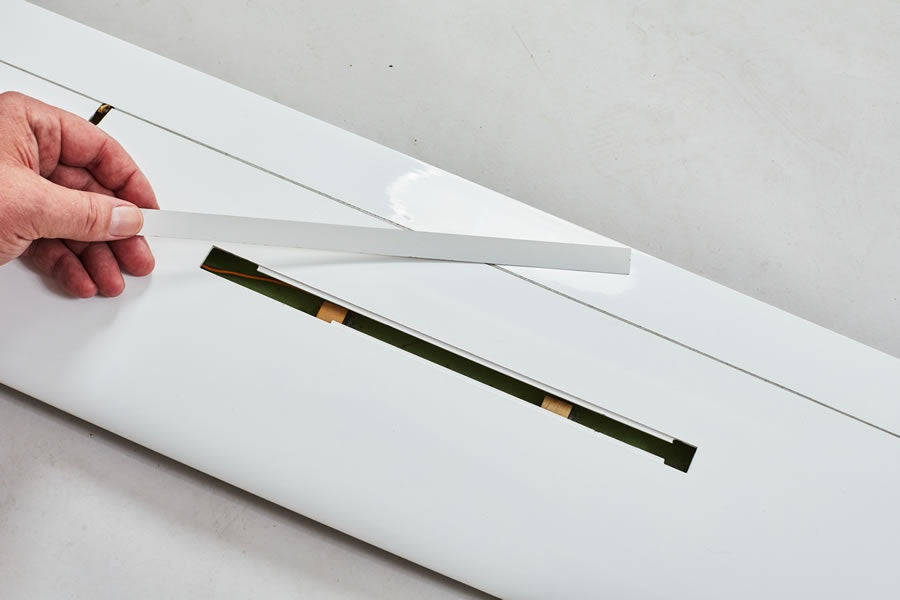

• Prepared for the use of 260mm airbrakes (wiring harness already laid)

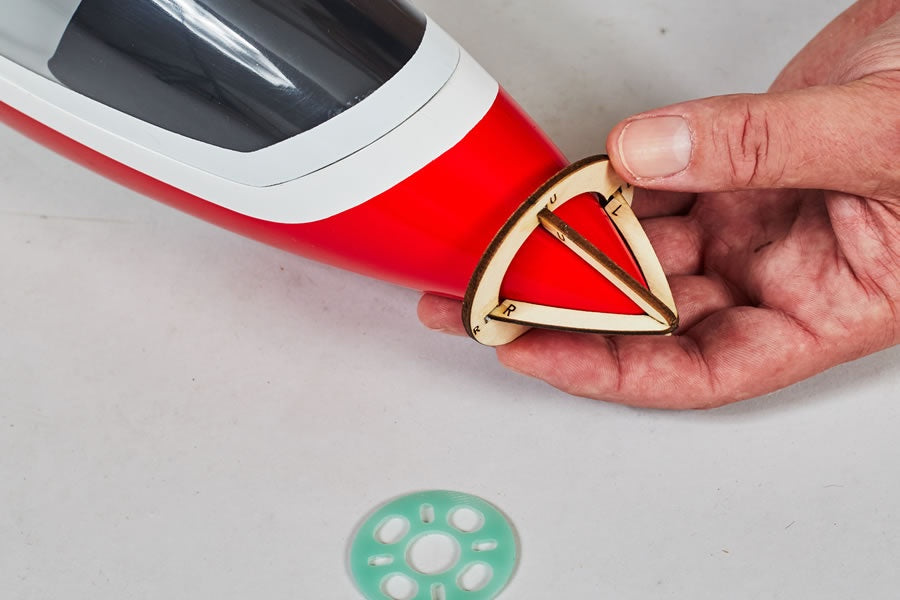

• Prepared for electric drive - including motor bulkhead
• Canopy lock
• GRP control horns mounted on the wings
• Incl. linkages and rods

Technical data:

• Wingspan: 3500 mm
• Fuselage length: 1470 mm
• Wing profile: HQ 1.5-12
• Wing area: 62.13 dm²
• Flight weight approx.: 3100g (without motor and battery)

Required accessories:

• Rudder servos: 1x D-Power DS-340
• Elevator servos: 1x D-Power DS-340
• Aileron servos: 2x D-Power DS-840
• Flap servos: 2x DS-840
• Receiver power supply: D-Power Antares UBEC 8A battery switch
• Receiver battery: D-Power HD-4000 2S Lipo (7.4V) 30C
• Trim weight
• Airbrakes (optional): D-Power electric airbrakes 260mm
• Tow coupling: optional
• Motor (optional): D-Power D-Drive IL36 3.7:1
• Controller (optional): D-Power Comet 80A
• Battery (optional): 4S LiPo 3300mAh
