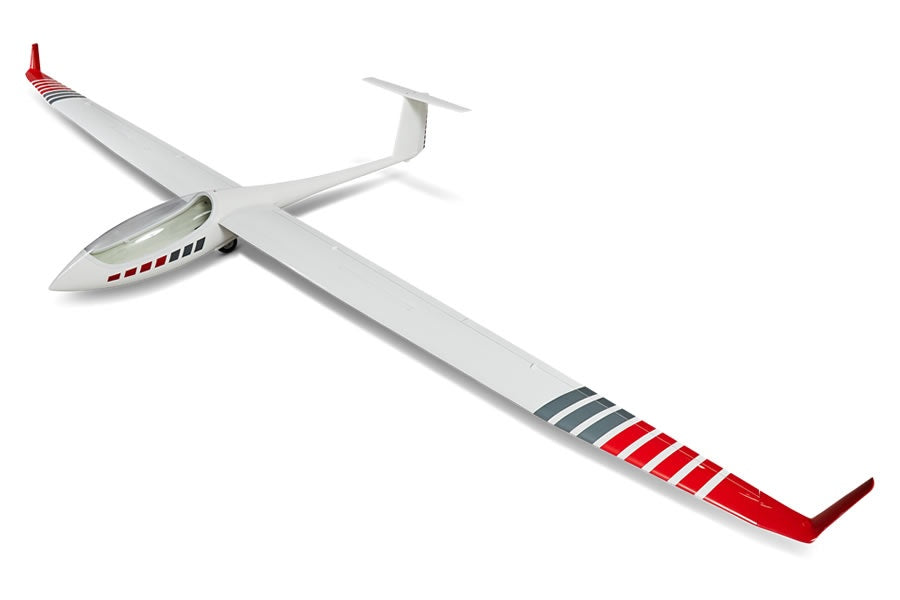

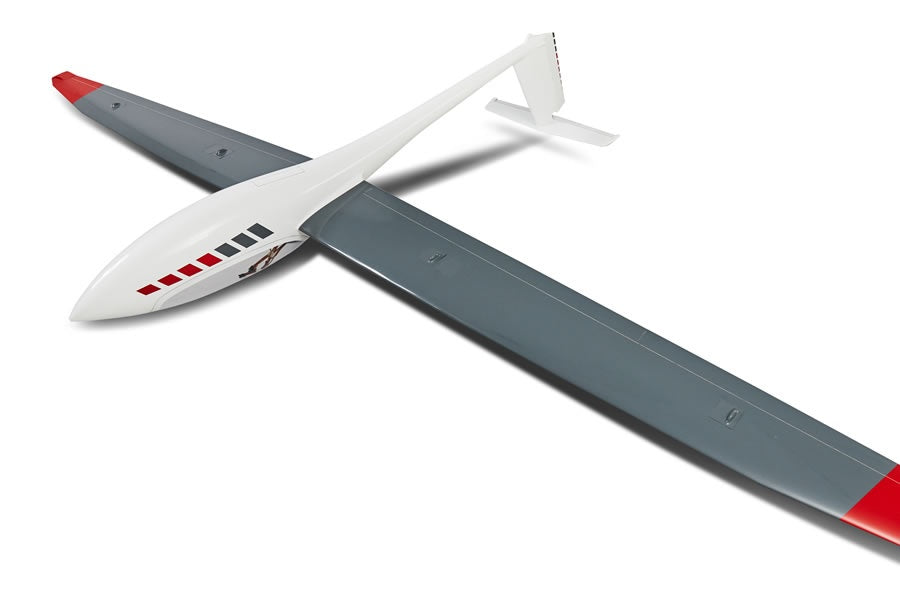

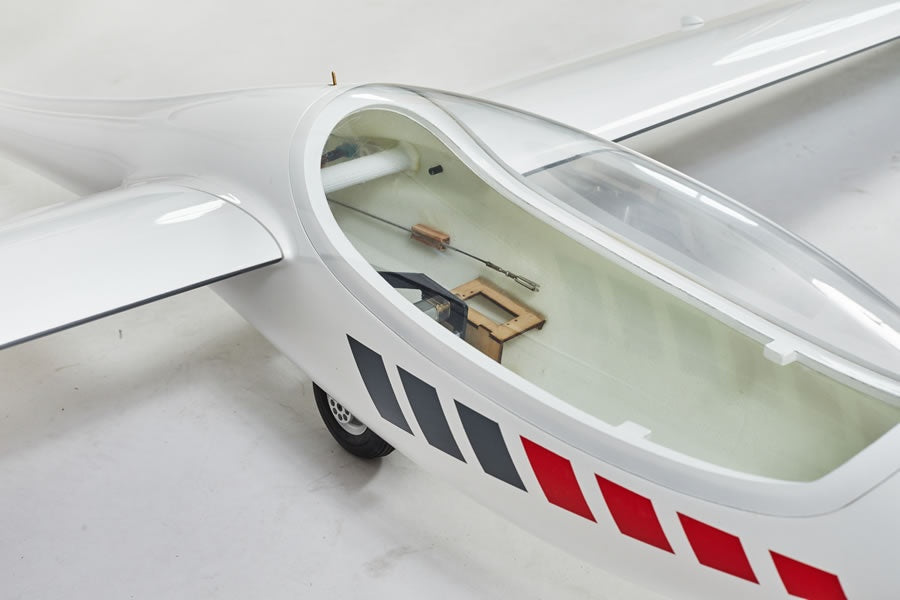

ASW-28, Full GRP Scale Glider, Span 4000mm
ARF+, including retractable landing gear

The ASW-28 by D-POWER is a true-to-scale glider model constructed entirely from GRP. Just like the original from Schleicher, this replica with a 4m wingspan impresses with its excellent thermal flight characteristics and aerobatic capability.

Once the ASW-28 is in the air, using the optional towing clutch, the model captivates with its wonderfully true-to-scale flight image and excellent gliding properties. The model is characterized by its very stable circling in thermals. In combination with the flaps, the ASW-28 can thus be wonderfully adapted to various weather conditions. And thanks to the diverse braking options, the glider can be landed safely and true-to-scale even in tight spaces. Optionally, the ASW-28 is fully prepared for the additional use of airbrakes.

Features:

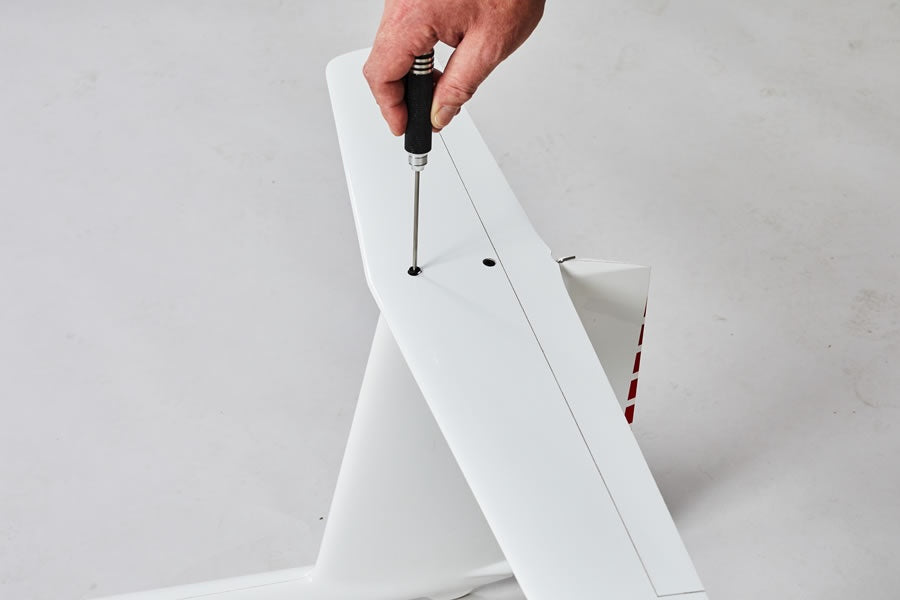

• Aerobatic thermal glider with T-tail
• Completely manufactured in high-quality GRP shell construction
• All parts painted in the mold
• Without identification - offers space for personal identification
• Spacious fuselage with plenty of room for electronics
• HQ W3 11 airfoil
• 2-piece wing
• CFRP reinforcements in fuselage and wings
• All rudders designed as elastic flaps
• Includes electric retractable landing gear

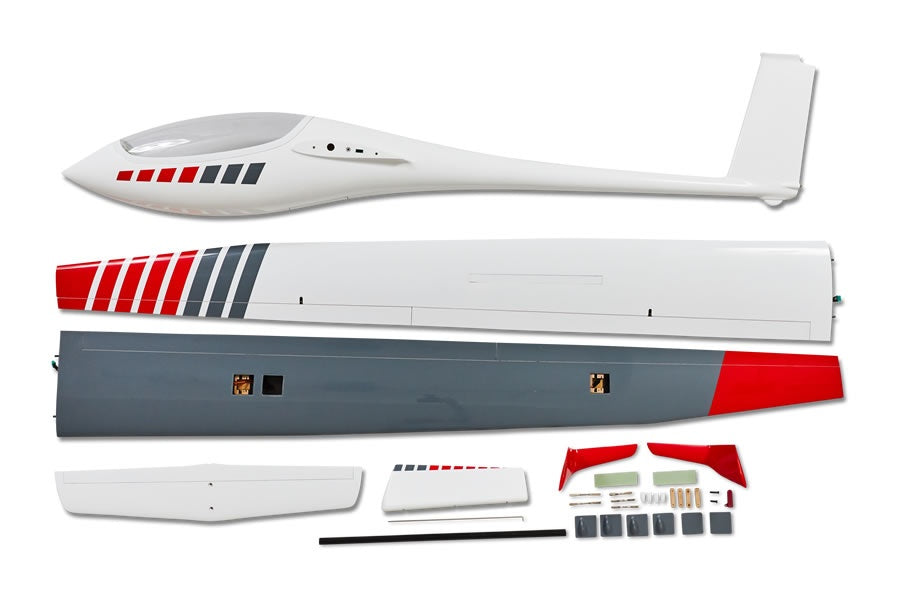

• Short construction time due to high ARF+ prefabrication level

ARF+ means an extremely high level of prefabrication

D-Power has deliberately decided against offering you this model with built-in electronics and servos. Because with the ARF+ equipment, you have the option of equipping your glider according to your preferences. All wiring is completely laid, so you only have to connect your electronic components to the pre-installed wiring harness and plug the cables in the fuselage into the receiver. Spend minimal time in the hobby room - and maximum time at the airfield.

• Wiring harness pre-installed and integrated

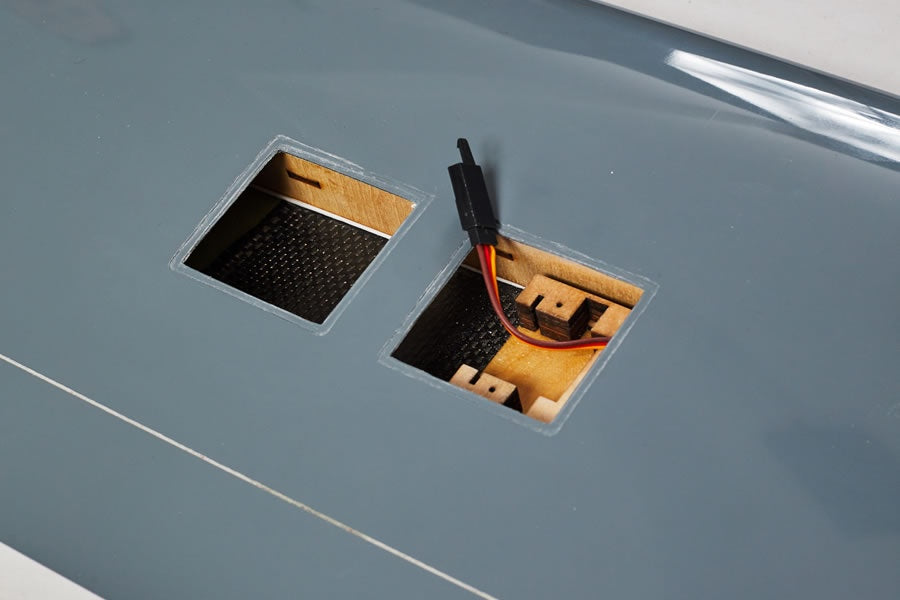

• Servo frames pre-installed
• MULTIlock® wing locking system installed

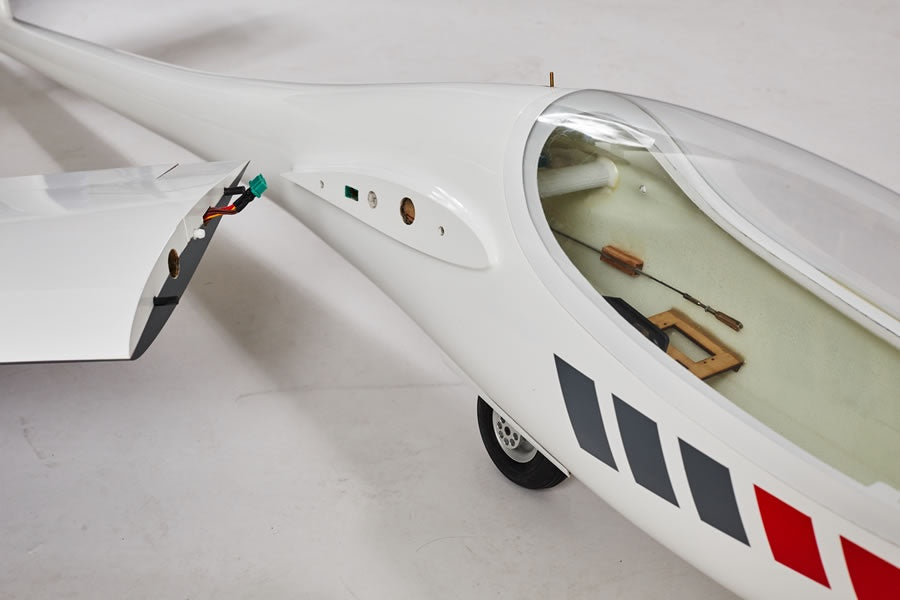

• MPX high-current connectors installed in fuselage and wing sections
• Pre-threaded linkages, all linkages fully installed

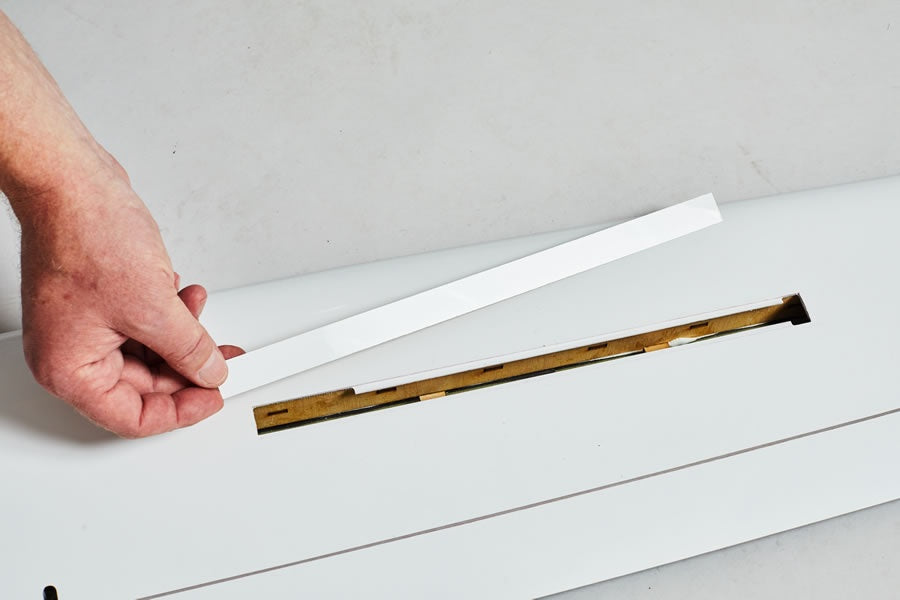

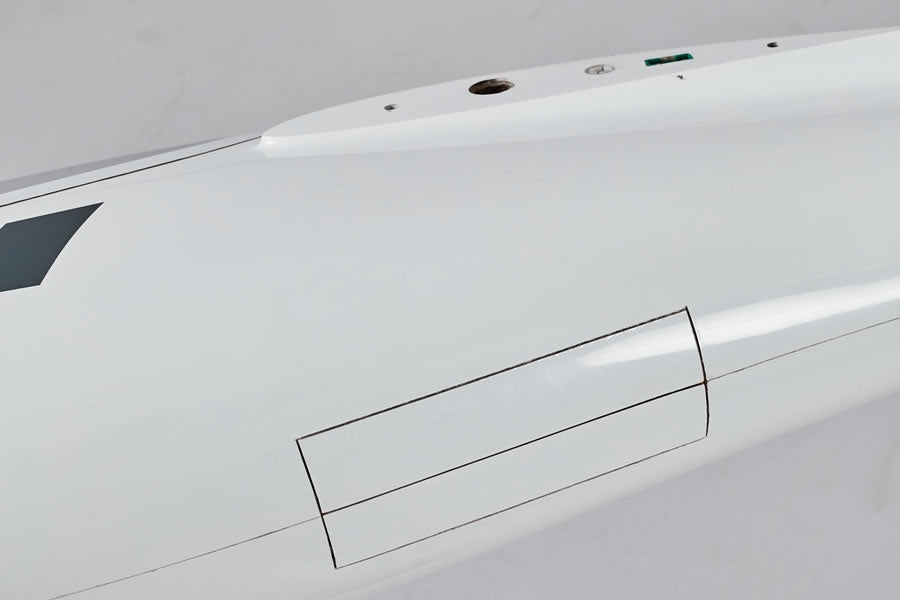

• Prepared for the use of 300mm airbrakes (wiring harness already laid)

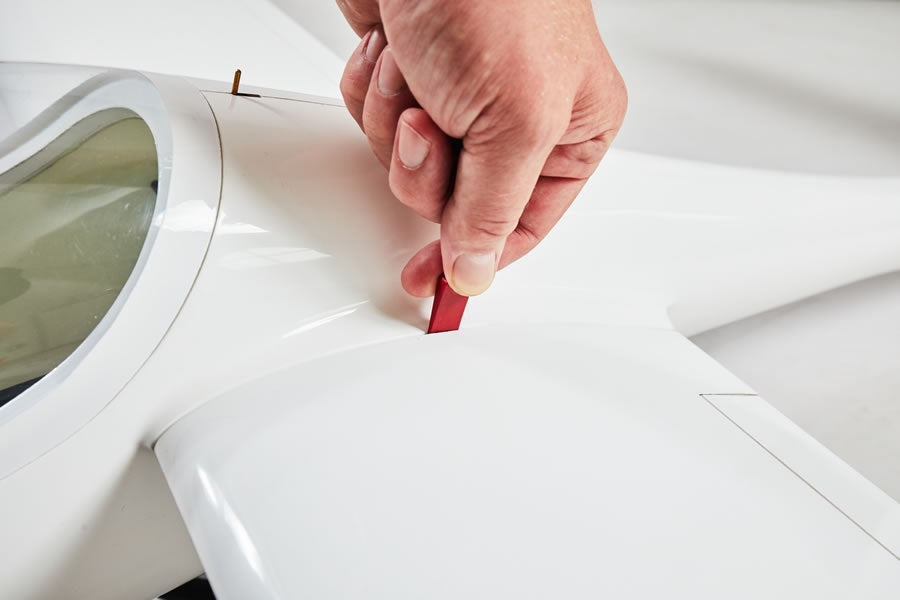

• Canopy lock

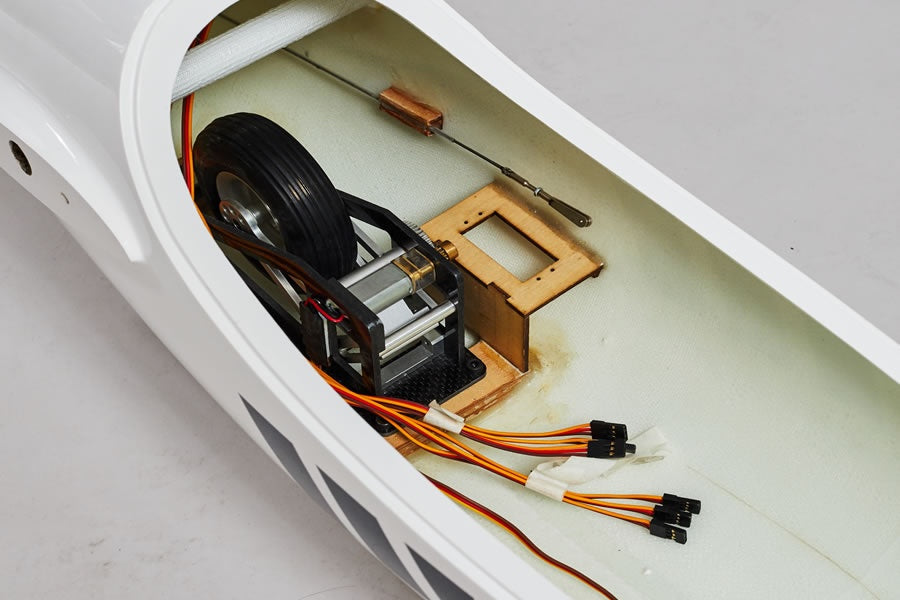

• Electric retractable landing gear installed

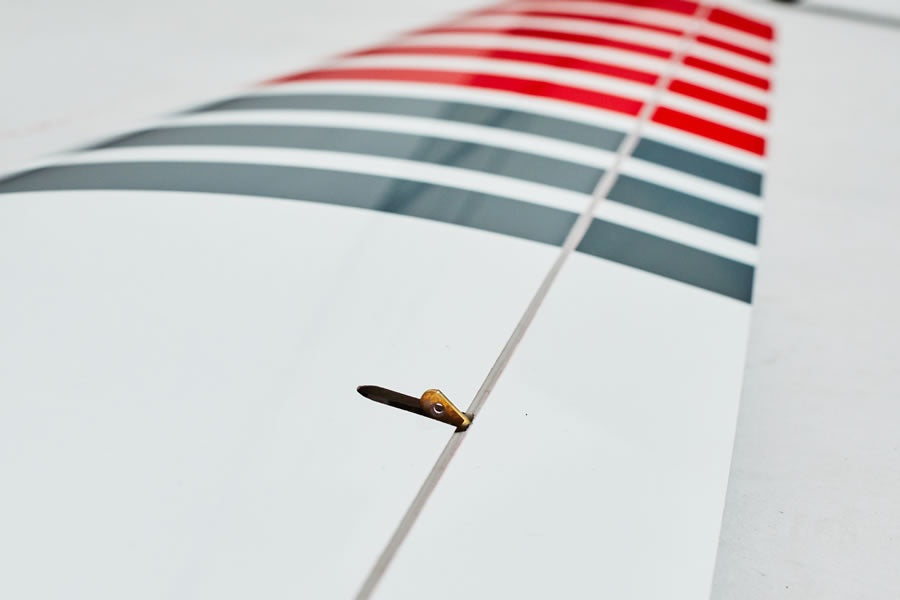

• Control horns mounted on the wings
• Incl. linkages and rods

Technical data:

• Wingspan: 4000 mm
• Fuselage length: 1750 mm
• Airfoil: HQ-W3/11
• Wing area: 75.5 dm²
• Weight including electronics approx.: 5970g
• Flying weight including trim lead approx.: 6770g

Required accessories:

• Rudder servos: 1x D-Power REX-6180SG HV Coreless Servo
• Elevator servos: 1x D-Power REX-4180SG HV Coreless Servo
• 1x servo extension (approx. 130cm) for the elevator
• Aileron servos: 2x D-Power REX-265SG HV Coreless Servo
• Flap servos: 2x D-Power REX-265SG HV Coreless Servo
• Receiver power supply: D-Power Antares UBEC 8A Power Box
• Receiver battery: D-Power HD-4000 2S Lipo (7.4V) 30C
• Airbrakes: D-Power electric airbrakes 300mm (optional)
• Towing clutch: optional
• Trim lead
