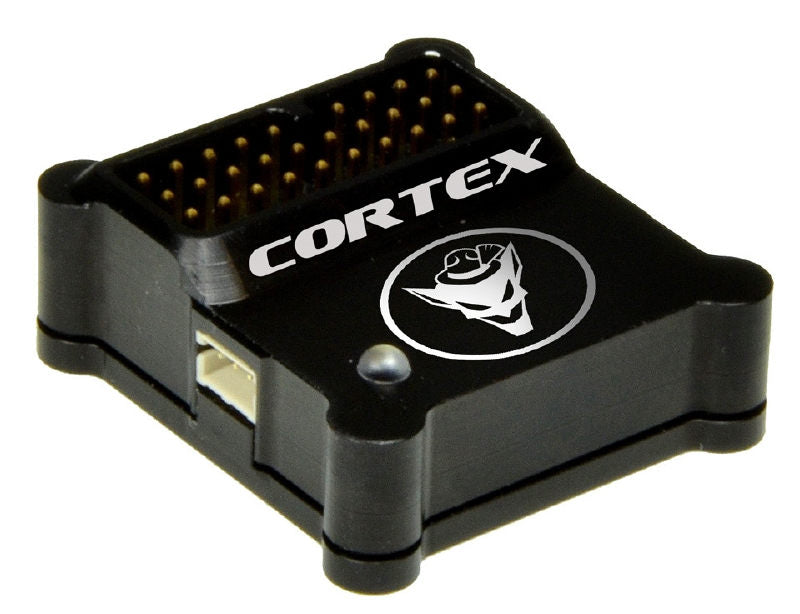

Bavarian Demon Cortex without PC cable, surface stabilization system, CAPTRON # 94947

The CORTEX surface gyro makes flying possible even in strong winds. The proven bavarianDEMON 3-axis stabilization corrects irregularities in flight behavior every 0.002 seconds, ensuring absolute calm, stability, and precision.

Its versatile applications, from park flyers to 3D aerobatic models, and even scale models or turbine jets, make the CORTEX surface gyro an absolute all-rounder in the model aircraft market!

Thanks to its "Ready to Run" feature, the CORTEX is ready for immediate use. Simply teach in existing signals such as servo travels, control functions, and mixer settings using the sticks and start flying. If additional software configurations are desired, these can be made on a PC or notebook.

Another special feature of the CORTEX surface gyro is its 5 servo channels, which can be assigned separately, for example, 2 ailerons, 2 elevators and a rudder, or a setup with 4 ailerons and one elevator for large gliders.

Overall, a must-have for every pilot of a fixed-wing model.

FACTS:

• Easy to Run – simplest programming by stick input

• No PC required

• Supports all common wing and tail types including canards, thrust vectoring, and much more.

• Supports:

  • 2 ailerons

  • 2 elevators

  • 1 rudder

• Supports various receiver systems:

  • S.Bus (input)

  • Spektrum/JR satellites (up to 2 units)

  • Jeti/PWM/PPM sum signal

  • Conventional receivers

• Online updateable

Scope of delivery:

• CORTEX surface gyro

• Adhesive pads

• Connection cable harness to receiver

• Jumper for programming

• Quick-Start Guide manual

Technical data:

Operating voltage: 4...10 V

Weight: approx. 18 g

Dimensions: 36 x 34 x 14mm

Maximum servo currents: Total 10 A continuous
