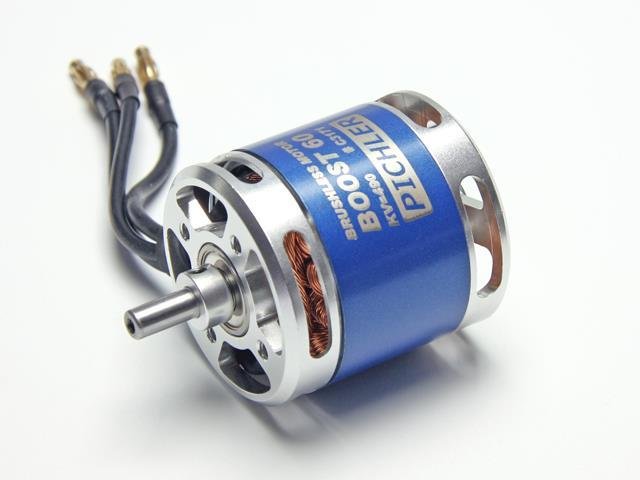

BOOST 60 V2 Brushless Combo, RPM/V 490, Pichler #17022
Prices incl. VAT unless stated otherwise. For 1 unit of this item.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
-
BOOST 60 V2 Brushless Combo, RPM/V 490, Pichler #17022
Brushless Motor Combo BOOST 60 V2
KV 490, Pichler #17022
High-quality brushless motor BLDC (outrunner) for model aircraft. The BOOST motor series is the result of our over 15 years of experience in modern electric drives.
Product features:
- Highest manufacturing quality
- Perfect ventilation through open housing design
- Use of the best materials
- High-temperature resistant neodymium magnets
- Extra large quality ball bearings
Application area - Model/Take-off weight:
- 3D aerobatic models up to approx. 3000g
- Aerobatic models up to approx. 3500g
- Trainers up to approx. 4000g
- Gliders up to approx. 4500g
Technical data:
- Dimensions: Ø = 50mm / L = 51mm
- Weight: 345g
- Motor shaft: Ø 6.0mm / internal thread M3
- Number of poles: 14
- LiPo battery / number of cells: 3 -6 cells
- No-load speed per volt (KV): 490 RPM-1
- Max. load: 55A (30s)
Propeller recommendation:
- 16x8 @ 3S LiPo (11.1V)
- 15x8 @ 4S LiPo (14.8V)
- 14x7 @ 5S LiPo (18.5V)
- 13x10 @ 6S LiPo (22.2V)
Scope of delivery:
- BOOST 60 Brushless Motor
- Brushless ESC PICHLER XQ+ 65
- Aluminum mounting cross
- Propeller adapter for front/rear mounting
- Mounting screws
- Instructions German/English
