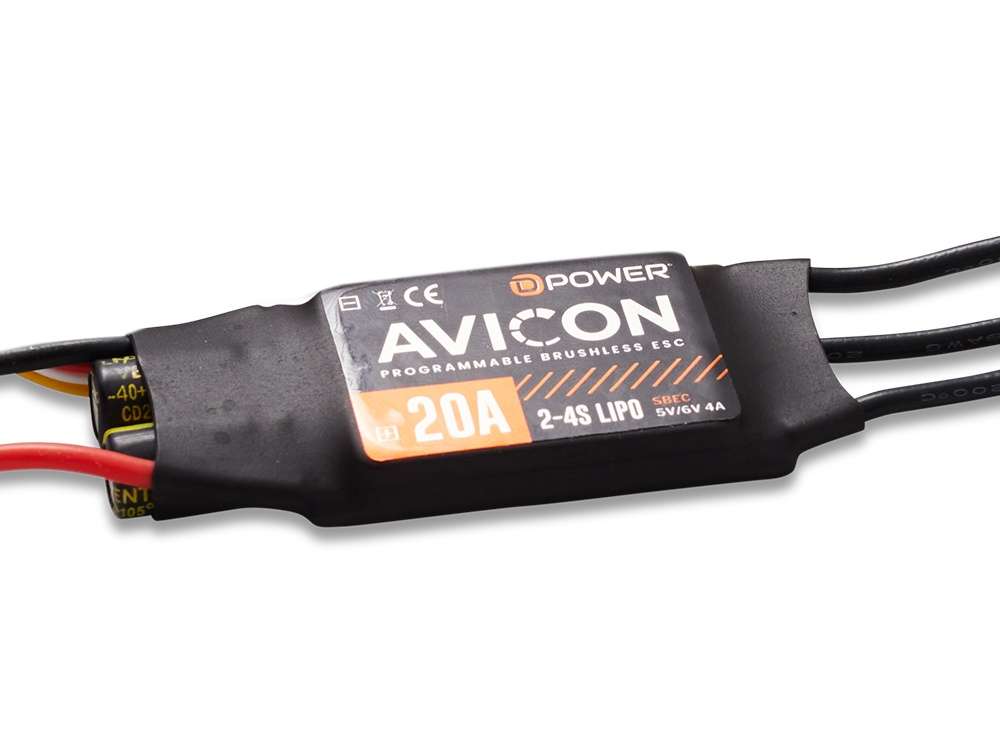

Brushless Controller AVICON, 20A, 2 - 4S, 5.0 - 6.0V / 4A S-BEC
D-Power # AC020

The AVICON series from D-Power is a brushless ESC series of the latest MOSFET generation and has been specially developed for model aircraft. Compact dimensions, a relatively low weight, convincing start-up and throttle linearity and extremely high reliability characterize this ESC series.
The AVICON controllers are equipped as standard with a powerful 32-bit microprocessor, which ensures strong computing power and ultra-fast processing rates. The controllers can be conveniently adjusted with the optional PROGCON programming card, as well as directly with the remote control.
The brushless controllers also support almost all motors with high speeds, as is common today.

Features:

• Powerful next-generation MOSFETs with low heat signature, high peak current threshold and high reliability
• powerful 32-bit microprocessor
• Super smooth starting and throttling over the entire power range
• Extremely low internal resistance
• High efficiency and great energy saving
• Adjustable SBEC output voltage (5V/6V)
• Multiple protection protocols: startup, overheating, undervoltage shutdown, signal loss, phase loss, etc.
• Fully programmable via the optional D-Power PROGCON LCD programming card

Thrust reversal at the touch of a button

The SMR function on the controller must be switched on. Afterwards, the fourth pin of the servo cable can be plugged into a free slot on the receiver. If the channel is actuated by a switch, the motor rotates in reverse.

Attention: the throttle position must be below 50%. The function may only be used on the ground for braking - never in the air. Otherwise there is a risk that the controller will burn out and the model will be lost.
