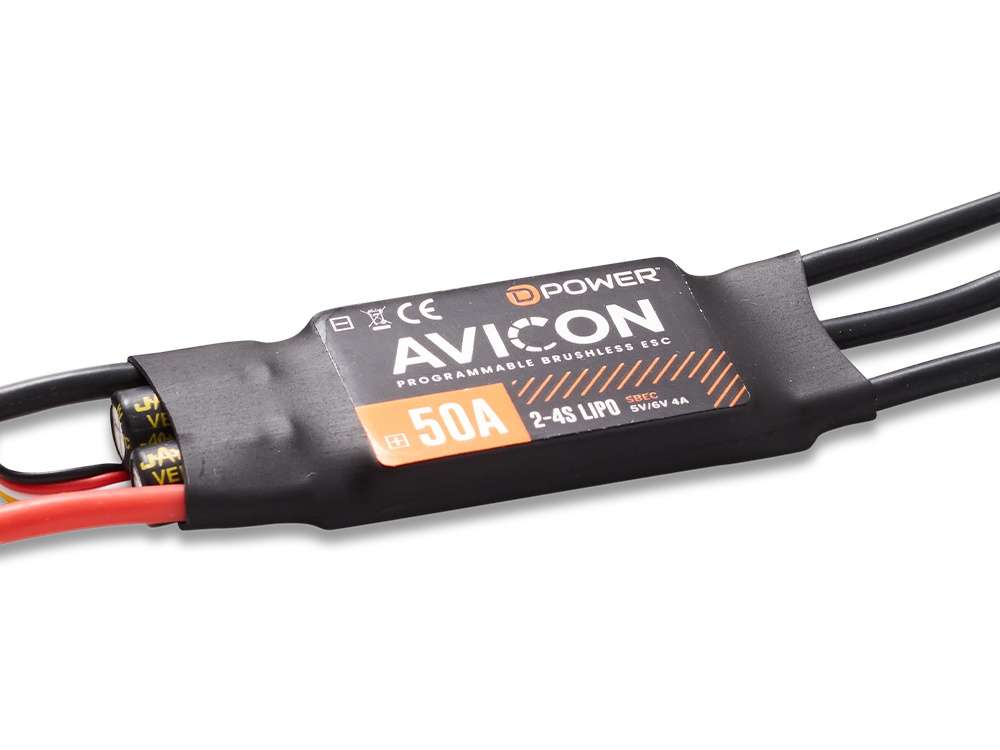

Brushless Controller AVICON, 50A, 2 - 4S, 5.0 - 6.0V / 4A S-BEC, D-Power # AC050
Brushless ESC AVICON, 50A, 2 - 4S, 5.0 - 6.0V / 4A S-BEC
D-Power # AC050
The AVICON series from D-Power is a brushless ESC series of the latest MOSFET generation and was specially developed for model aircraft. Compact dimensions, a relatively low weight, convincing start-up and throttle linearities, and extremely high reliability characterize this ESC series.
AVICON ESCs are standardly equipped with a powerful 32-bit microprocessor, which ensures strong computing power and ultra-fast processing rates. The ESCs can be conveniently set with the optional PROGCON programming card, as well as directly with the remote control.
The brushless ESCs also support almost all motors with high speeds, as is common today.
Features:
- Powerful next-generation MOSFETs with low thermal signature, high peak current threshold, and high reliability
- Powerful 32-bit microprocessor
- Super smooth start-up and throttling over the entire power range
- Extremely low internal resistance
- High efficiency and great energy saving
- Adjustable SBEC output voltage (5V/6V)
- Multiple protection protocols: start-up, overheating, undervoltage shutdown, signal loss, phase loss, etc.
- Fully programmable via the optional D-Power PROGCON LCD programming card
Thrust Reversal at the Touch of a Button
The SMR function on the ESC must be switched on. After that, the fourth pin of the servo cable can be plugged into a free slot on the receiver. If the channel is operated via a switch, the motor will rotate in reverse.
Caution: the throttle position must be below 50%. The function may only be used on the ground for braking - never in the air. Otherwise, there is a risk that the ESC will burn out and the model will be lost.
