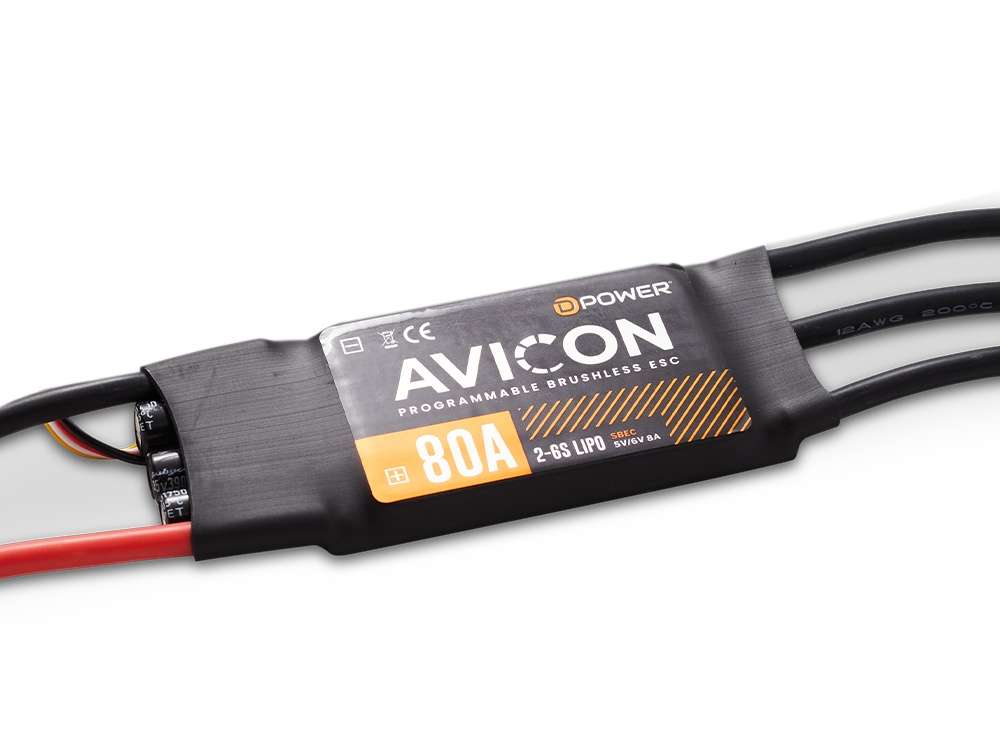

Brushless Controller AVICON, 80A, 2 - 6S, 5.0 - 6.0V / 8A S-BEC
D-Power # AC080

The AVICON series from D-Power is a brushless ESC series of the latest MOSFET generation and was specially developed for model aircraft. Compact dimensions, a relatively low weight, convincing start-up and throttle linearity, and extremely high reliability characterize this ESC series.
AVICON controllers are equipped with a powerful 32-bit microprocessor as standard, which ensures strong computing power and ultra-fast processing rates. The controllers can be conveniently set with the optional PROGCON programming card, as well as directly with the remote control.
The brushless ESCs also support almost all motors with high speeds, as are common today.

Features:

• High-performance next-generation MOSFETs with low thermal signature, high peak current threshold, and high reliability
• powerful 32-bit microprocessor
• Super smooth starting and throttling over the entire power range
• Extremely low internal resistance
• High efficiency and great energy saving
• Adjustable SBEC output voltage (5V/6V)
• Multiple protection protocols: start-up, overheating, undervoltage shutdown, signal loss, phase loss, etc.
• Fully programmable via the optional D-Power PROGCON LCD programming card

Thrust reversal at the touch of a button

The SMR function on the controller must be switched on. After that, the fourth pin of the servo cable can be plugged into a free slot on the receiver. If the channel is operated via a switch, the motor rotates in reverse.

Caution: the throttle position must be below 50%. The function may only be used on the ground for braking - never in the air. Otherwise there is a risk of the controller burning out and the model being lost.
