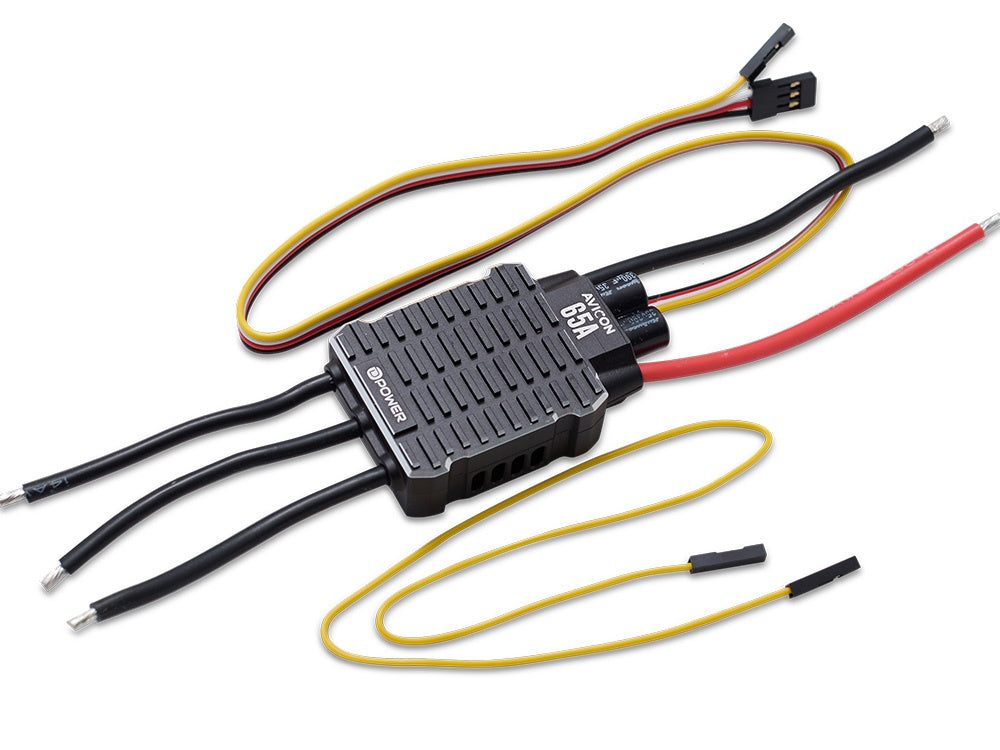

Brushless ESC AVICON PRO, 65A, 3-6S, 6-8.4V / 10A S-BEC, D-Power # AC065PLV
Brushless ESC AVICON PRO, 65A, 3-6S, 6-8.4V / 10A S-BEC
D-Power # AC065PLV
The AVICON PRO brushless ESC series from D-Power is equipped with a powerful 32-bit microprocessor, which provides strong computing power and ultra-fast processing rates, as well as smooth motor operation for brushless motors with up to 40 poles.
Functions such as telemetry can be set directly via Futaba transmitters. The AVICON PRO ESC provides extensive telemetry data such as battery voltage, RPM, and the ESC temperature for Futaba transmitters.
The ESCs were specially developed for fixed-wing aircraft models and helicopters. Compact dimensions, a relatively low weight, convincing startup and throttle linearity, and extremely high reliability characterize this ESC series.
The AVICON PRO ESCs are available with 65A, 125A, and 130A.
Features
- High-performance brushless ESC with 32-bit technology
- Next-generation MOSFETs with low thermal signature, high peak current threshold, and high reliability
- Telemetry for Futaba remote controls
- Adjustable control parameters in helicopters
- Adjustable parameters on the transmitter for Futaba
- Parameters adjustable via PROGCON programming card or transmitter
- Fixed-wing and helicopter mode
- Rotation direction, timing, battery type, freewheel, startup current, and other parameters adjustable
- Integrated electronic anti-spark circuit
- Extremely low internal resistance
- High efficiency and great energy saving
- Upon power-on, a self-test checks motor, throttle position, and voltage
- Optimal cooling
Technical data:
- Continuous current: 65A
- Short-term current: 85A
- Number of LiPo cells: 3-6S
- BEC output: 6.0, 7.4, 8.4V (adjustable) / 10A
- Dimensions: 60 x 34 x 22mm
- Weight: 55g
