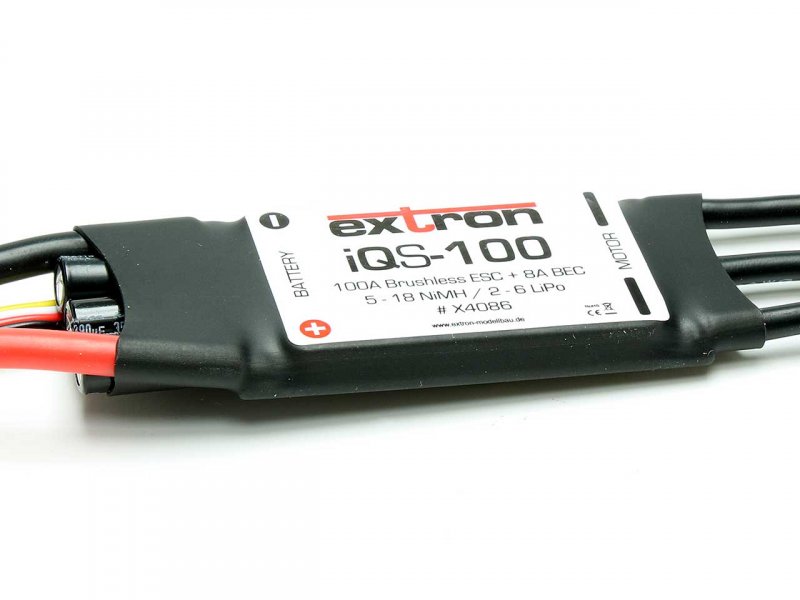

Brushless ESC iQS 100, 100/120A, 2-6 LiXX, BEC 5/6V, 8A, Pichler # X4086
Brushless Controller iQS 100, 100/120A, 2-6 LiXX
BEC 5/6V, 8A, Pichler # X4086
NEW! With forward/reverse function (switchable via transmitter)
Extron iQS Brushless controllers impress with their high quality, performance, and reliability. They are a perfect match for all commercially available brushless motors (outrunners or inrunners) and are, of course, also the first choice for Extron brushless motors. Either LiPo, NiMH, or NiCD batteries can be used. The cell count is automatically detected by the controller. Thanks to the use of modern, high-quality SMD components, the internal resistance of the controllers is particularly low. The high clock frequency enables high-resolution and sensitive control behavior.
Highly flexible and temperature-resistant silicone cables underline the high quality.
Adjustable functions:
- Brake (off / soft / medium / hard)
- Motor direction (forward / reverse)
- Battery type (LiPo / NiMH / NiCD)
- Cut-off mode - motor operation (reduced power = 70%, OFF)
- Cut-off voltage for LiPo (3.0V / 3.2V / 3.4V / 3.6V)
- Cut-off voltage for NiMH / NiCD (50% / 60%)
- Heli mode / Governor (RPM OFF / Mode 1 / Mode 2)
- Start behavior (standard / soft / very soft)
- Timing (AUTO / low 5° / medium 15° / high 25°)
- SMR function (ON/OFF)
- SR function (On/Off)
- BEC adjustable (5V or 6V, default setting = 5V)
Product features:
- Pre-assembled with yellow XT90 connector and 4.0mm gold connectors (no soldering required)
- 32-bit processor
- Extremely sensitive control behavior
- Selected, high-quality MOSFET transistors
- Powerful, integrated BEC receiver power supply
- Easy to adjust with optional programming box
- Completely pre-set at the factory
- Proven top quality
- Maximum reliability
