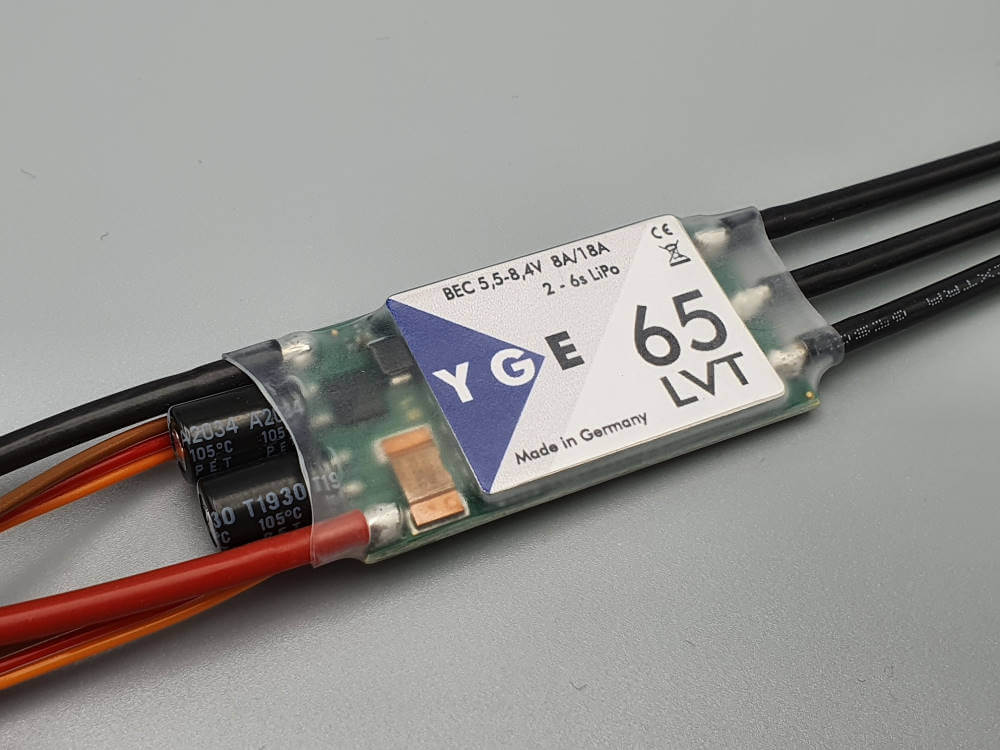

Brushless ESC YGE 65 LVT with adjustable BEC and Telemetry

The -T- in the designation of the YGE-65LVT stands for telemetry. Currently, the following protocols are supported:

• Graupner HoTT V4
• Jeti ExBUS
• Multiplex Sensor BUS V2
• Proprietary YGE protocol for further telemetry connections via, for example, S32 (new Jlog from R² Prototyping). Further protocols are in preparation.

Thanks to the optionally available USB adapter, the 65LVT can be extensively adjusted and new updates can be uploaded. During operation, the PWM frequency is always automatically adapted to the needs of the motor and is therefore always optimal. With the new sine wave startup of the 65LVT, the startup behavior is now SUPERSOFT. The heavy-duty (8/18A) and adjustable BEC (5.5 to 8.4V) complement the outstanding features of the YGE-65LVT.

Description:

• The specified current is the maximum continuous full throttle current with good cooling.
• 2 to 6s LiPo, regulation or shutdown at undervoltage.
• BEC - Undervoltage detection can be switched off.
• Current limiting
• Speed control (Governor mode).
• Soft start.
• Active freewheeling, therefore unlimited partial load capability.
• Automatic timing, or adjustable in 6 steps.
• EMK brake adjustable.
• F3A / Acro brake (brake strength continuously adjustable in flight).
• Min. and Max values are logged and can be displayed after the flight in the optional PC tool (e.g., current).
• Speed limit: 240,000 rpm (2-pole).
• Overtemperature / overload warning.
• Anti-spark: Reduces the switch-on spark.
• Basic programming via mode setup.
• Fine adjustment and selection of the telemetry protocol via PC setup, suitable USB adapter is optionally available.
