Central Box 210, DUPLEX 2.4EX, Hacker # 80001670

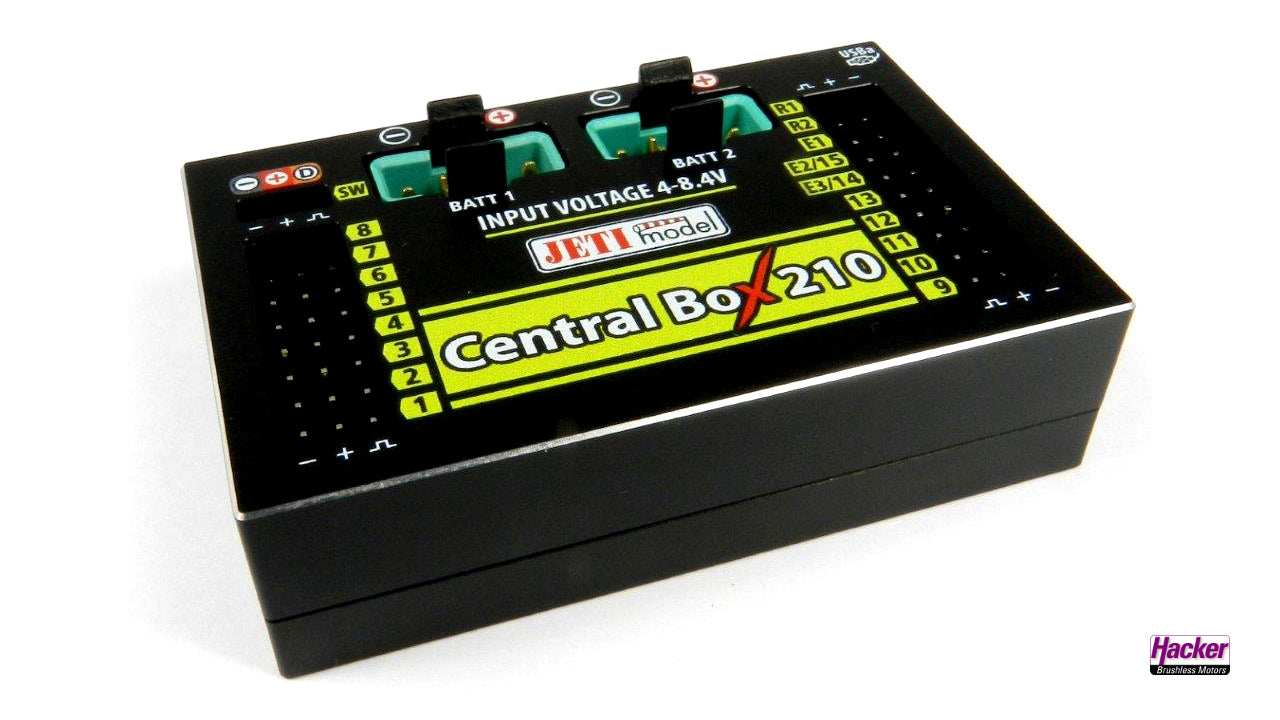

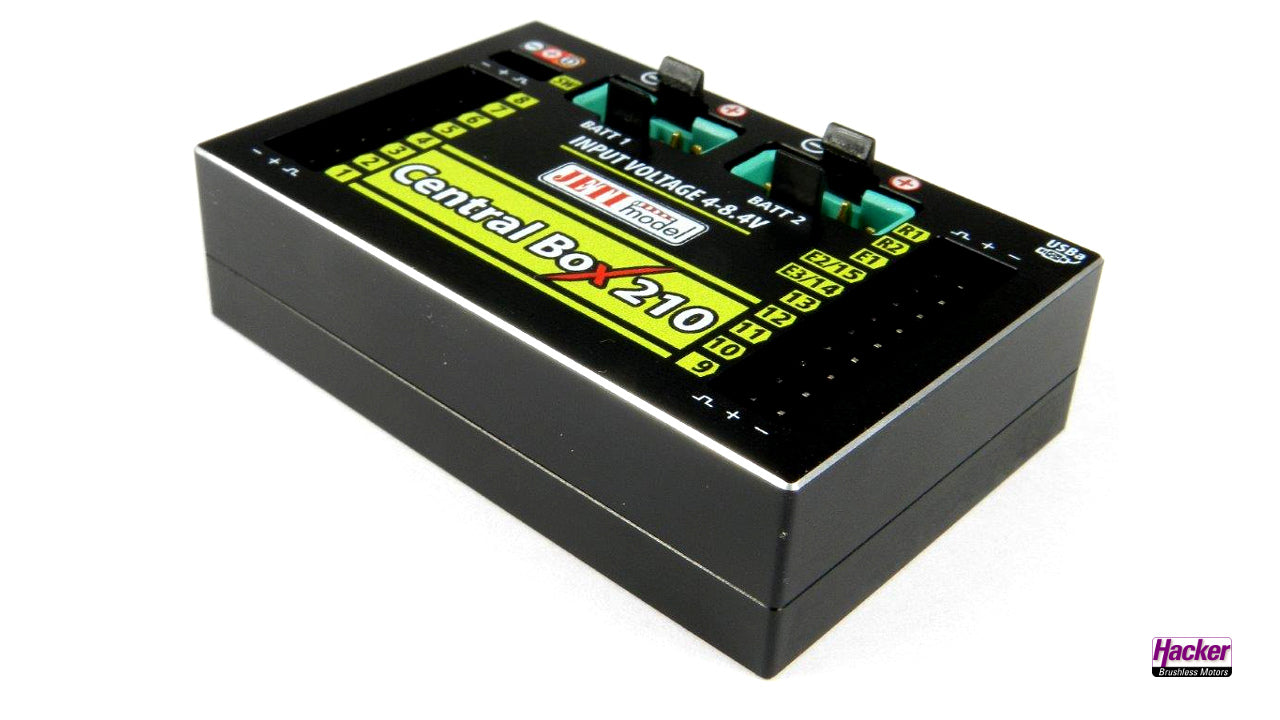

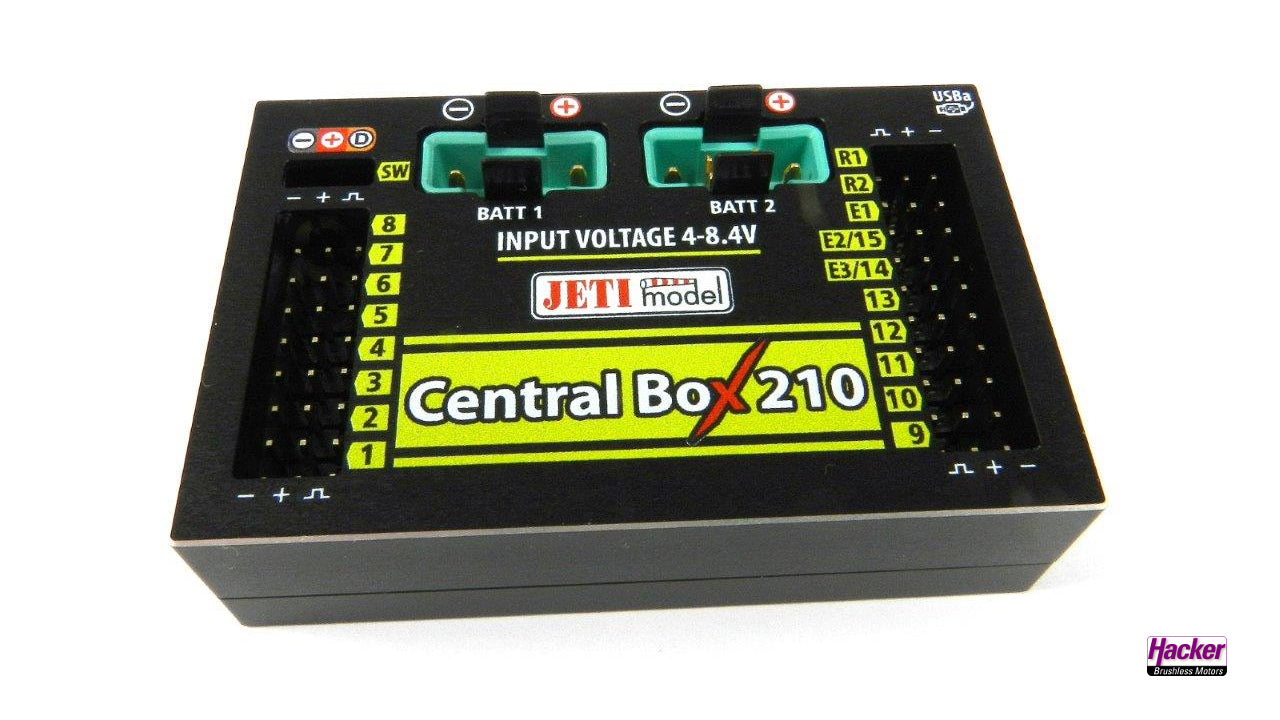

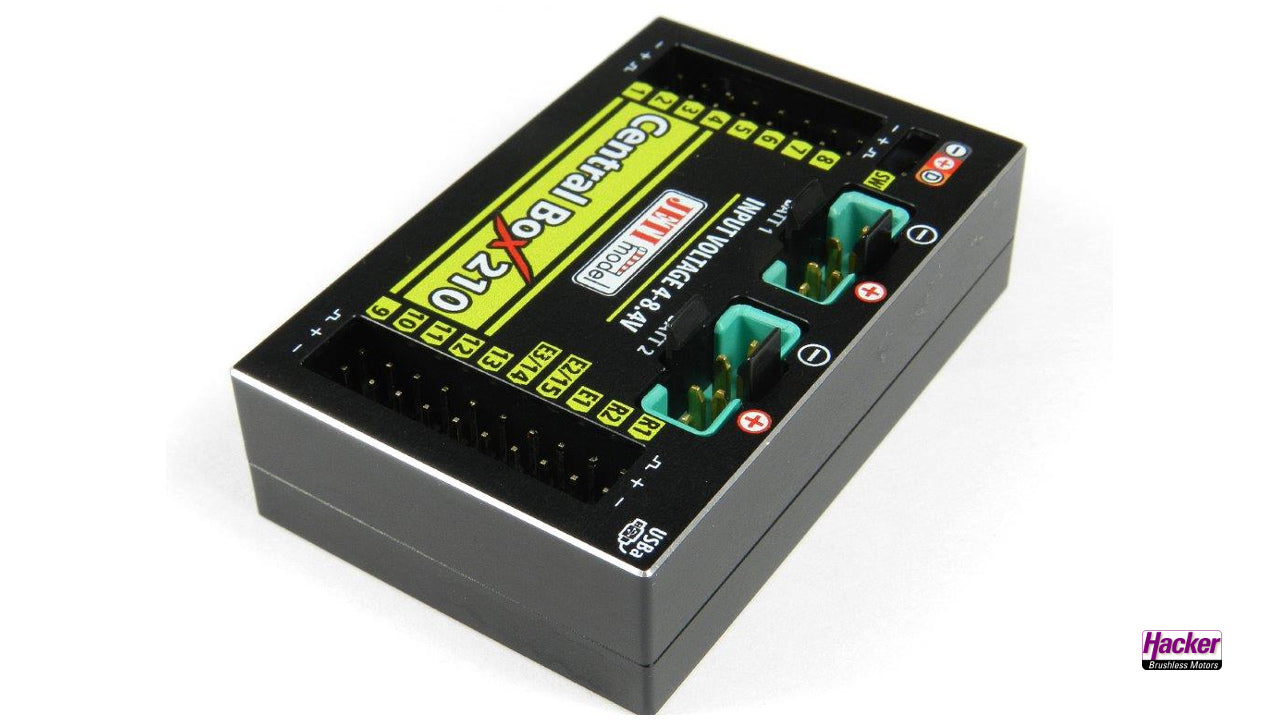

Central Box 210, JETI Duplex 2.4EX
Hacker # 80001670
Product description and features
The Central Box 210 is the successor to the popular Central Box 200. An aluminum housing was used for the Central Box 210, especially for the use of powerful and power-hungry servos, and the overcurrent protection for the servo slots was omitted. The Central Box 210 offers true battery redundancy, DITEX servo telemetry, JETI EX telemetry and up to three receiver inputs (2x 2.4GHz and 1x 900MHz) for complete power and RF signal redundancy.
With JETI Duplex DC/DS transmitters, the full potential of the Central Box 210 can be exploited. The entire configuration of the servo outputs, DITEX servo and JETI EX telemetry, function assignment, etc. can be easily carried out via the device overview of the JETI Duplex DS/DC transmitter.
The Central Box 210 is switched on and off using the supplied magnetic switch. For example, 2 RSat2 or REX3 receivers can be used. Optionally, a REX Assist receiver can be used together with an RSat2 receiver, thus obtaining a Central Box with gyro stabilization.
Properties
- Configurable servo outputs
- Battery connections 2x MPX plug system
- Robust aluminum housing for additional cooling and protection
- Firmware updatable via JETI USB adapter and JETI Studio
- Wireless programming via the device overview of the DC/DS transmitters
- Up to 3 independent receiver inputs (R1, R2, E1/R3)
- Up to 15 servo slots (suitable for DITEX servo telemetry)
- Up to 3 telemetry sensor inputs (E1/R3, E2/15, E3/14)
- Input for supplied magnetic switch or optional RC switch

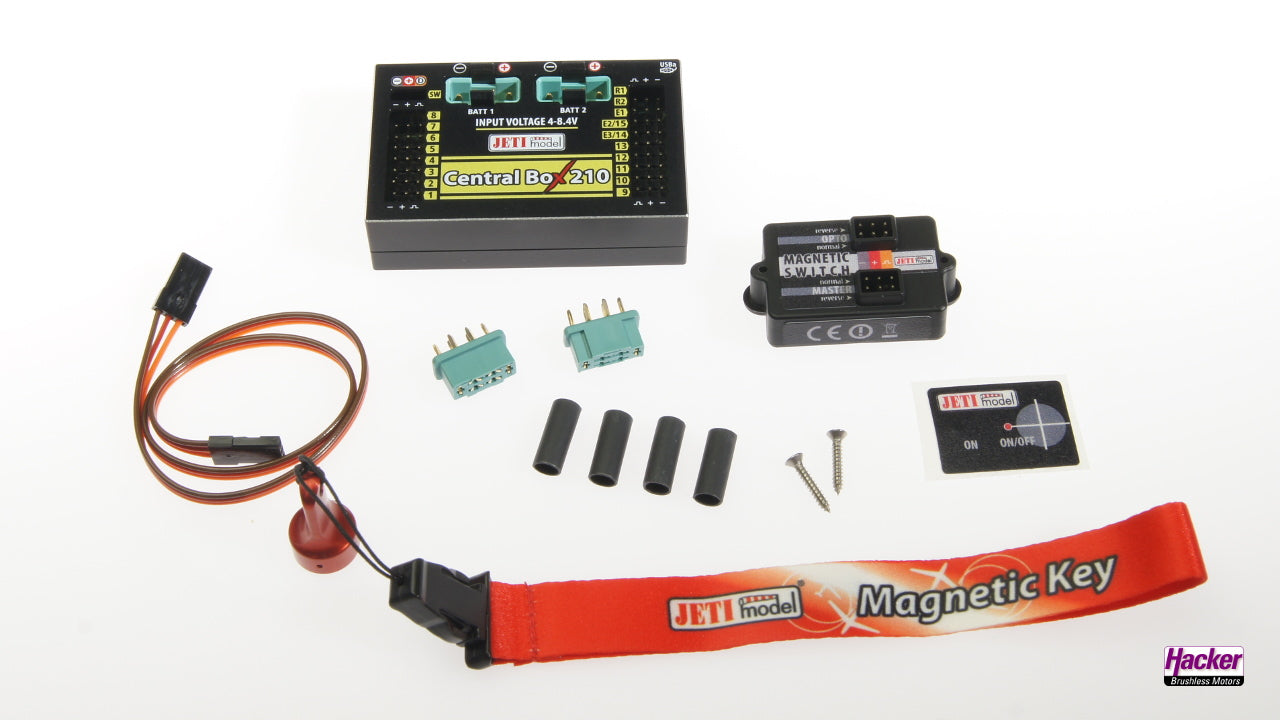

Scope of delivery
- 1 JETI Duplex 2.4EX Central Box 210
- 1 magnetic switch
- 1 magnetic key
- 1 patch cable
