Central Box 220 incl. 2x Rsat2, DUPLEX 2.4EX, Hacker #80001679
JETI Duplex 2.4EX Central Box 220 incl. 2 RSat2
Product Description and Features

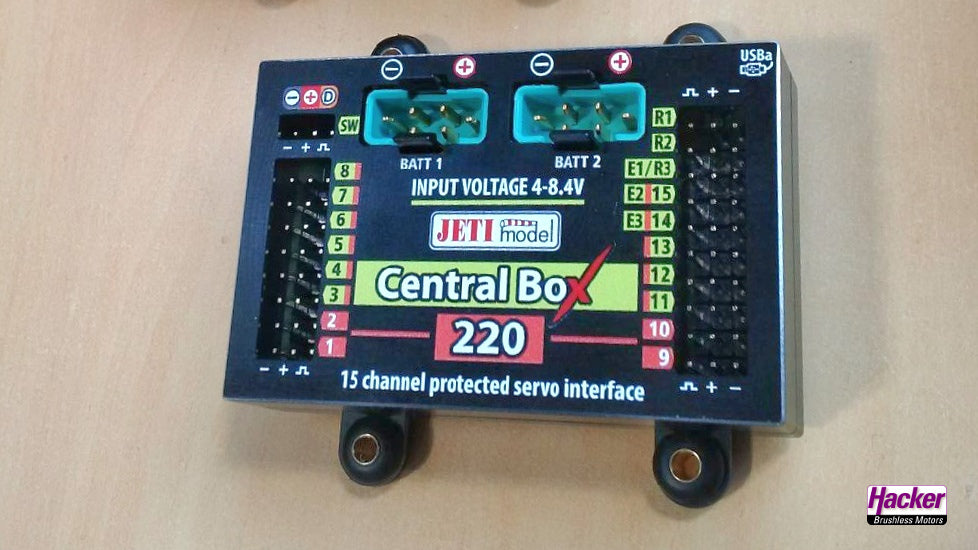

The Central Box 220 is the successor to the popular Central Box 200. Especially for use with powerful and power-hungry servos, an aluminum housing was used for the Central Box 220, and the overcurrent protection for the servo slots was reinforced. The Central Box 220 offers true battery redundancy, DITEX servo telemetry, JETI EX telemetry, and up to three receiver inputs (2x 2.4GHz and 1x 900MHz) for complete power and RF signal redundancy.
Configuration via JETI Duplex DS/DC Transmitters
With JETI Duplex DC/DS transmitters, the full potential of the Central Box 220 can be utilized. The entire configuration of servo outputs, DITEX servo and JETI EX telemetry, function assignment, etc., can be easily performed via the device overview of the JETI Duplex DS/DC transmitter.
Power On and Off Procedure
The power on and off procedure for the Central Box 220 is performed using the included magnetic switch.
Recommended Receivers
Two compatible RSat2 receivers are included in the scope of delivery. Optionally, the use of a REX Assist receiver together with an RSat2 receiver is possible, resulting in a Central Box with gyro stabilization.
Features
- Configurable servo outputs
- Protected servo outputs (max. current 11x 10A and 4x 30A)
- Battery connectors 2x MPX plug system
- Robust aluminum housing for additional cooling and protection
- Firmware updatable via JETI USB adapter and JETI Studio
- Wirelessly programmable via the device overview of the DC/DS transmitters
- Up to 3 independent receiver inputs (R1, R2, E1/R3)
- Up to 15 servo slots (suitable for DITEX servo telemetry)
- Up to 3 telemetry sensor inputs (E1/R3, E2/15, E3/14)
- Input for included magnetic switch or optional RC-Switch

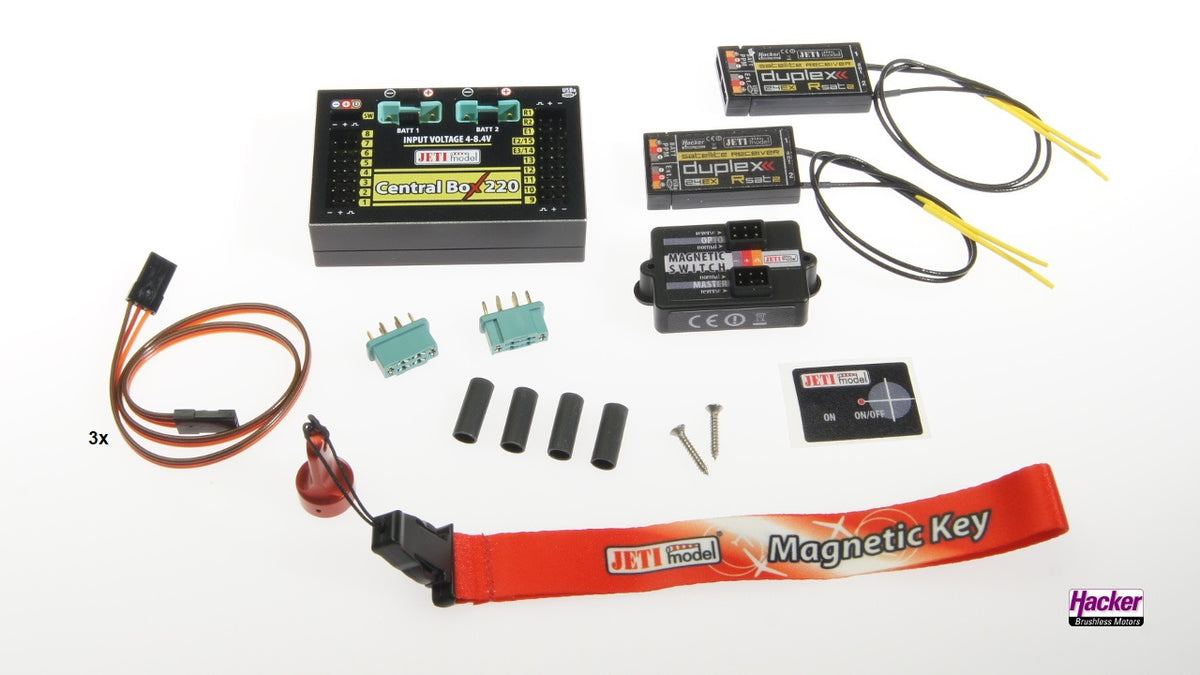

Scope of Delivery
- 1 JETI Duplex 2.4EX Central Box 220
- 1 Magnetic switch
- 1 Magnetic key
- 2 JETI Duplex 2.4EX RSat2 receivers
- 3 Patch cables
