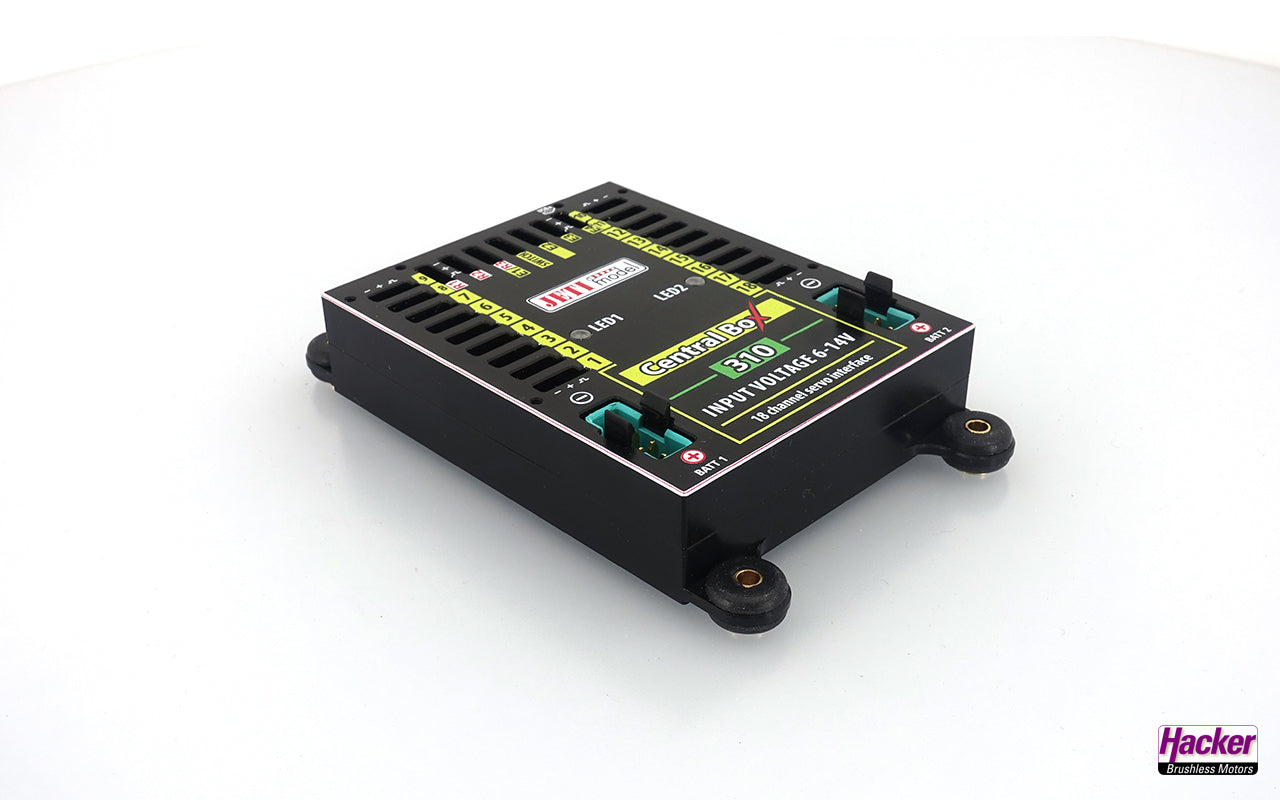

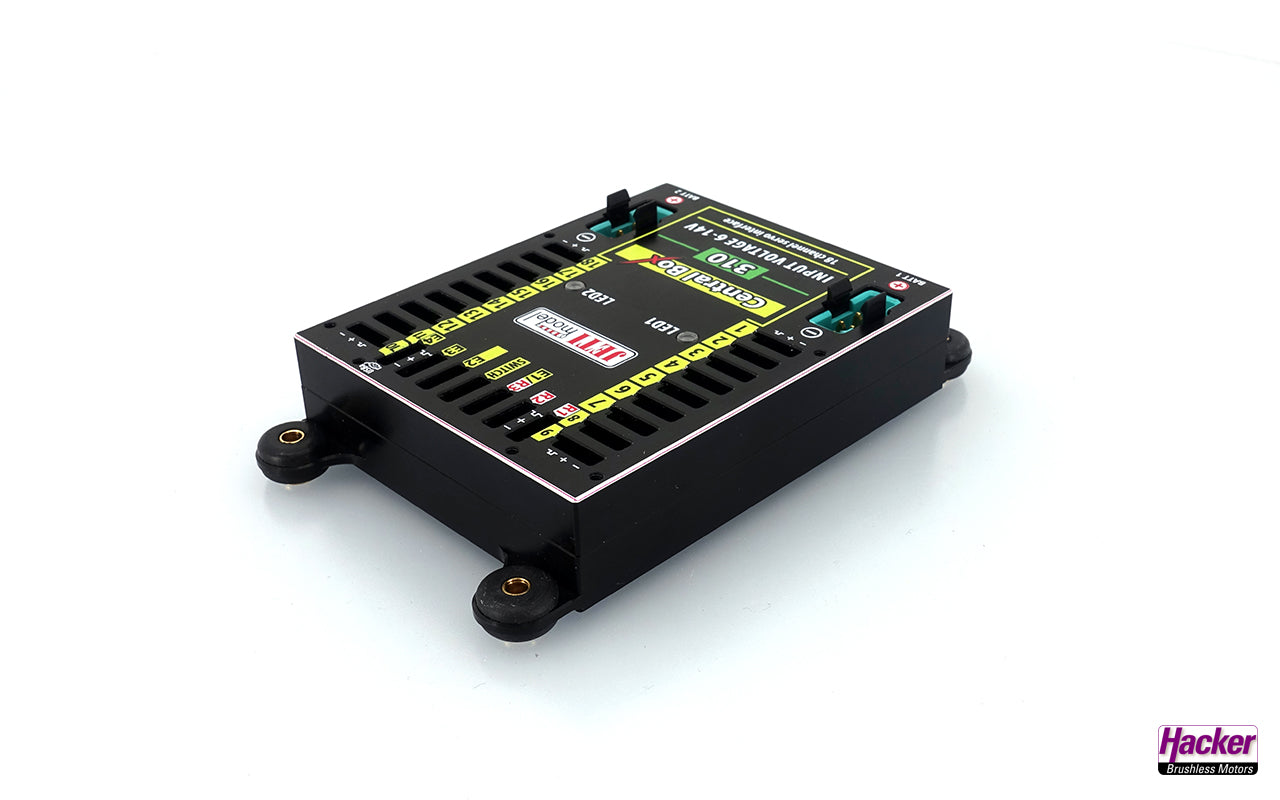

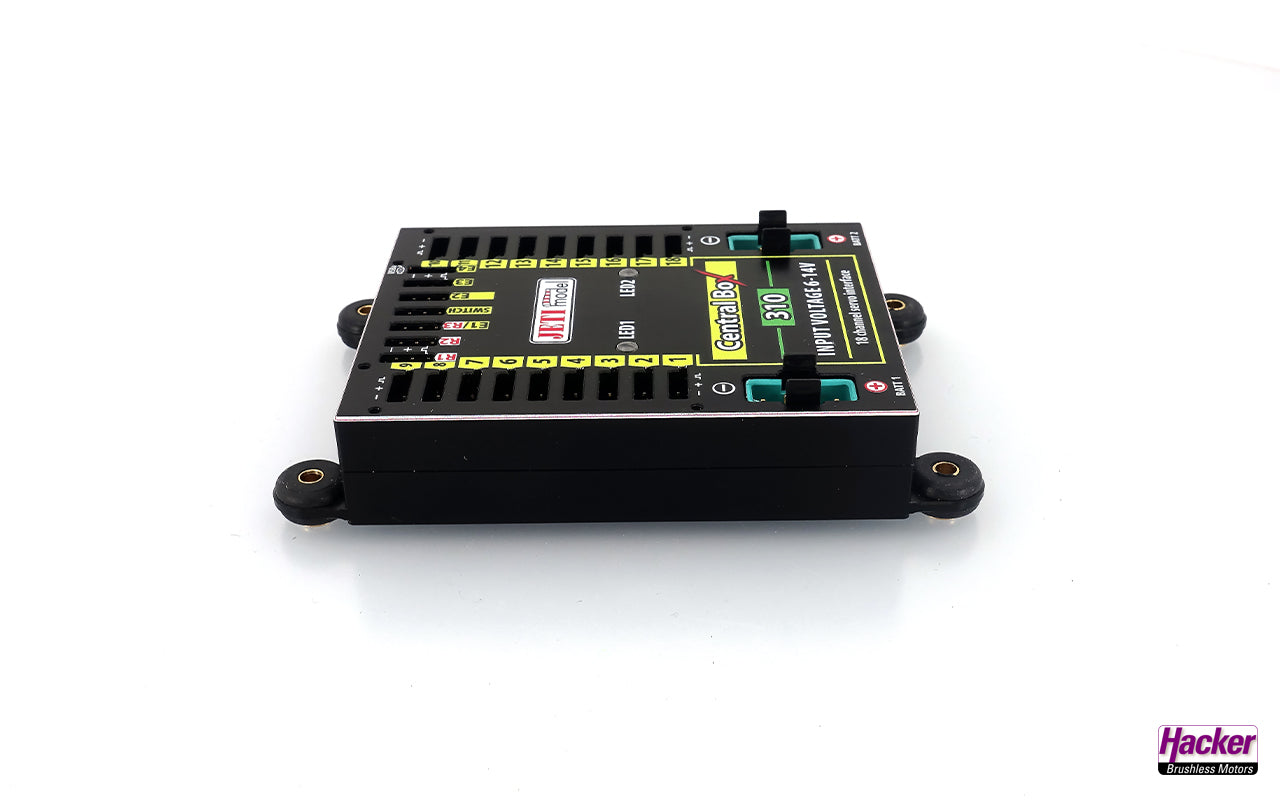

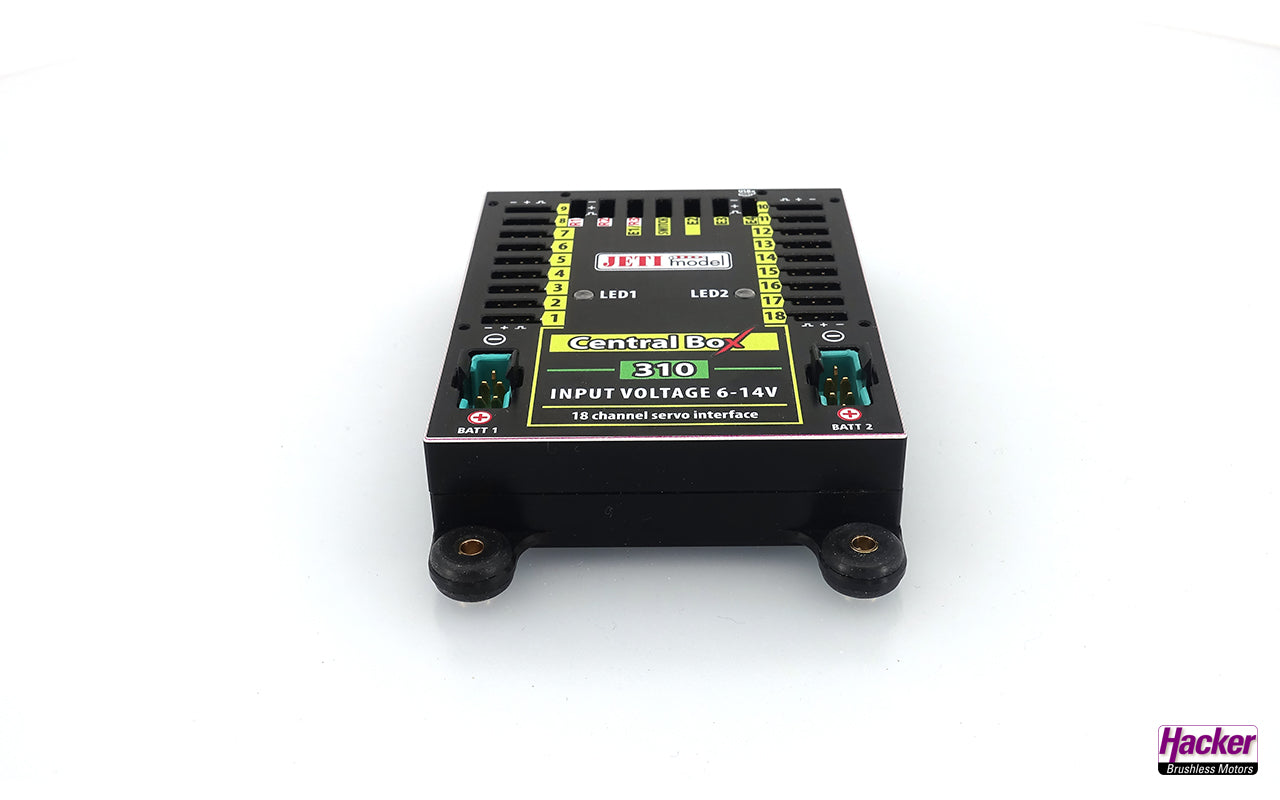

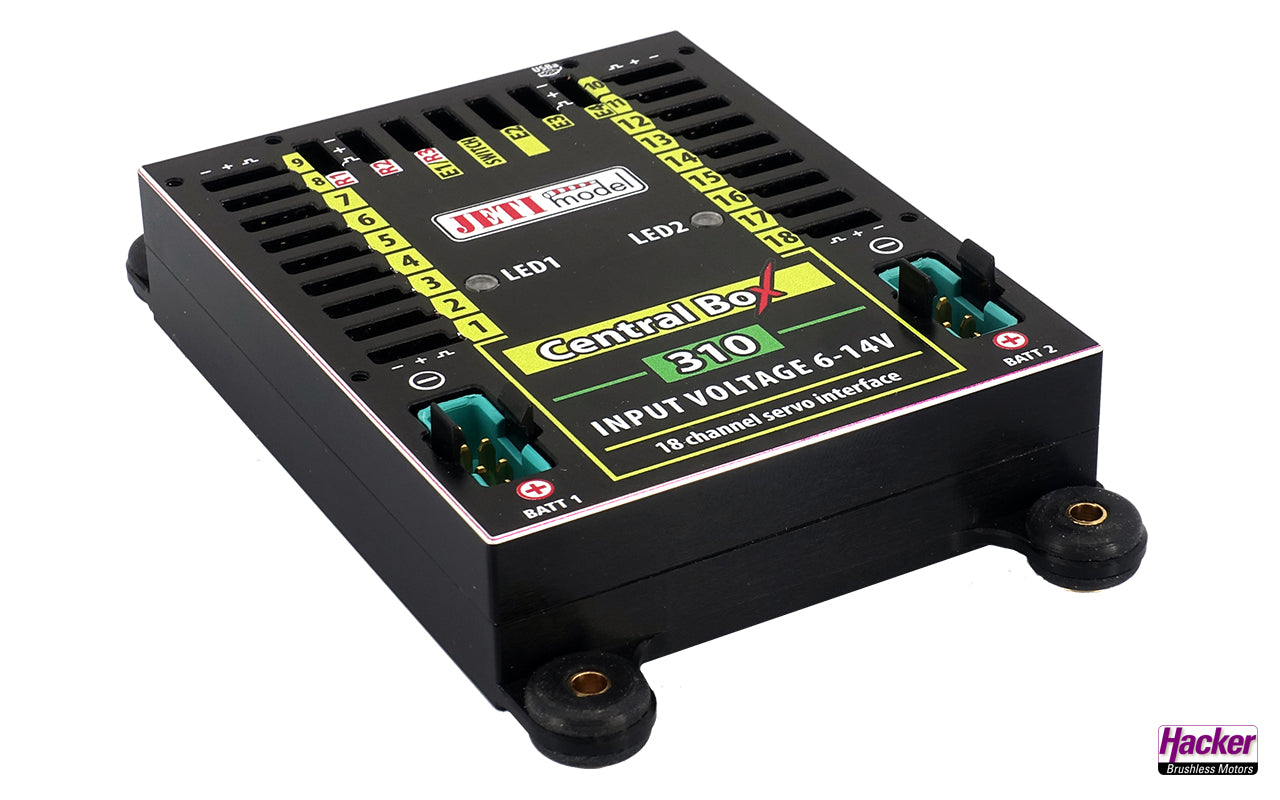

Central Box 310 incl. Magnetic Switch, Jeti-DUPLEX 2.4EX, Hacker # 80001700

Product Description and Features:

The Central Box 310 was designed for comprehensive management of multiple servos and two receiver batteries for models with high safety requirements. The Central Box 310 has full, undiminished power from the internal BEC to the servo outputs. Especially for the use of powerful and power-hungry servos, the Central Box 310 features an aluminum housing and dispenses with overcurrent protection for the servo slots. The Central Box 310 offers true battery redundancy, DITEX servo telemetry, JETI EX telemetry, and up to three receiver inputs (2x 2.4GHz and 1x 900MHz) for complete power and RF signal redundancy.

Configuration via JETI Duplex DS/DC Transmitters

With JETI Duplex DC/DS transmitters, the full potential of the Central Box 310 can be utilized. The entire configuration of servo outputs, DITEX servo and JETI EX telemetry, function assignment, etc., can be easily performed via the Device Overview of the JETI Duplex DS/DC transmitter.

Compatibility with Futaba S.Bus

The Central Box 310 can also be used with two S.Bus receivers (e.g., Futaba R7003SB). However, settings and reading of telemetry values must be performed via a separately available JETIBOX.

Switching On and Off:

The Central Box 310 is switched on and off using the included magnetic switch.

Recommended Receivers:

For example, 2 RSat2 or REX3 receivers can be used. Optionally, a REX Assist receiver can be used together with an RSat2 receiver, resulting in a Central Box with gyro stabilization.

Features:

• Adjustable high-performance BEC for voltage stabilization (connection of standard or HV servos)
• DITEX servo telemetry support
• Option to connect up to 3 receivers with serial communication
• Built-in expander function with the option of independent connection of up to four JETI EX sensors
• Input for magnetic switch or RC switch
• Power supply batteries connected via MPX connector
• 100Hz mode of servo outputs (10ms period)
• EX telemetry support (measurement of voltage, current, capacity, temperature, etc.)
• Easy setting changes via DC/DS transmitters (“Device Explorer”)
• Robust metal construction with mounting holes

Optional Overload Protection

The Central Box 310 does not include built-in overload protection for individual servo slots. To protect critical servos such as tow release, retractable landing gear, or spoiler servos, the optionally available overload protection DPSI OCP (Accessories tab) can be used.

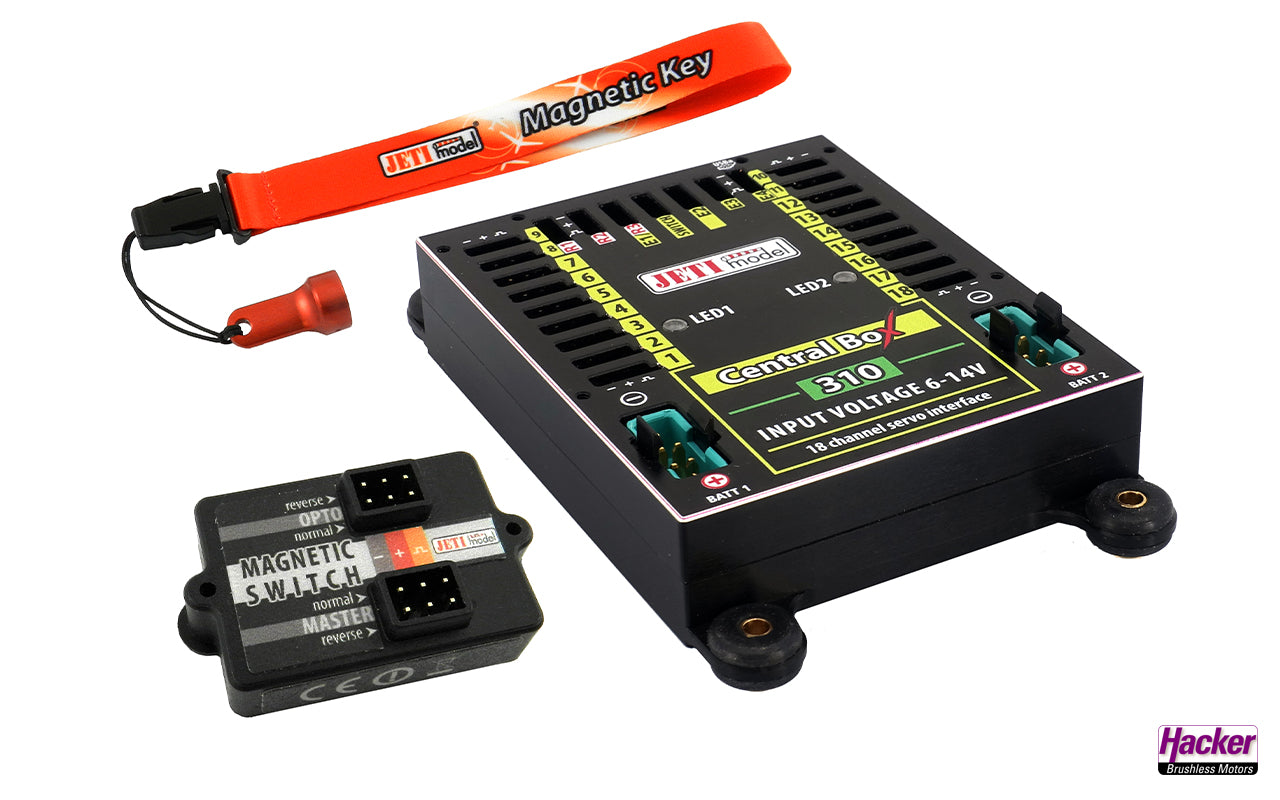

Scope of Delivery:

• 1 JETI Duplex 2.4EX Central Box 310
• 1 magnetic switch
• 1 magnetic key
• 1 patch cable
