Central Box 320 incl. Magnetic Switch, DUPLEX 2.4EX, Hacker # 80001702
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Central Box 320 incl. Magnetic Switch, DUPLEX 2.4EX, Hacker # 80001702
Central Box 320 incl. Magnetic Switch, DUPLEX 2.4EX, Hacker # 80001702
Product Description and Features

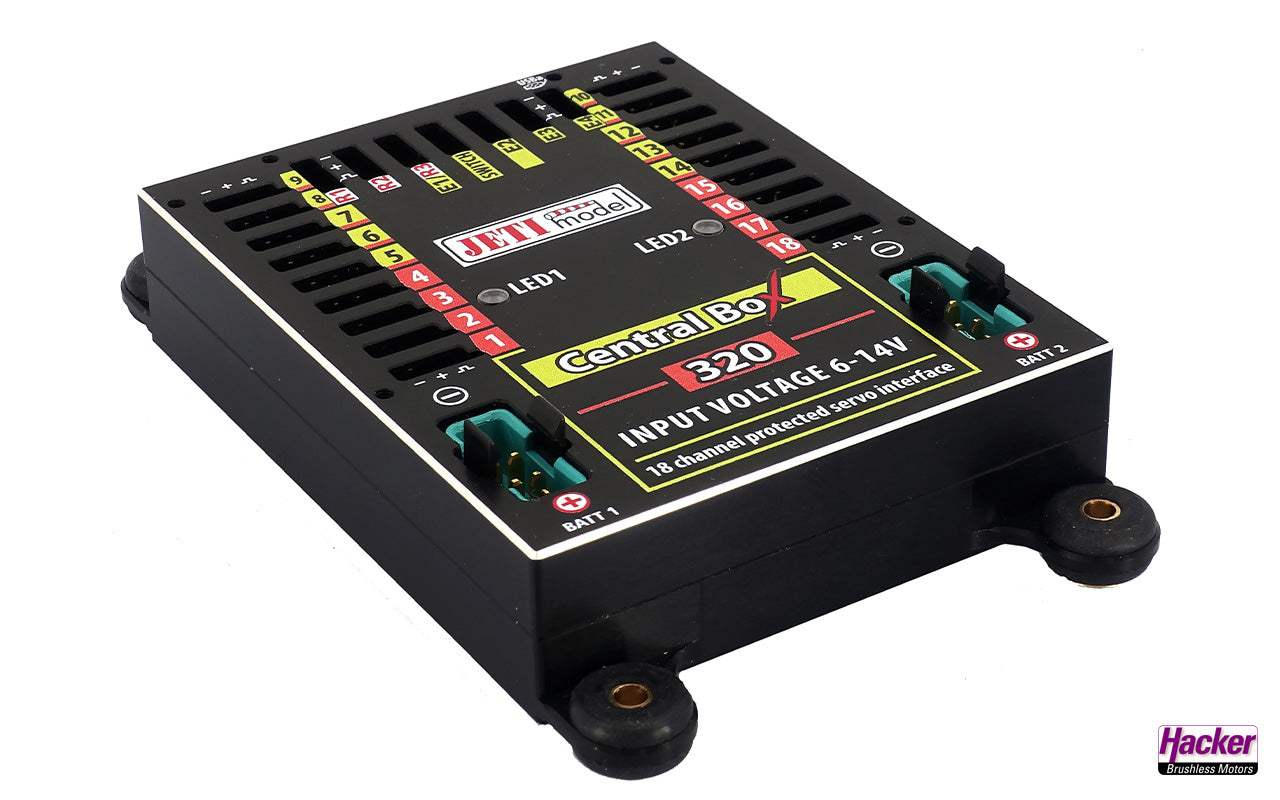

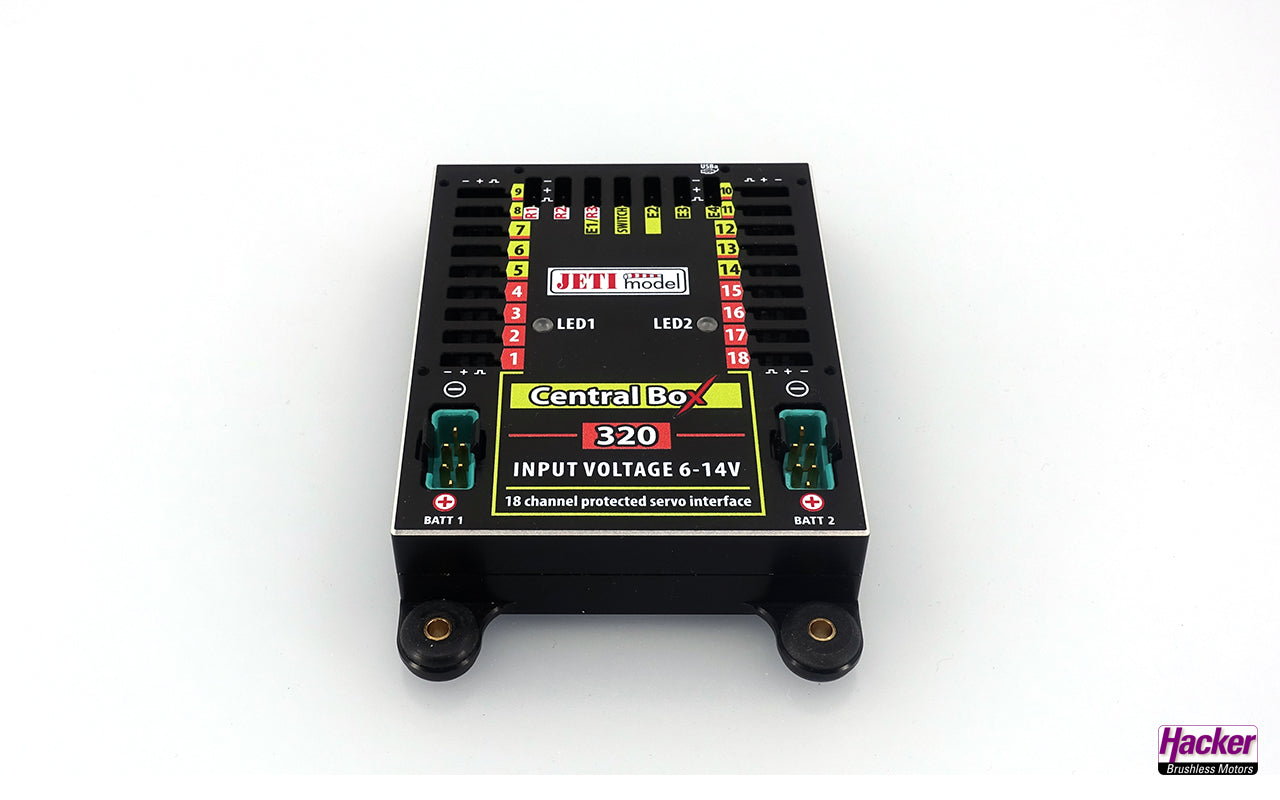

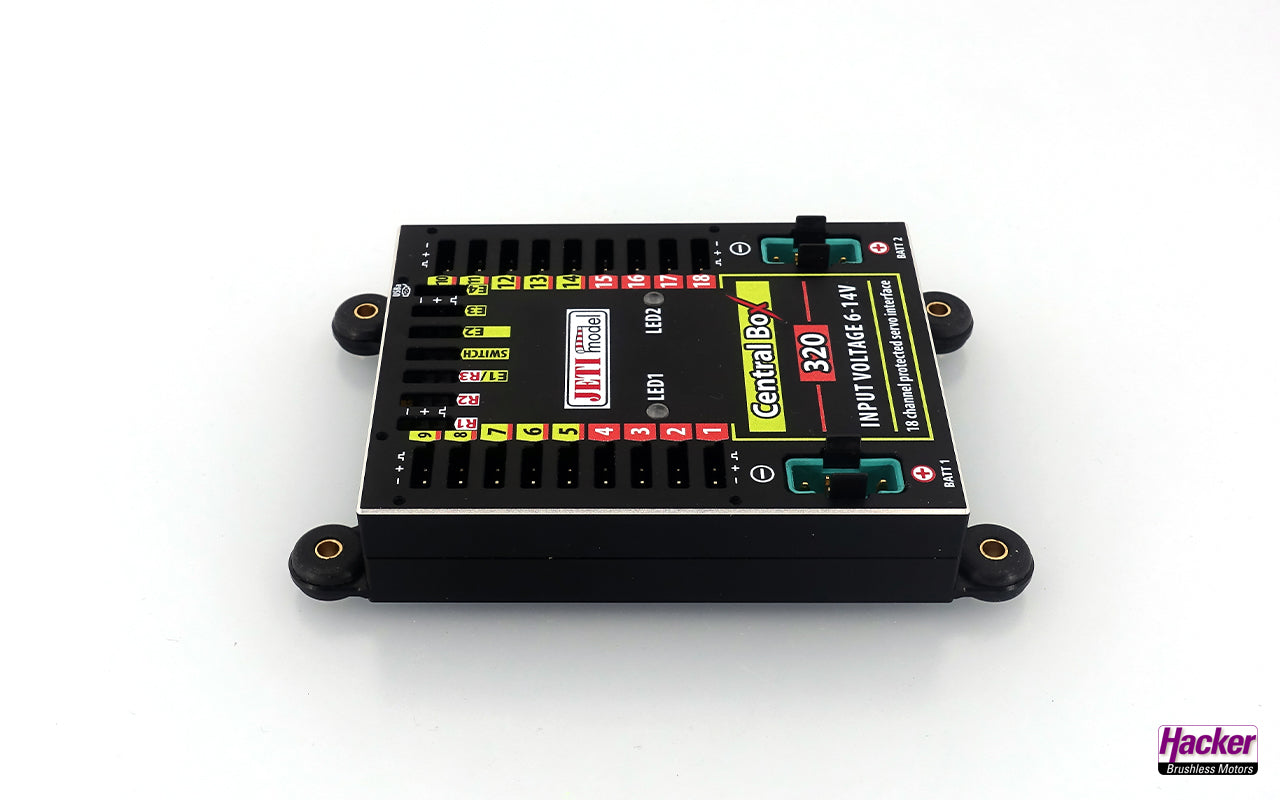

The Central Box 320 was designed for comprehensive management of multiple servos and two receiver batteries for models with high safety requirements. The Central Box 320 has overload protection on each servo output, 8 channels for high-power servos up to 60Kg/cm and 10 channels for standard servos up to 30Kg/cm. Especially for the use of powerful and power-hungry servos, an aluminum housing was used for the Central Box 320 for better cooling. The Central Box 320 offers true battery redundancy, DITEX servo telemetry, JETI EX telemetry and up to three receiver inputs (2x 2.4GHz and 1x 900MHz) for complete power and RF signal redundancy.
Configuration via JETI Duplex DS/DC Transmitters
With JETI Duplex DC/DS transmitters, the full potential of the Central Box 320 can be utilized. All configurations of servo outputs, DITEX servo and JETI EX telemetry, function assignment, etc. can be easily carried out via the device overview of the JETI Duplex DS/DC transmitter.
Compatibility with Futaba S.Bus
The Central Box 320 can also be used with two S.Bus receivers (e.g., Futaba R7003SB). However, settings and reading of telemetry values must be done via a separately available JETIBOX.
Switching On and Off
The Central Box 320 is switched on and off using the included magnetic switch.
Recommended Receivers
For example, 2 RSat2 or REX3 receivers can be used. Optionally, a REX Assist receiver can be used together with an RSat2 receiver, which provides a Central Box with gyro stabilization.
Features
- Adjustable powerful BEC for voltage stabilization (connection of standard or HV servos)
- DITEX servo telemetry support
- Possibility to connect up to 3 receivers with serial communication
- Built-in expander function with the possibility of independent connection of up to four JETI EX sensors
- Input for magnetic switch or RC switch
- Power supply batteries connected via MPX connectors
- 100Hz mode of servo outputs (10ms period)
- EX telemetry support (measurement of voltage, current, capacity, temperature, etc.)
- Easy setting changes via DC/DS transmitters ("Device Explorer")
- Robust metal construction with mounting holes

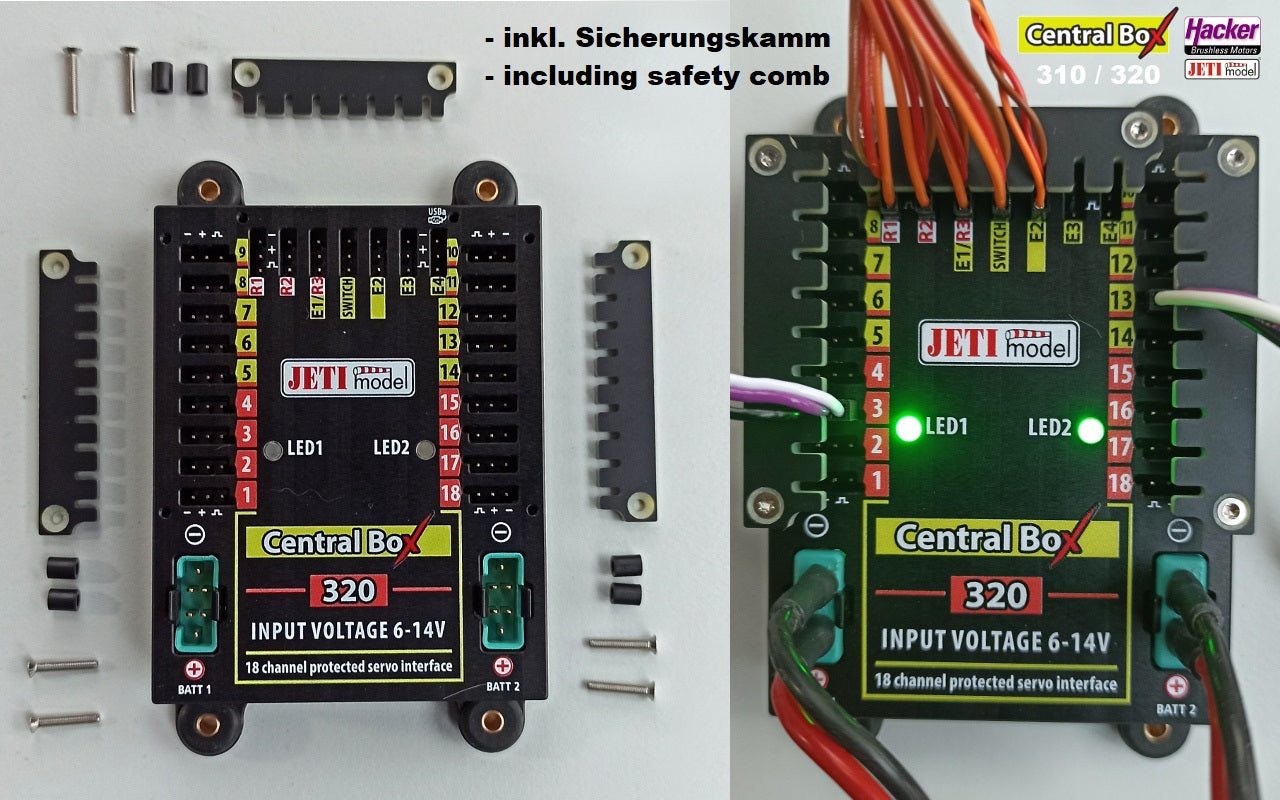

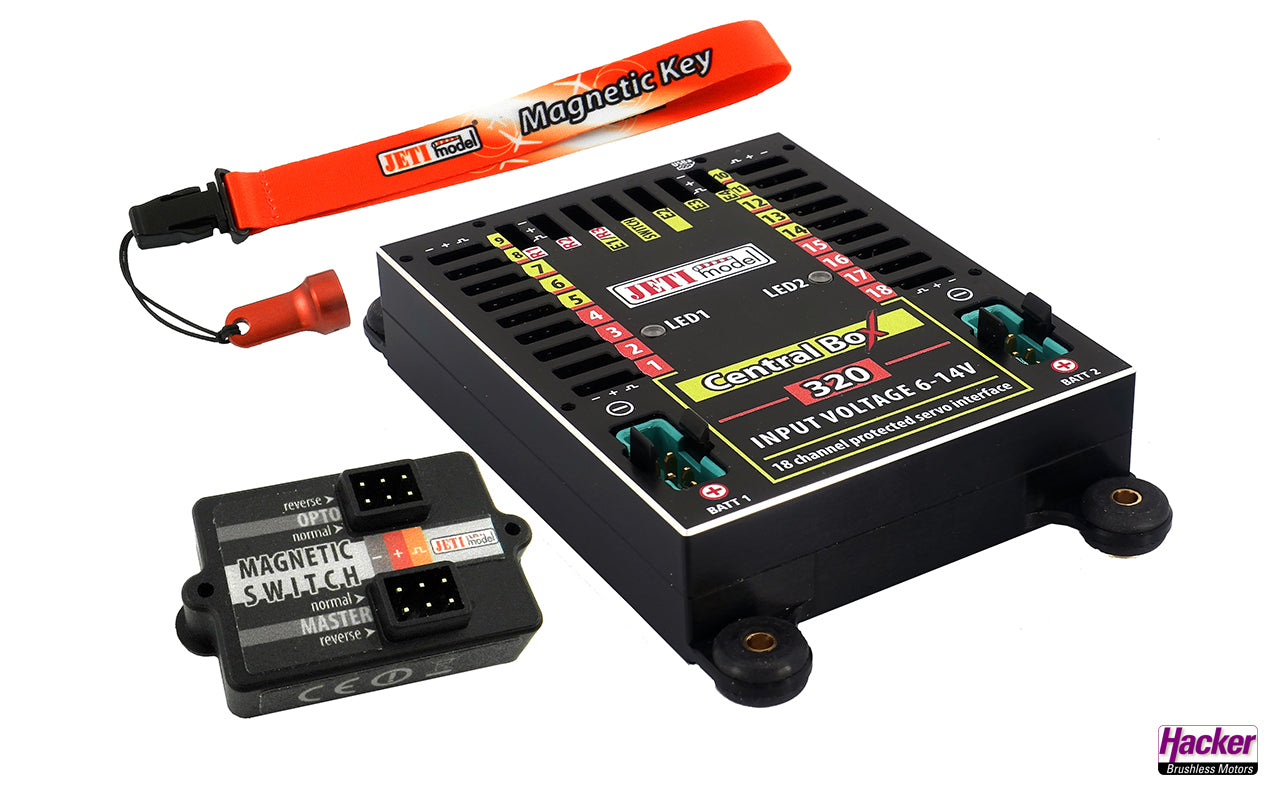

Scope of Delivery
- 1 JETI Duplex 2.4EX Central Box 320
- 1 Magnetic switch
- 1 Magnetic key
- 1 Patch cable.
Important Note
If the Cortex pro is operated on a CentralBox, please use an additional patch cable for +/- power supply.
