DC-16 II Tray Transmitter Carbon Line RED Multimode incl. REX 10, Hacker # 80001745
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
DC-16 II Tray Transmitter Carbon Line RED Multimode incl. REX 10, Hacker # 80001745
Tray Transmitter DC-16 II Carbon Line RED Multimode incl. REX 10, Hacker # 80001745
Scope of Delivery

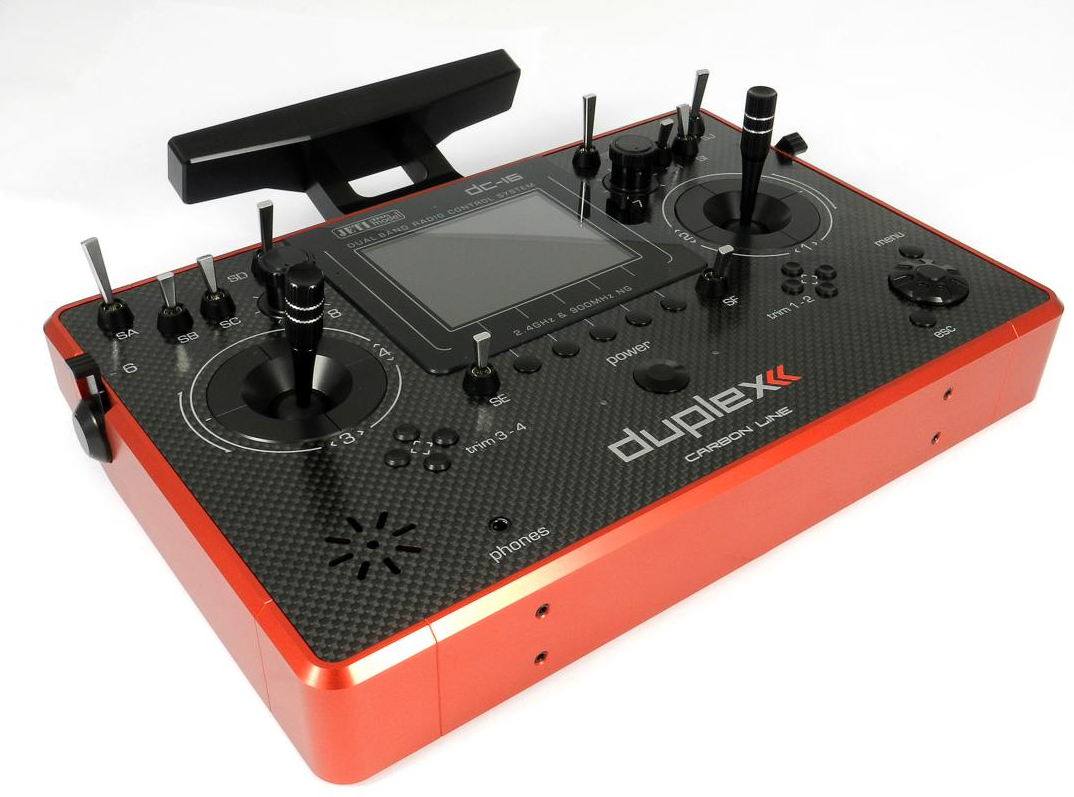

DC-16 II Carbon Line RED Multimode transmitter (factory setting Mode 2, control mode very easy to change), built-in transmitter battery, charger for transmitter battery, robust transport case and REX 10 receiver.
Features
- 24 full control channels
- 3 RF modules (2x 2.4Ghz, 1x 900NGMhz optional)
- Color display
- 4 model types (fixed wing/heli/multicopter/functional model)
- MP3 Player
- Telemetry processes up to 64 sensor values
- Voice input commands optional
900 Mhz NG Receiver System (optional)
The 900 Mhz NG receiver system (Next Generation) is suitable for DS-12, DS-16 II, and DC-16 II transmitters.
It is an independent, second transmission system in a second frequency range. If this system is used, the model can still be controlled even if the 2.4Ghz band is disrupted (e.g., by directional radio, during copter flights for television broadcasts, etc.). The 900 Mhz NG backup system only becomes active if this occurs. This significantly increases safety in high-quality models. Of course, this backup system can be individually activated or deactivated per model. It is always used together with the 2.4Ghz transmission system, not individually.
Transmitter Hardware
- Multimode control sticks
- Determination of stick positions by Hall sensors (without potentiometers)
- Control path resolution 4096 steps
- Color display, backlit
- Rotatable stick units
- Full aluminum control sticks/units, length-adjustable, ball-bearing
- Internal memory
- Integrated LiIon battery for long operating time
- Charger
- Aluminum transport case
- Voice output
- Headphone jack
- Digital trims
- Painted aluminum housing
Transmitter Software
- 2.4 GHz DUPLEX EX
- 24 control channels
- Customizable menu navigation
- Almost unlimited setting options
- Almost unlimited model memory capacity
- Firmware update via USB
- Ultra-fast control responses
- Power management system for longer operating time
- PC interface
- 4 adjustable model types (fixed wing/heli/functional model; multicopter)
- 8 languages (EN / DE / CZ / FR / IT / PT / SE)
Telemetry Functions
- Voice output of telemetry warnings and telemetry values
- Real-time display of telemetry data on the transmitter display
- Recording of telemetry data
- PC transfer, storage and processing of telemetry values
- Saving (backup) of model data and transmitter settings on the PC
Technical Data
- Dimensions [mm] 230 x 270 x 40
- Weight [g] ~1500
