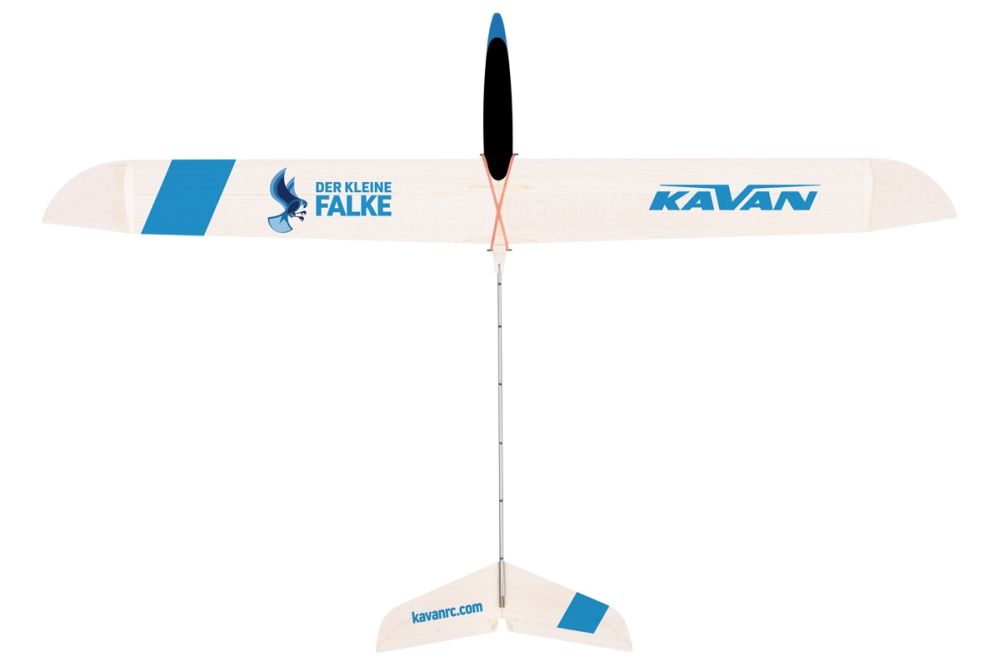

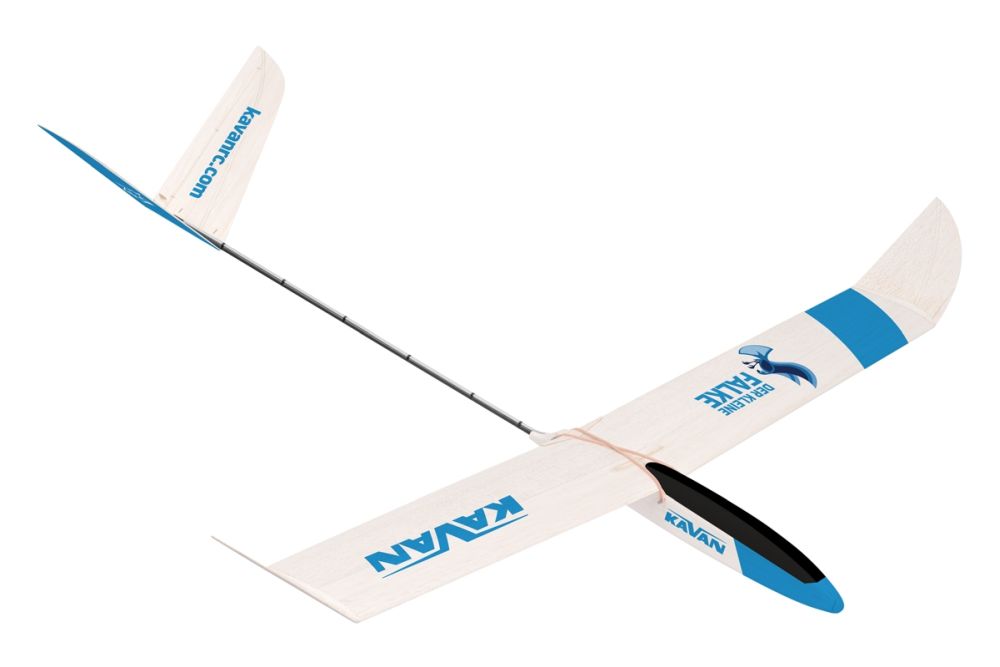

The Little Falcon, RC or Free Flight Model, Span 1240mm, Kit
# KAV02.4316

The Little FALCON is the ideal first true glider for gaining basic building skills and learning to fly with a free-flight model. And that's not all – the Little FALCON model can be built as a free-flying glider in category A1 (international class F1H). However, it is also possible to equip it with two small servos and a small receiver to create a small RC glider. Thanks to its excellent design, it is possible to initially complete the Little FALCON model as a free-flying model. You can easily add remote control and even a motor at any time later!

When building, thanks to the precisely laser-cut parts, you only need the most basic tools (modeling knife, fretsaw, sandpaper, pins, flat hairbrush), model adhesive, and varnish.
Excellent construction, interlocking parts, cleverly supplied jigs in the kit, and pre-fabricated parts allow you to build the model quickly and easily.

The front part of the fuselage consists of a structure made of laser-cut balsa and plywood parts, providing enough space for a timer and ballast for the free-flight version. It can also accommodate a receiver or propulsion battery, two servos, and a receiver for the RC version. Access is via a removable cabin canopy.
The tail boom is made of a carbon tube, which guarantees low weight and high strength.

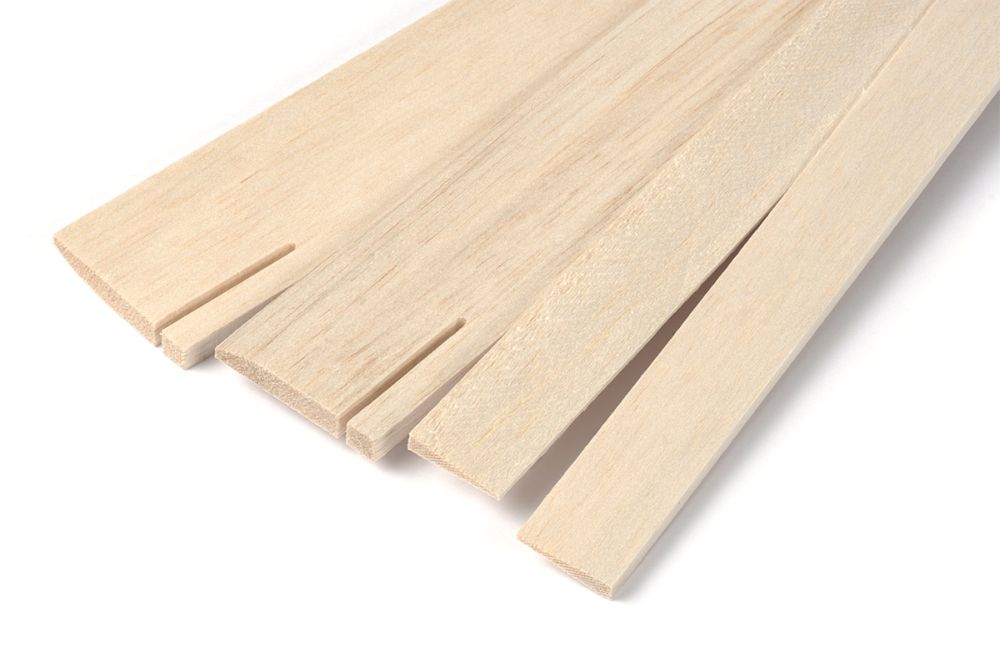

The leading edge of the Jedelsky all-balsa wing is formed by pre-sanded balsa strips. Thanks to the perfect design, only a flat work surface is needed for its construction. The wing is attached to the fuselage with rubber bands.

The V-tail is made from laser-cut balsa sheets. The control surfaces are hinged with nylon hinges. For their adjustment or control, a pair of Bowden cables are used, which are attached to the carbon fuselage boom and fed into the fuselage. In the free-flight model, the Bowden cable wires are fixed to the fuselage sidewall with a piece of self-adhesive tape - the control surfaces are thus firmly fixed but can be adjusted as needed to trim the glide.

The high-start hook included in the kit allows The Little FALCON to be towed on a 25 - 50 meter line (nylon fishing line) without a pulley or launched from a small high-start device (5 m rubber 3x2 mm + 20 m nylon line).

Required Accessories:

• Remote control set with V-mixer
• 2 Servos
• Mini-receiver
• Receiver battery

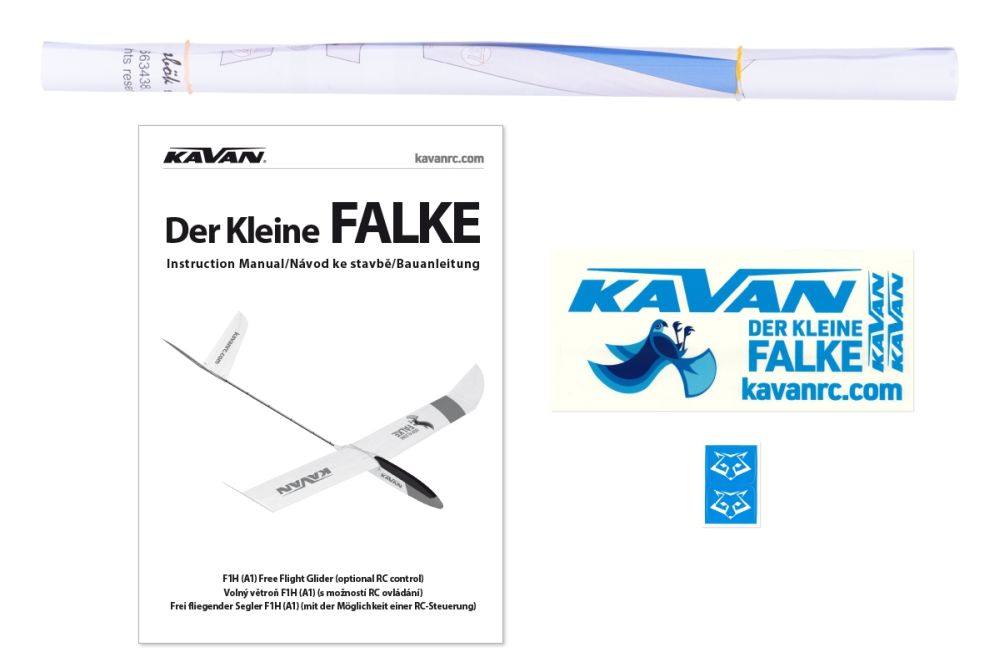

The kit includes:

• Laser-cut balsa and plywood parts for the fuselage
• Pre-sanded parts for the wings and tail surfaces
• Carbon tail boom
• Bowden cables and small accessories
• Sandpaper, ballast, rubber for wing attachment, high-start hook, decals
• Building plan and instructions
