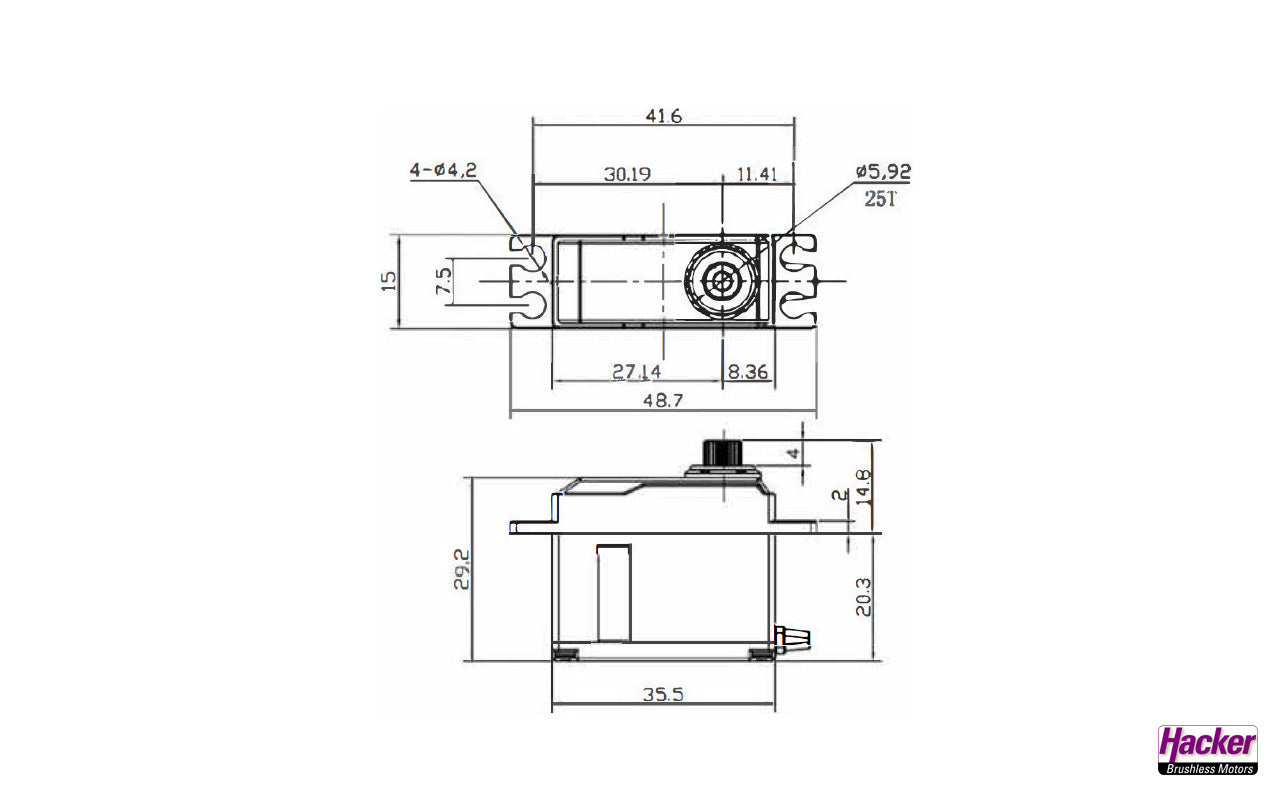

DITEX Servo EL0907M, 35.5x15x29.2mm, 41g, 90Ncm@7.4V, 0.08/60°
Prices incl. VAT unless stated otherwise. For 1 unit of this item.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
-
DITEX Servo EL0907M, 35.5x15x29.2mm, 41g, 90Ncm@7.4V, 0.08/60°
DITEX Servo EL0907M, 35.5x15x29.2mm, 41g, 90Ncm@7.4V, 0.08/60°
Product description and features

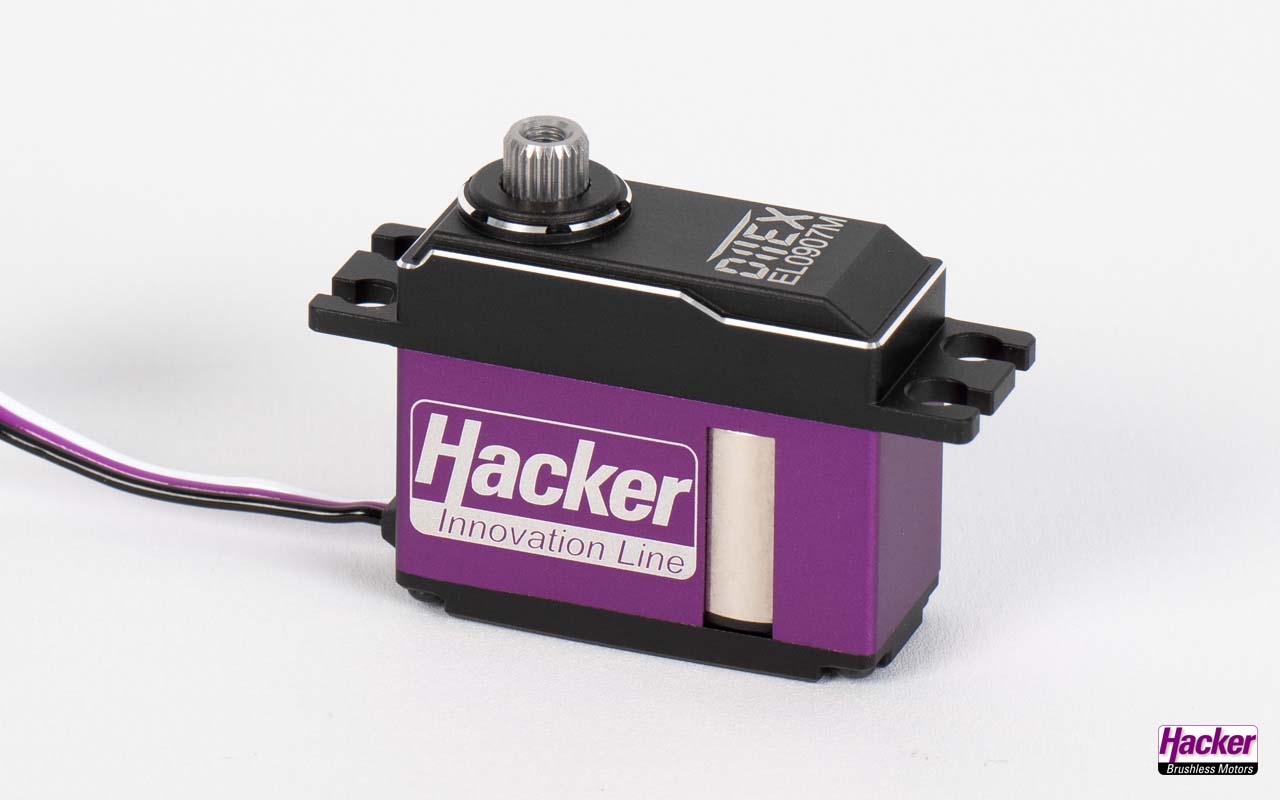

The Ditex EL0907M is a powerful medium-sized digital servo with 9.0 kg of torque and an operating speed of 0.08 seconds /60°.
The design with the exposed motor in the full aluminum CNC housing ensures fast heat dissipation and low weight. At the same time, the CNC-machined housing also increases the rigidity and power transmission from the high-precision titanium gearbox.
Suggested application
It is perfect for aircraft models up to 12KG, helicopters 450/500/600 size, 1:6 Jet, 1:10 and 1:12 RC Cars
Features
- Rated voltage DC 7.4V
- Voltage range DC 4.0 - 8.4V
- Actuating force 5.0 Kg-cm @ 4.8V
- Actuating force 6.0 Kg-cm @ 6.0V
- Actuating force 9.0 Kg-cm @ 7.4V
- Actuating time 0.10 sec. / 60° @ 4.8V
- Actuating time 0.09 sec. / 60° @ 6.0V
- Actuating time 0.08 sec. / 60° @ 7.4V
- Stall current 2.8A @ 7.4V
- Rated torque 0.5 N-cm @ 7.4V
- Rated current 0.370A @ 7.4V
- Rated speed 0.08 sec. / 60° @ 7.4V
- Operating frequency 1520µs/333Hz
- Standard angle +/- 60° = 120°
- Operating temperature -15°C to +70°C
- Soft start no
- Programmable no
- Ball bearing 2BB
- Housing material aluminum
- Motor type DC coreless motor
- Gearbox titanium gears
- Position sensors potentiometer
- Weight 41g
- Signal voltage level
- Pulse range 500µs-2500µs
- Pulse corresponding angle -60° / 0° / +60° 1000µs / 1500µs / 2000µs
Scope of delivery

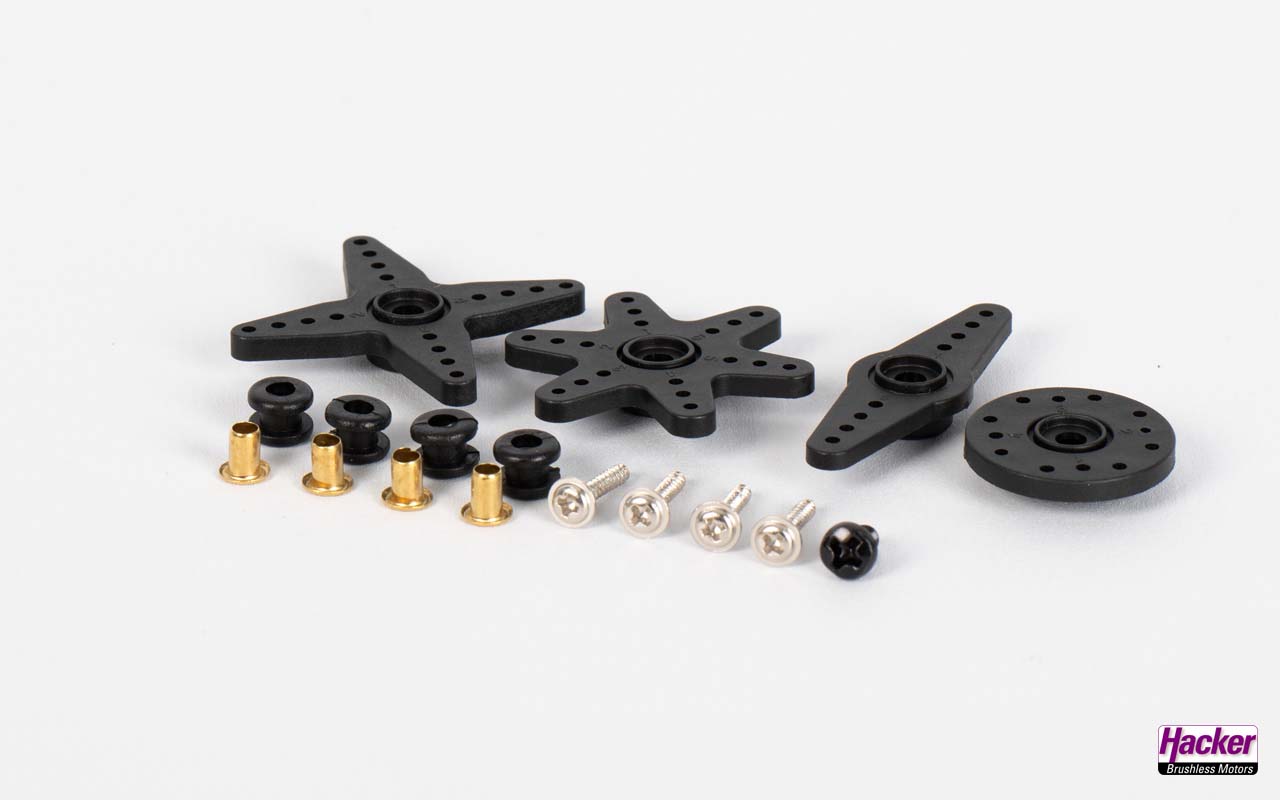

- 1 DITEX EL0907M, servo arm and mounting material.
