DSM ESC, Expansion module for parallel power supply, Hacker # 22985459

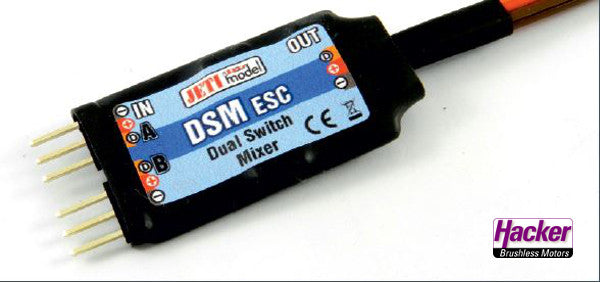

JETImodel DSM ESC, expansion module for parallel power supply
Hacker # 22985459
This electronic circuit is used to power the receiver and servos in the model. The DSM ESC combines the BEC power supply from two speed controllers or a combination of a receiver battery (buffer battery) and a BEC controller to power the receiver system. The ON/OFF switching is performed here with the well-known magnetic switch.
Technical data:
- Input voltage: 5 - 8.4 V
- Output current/continuous load: 10 A
- Output current/pulse: 20 A
- Quiescent current in off-state: 130µA
- Operating temperature: -10 to +85 °C
- Weight: 24g
- Size: 38x20x7mm
