Dual Rate/Reverse Module, Simprop # 0110833
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Dual Rate/Reverse Module, Simprop # 0110833
Dual Rate/Reverse Module, Simprop # 0110833

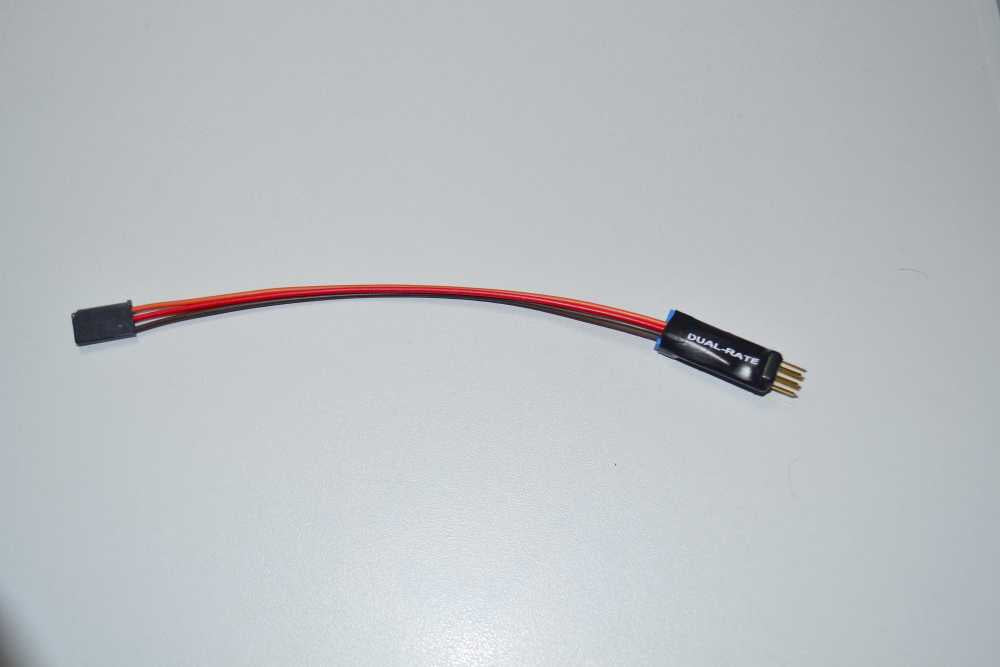

With the "Dual-Rate" module, the servo travel can be continuously reduced or even increased from 0.5 - 125% using a potentiometer. Additionally, the servo's direction of rotation (reverse) can be determined with the switch on the module. This function makes the "Dual-Rate" module ideal for operating, for example, 2 elevator servos or 2 spoiler servos from one servo output.
The module is also equipped with a second output (on the cable side). This output corresponds 1:1 to the input.
This allows two servos to be connected to one receiver output, where one can be optimally adjusted in terms of travel and direction of movement to the other.
- Servo travel continuously adjustable from 0.5 - 125% with the potentiometer
- Servo reverse switchable on/off
- Hold function in case of pulse failure or interference
- 2 outputs
Technical Data:
- Nominal voltage: 4.8 - 6.0V
- Current consumption: 10mA
- Neutral pulse: 1.5ms
- Valid pulse range: 0.7 - 2.3ms
- Dimensions: 26 x 12 x 6mm (without cable)
- Weight: 3g
