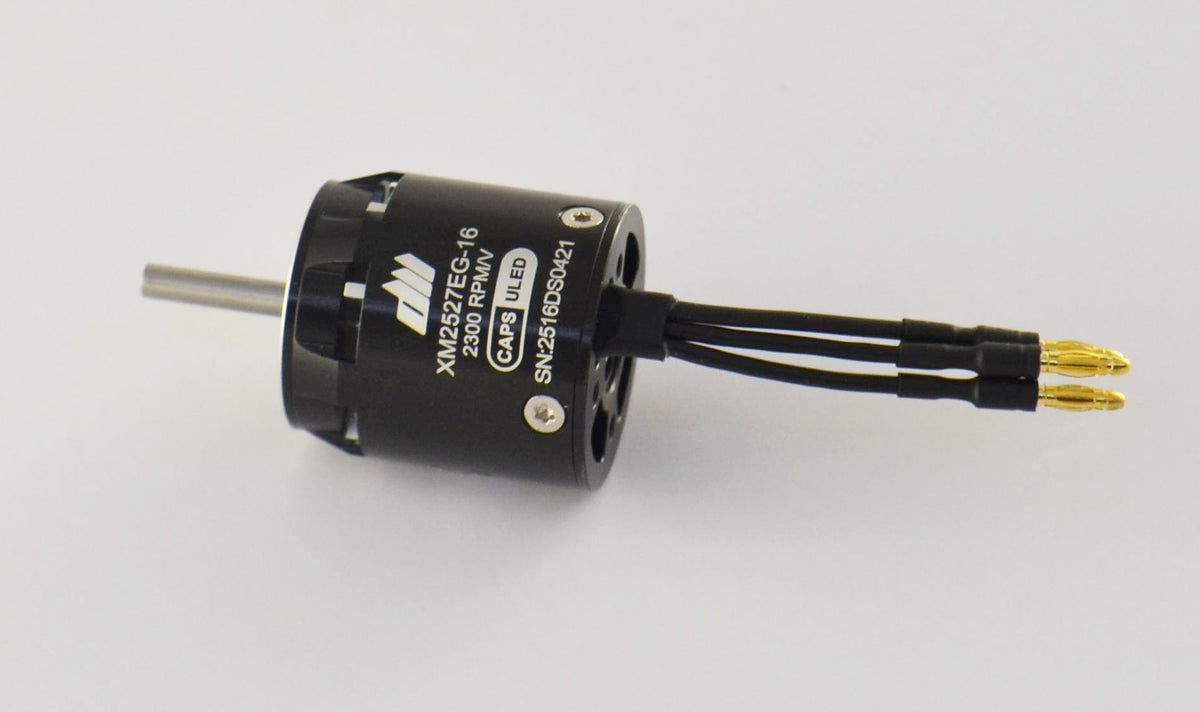

DUALSKY XM2527EG-16, 2300kV, 37.5g

The Dualsky XM motors are modern 14-pole brushless outrunner motors equipped with high-quality neodymium magnets. They are characterized by high efficiency.

The "EG" motor series is specially designed for the requirements of electric gliders. The XM2527EG are ideal for applications such as F5K and F5L. Particularly striking is the enclosed motor housing, making it ideal for use in particularly narrow fuselages. The advantage of the enclosed motor housing is that the bell rotates internally, preventing the cables from chafing. Additionally, the connecting cables exit from the rear of the motor, which greatly simplifies installation.

Features of Dualsky XM motors are:

  • High efficiency due to maximum cooling (fan in the rear cover)
  • Smooth running due to large precision ball bearings
Recommended propeller size:
  • 2S: 7x4, 7x6, 8x4, 8x5 with a 30A ESC
  • 3S: 6x3, 6x4, 7x4 with a 30A ESC
Current range
13-27 A
Short-term power
15 sec. / 200 W
RPM per volt
2300 KV
Recommended LiPo drive
2-3C
Recommended ESC
30A

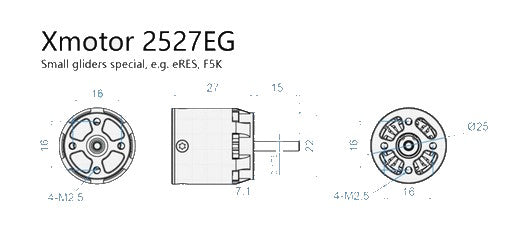

Dimensions (dia. x L)
25x27 mm
Weight
38 g
Motor shaft dia. x length
3.17x15 mm
Drive type
Direktantrieb
Mounting / hole circle
M2.5 / 16mm
