DUALSKY XM2527EG-23, 1600kV, 37.5g

Dualsky XM motors are modern 14-pole brushless outrunner motors equipped with high-quality neodymium magnets. They are characterized by high efficiency.

The "EG" motor series is designed to meet the specific requirements of electric glider flight. The XM2527EG motors are ideal for applications such as F5K and F5L. Particularly noteworthy is the encapsulated motor housing, making it ideal for use in particularly narrow fuselages. The advantage of the encapsulated motor housing is that the bell rotates inside, preventing the cables from chafing. In addition, the connection cables exit from the back of the motor, which significantly simplifies installation.

Features of Dualsky XM motors are:

  • High efficiency due to maximum cooling (fan in the rear cover)
  • Smooth running due to large precision ball bearings
Recommended Propeller Size:
  • 2S: 9x5, 9x6, 10x6, with 25A ESC
  • 3S: 7x4, 8x4 with 25A ESC
  • 4S: 6x4, 6x5, 6x6
Current range
10-20 A
Short-term power
15 sec. / 222 W
RPM per volt
1600 KV
Recommended LiPo drive
2-4S
Recommended ESC
25A

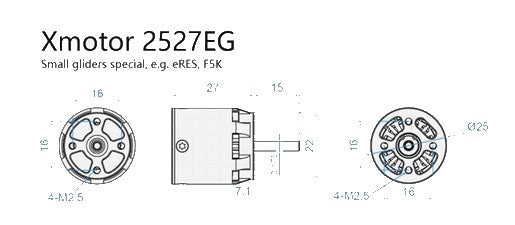

Dimensions (dia. x L)
25x27 mm
Weight
38 g
Motor shaft dia. x length
3.17x15 mm
Drive type
Direktantrieb
Mounting / hole circle
M2.5 / 16
