Dualsky XM3850EG-10, 740kV, 195g #52013

Regular price €119,90 EUR
Sale price €119,90 EUR Regular price
Unit price
Tax included, plus .
  • Availability:
    3 in stock
  • SKU:
    DS52013
  • Delivery time Germany: 1-3 business days.

  • Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)

Request delivery time

Dualsky XM3850EG-10, 740kV, 195g #52013 · SKU: DS52013

* Required fields

Dualsky XM3850EG-10, 740kV, 195g #52013

Dualsky XM3850EG-10, 740kV, 195g #52013

Regular price €119,90 EUR
Sale price €119,90 EUR Regular price
Unit price
Product description
Technical Data
Product Safety
Documents

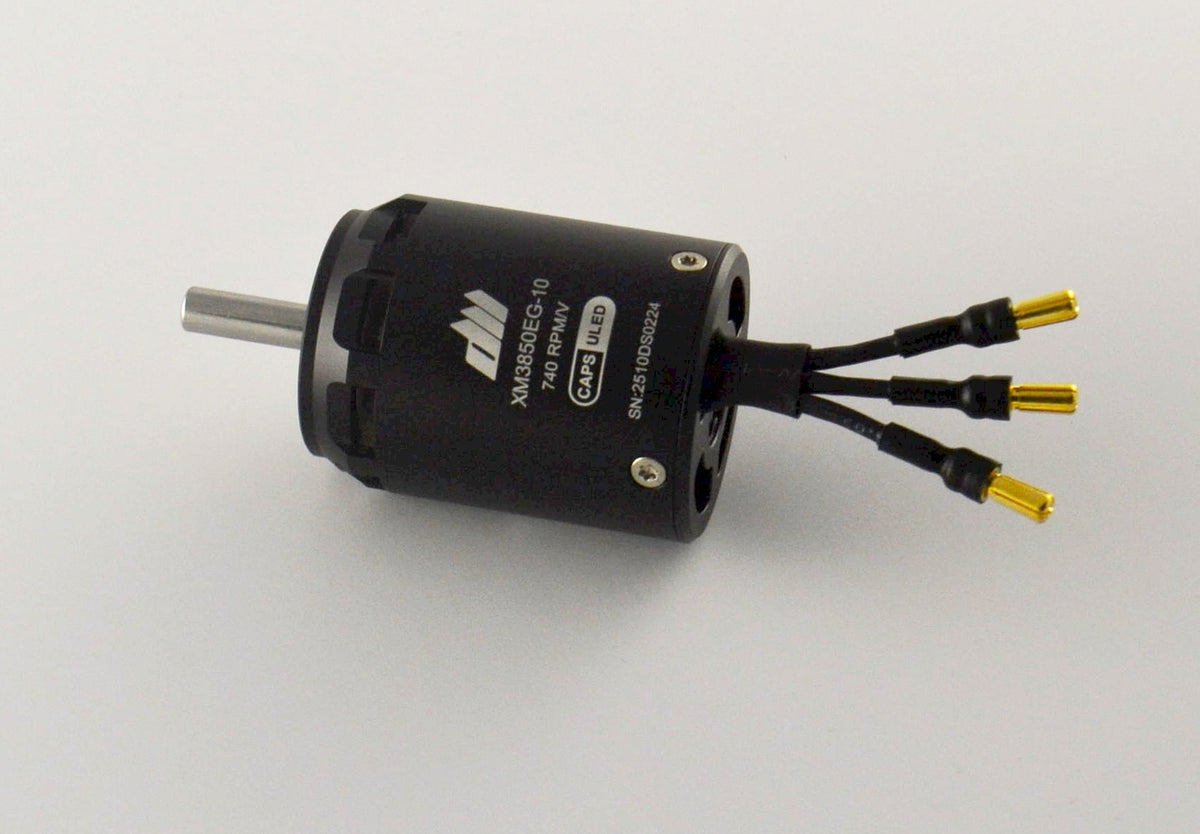

DUALSKY XM3850EG-10, 710kV, 195g #52013

Dualsky XM motors are modern, 14-pole brushless outrunner motors equipped with high-quality neodymium magnets. They are characterized by high efficiency.

The "EG" motor series is tailored to the specific requirements of electric glider flight. The smaller models are perfectly suited for applications such as F5K, F5L and F5J, and similar uses. Particularly noteworthy are the encapsulated motor housings, which are ideal for use in particularly narrow fuselages. The advantage of the encapsulated motor housing is that the bell rotates internally, preventing cables from chafing. Furthermore, the connection cables exit from the rear of the motor, which simplifies installation.

Features of Dualsky XM motors are:

  • High efficiency through maximum cooling (fan in the rear cover)
  • Smooth running due to large precision ball bearings

Recommended Propeller Size:

  • 4S: 13x8, 14x8, 15x8 with a 65A ESC
  • 5S: 12x6, 12x8, 13x6 with a 65A ESC
Current range
24-47 A
Short-term power
30 sec. / 750 W
RPM per volt
740 KV
Recommended LiPo drive
4 - 5S
Recommended ESC
60A

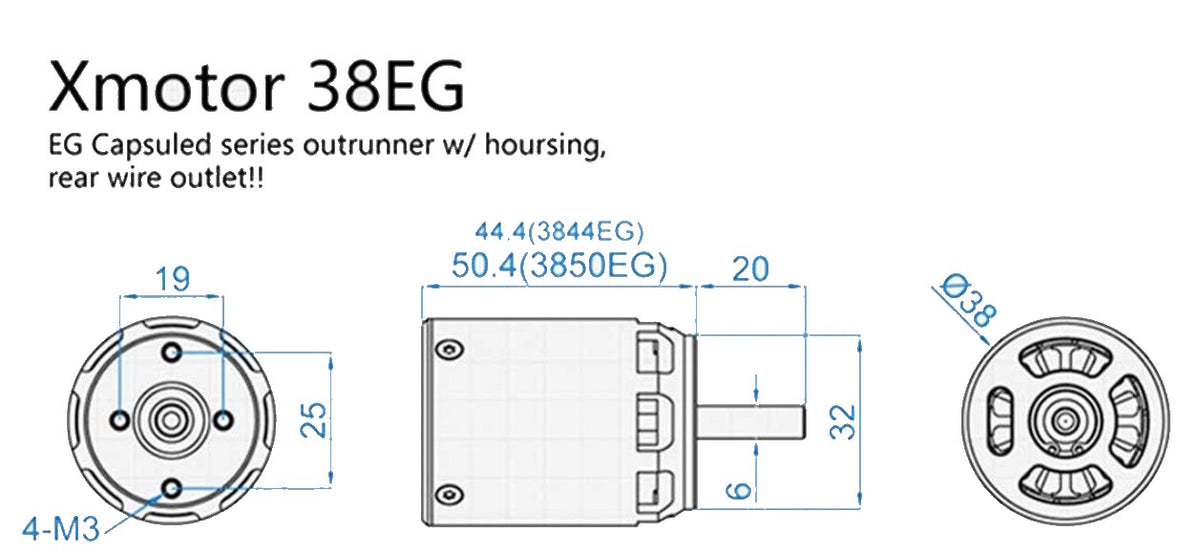

Dimensions (dia. x L)
ø38 x 50.4 mm
Weight
195 g
Motor shaft dia. x length
6 x 20 mm
Drive type
Direktantrieb
Mounting / hole circle
M3 / 19/25mm
