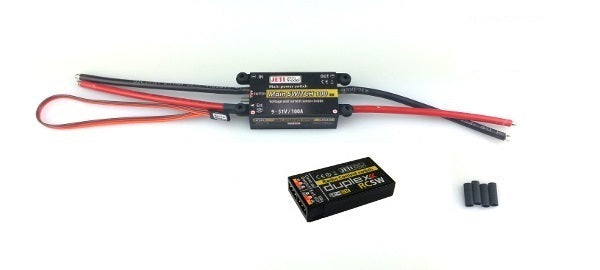

DUPLEX 2.4EX Main Switch 100 + RC Switch, Hacker # 80001231

The Main Switch is an electronic switch designed to control the main power supply in an RC model. This provides a major safety advantage when handling the model, without the need to physically disconnect the model's batteries from the drive. The Main Switch also prevents the known sparking that would otherwise occur due to the pre-charging of the controller capacitors. Special anti-spark circuits or plugs are not required.

This Main Switch set comes with the RC Switch. The RC Switch can be operated wirelessly with JETI Duplex DC/DS transmitters. Although the Main Switch was primarily designed for use as a main switch in RC models, it can also be used for many other applications to switch a power supply.

The Main Switch measures the voltage and current flowing from the drive battery and can therefore transmit these values and the consumed battery capacity to the JETI Duplex system via EX telemetry. In addition, the temperature of the Main Switch is measured and displayed. Alarms can be set for maximum capacity, current, and temperature, as well as for minimum voltage.

Technical data:

• Weight [g]: 110
• Dimensions [mm]: 80 x 36 x 253
• Continuous current [A]: 100
• Telemetry: Yes (Current, Voltage, Capacity, Temperature)
• Operating temperature [°C]: -20 ... 85
• Recommended input voltage [V]: 9 ... 51
• Quiescent current [µA]: 110
• Number of battery inputs: 1
• Max. input voltage [V]: 51
