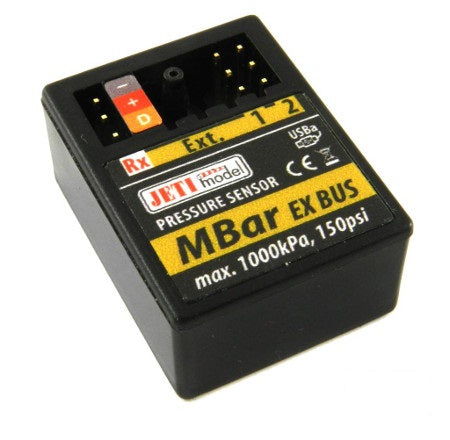

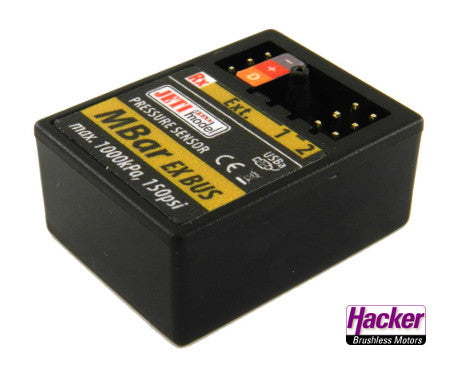

DUPLEX 2.4EX MBar, Pressure Sensor for Jeti Telemetry, Hacker # 80001321
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
DUPLEX 2.4EX MBar, Pressure Sensor for Jeti Telemetry, Hacker # 80001321
DUPLEX 2.4EX MBar, Pressure Sensor for Jeti Telemetry, Hacker # 80001321
The MBar EX sensor can be used, for example, for monitoring a compressed air system for retractable landing gear or for oil pressure in hydraulic systems.
Prevents damage to the model due to pressure loss, e.g. with pneumatic retractable landing gear, by programming an alarm and automatic triggering of the extension process (possible with JETI Duplex series DS/DC transmitters -> telemetry transmitter). This sensor is compatible with Jeti EX Bus as a digital communication protocol or with EX standard telemetry. In EX Bus mode, additional telemetry sensors can be connected directly without further expanders.
Technical Data:
- Dimensions: 30x23x13mm
- Weight: 7g
- Absolute measurement accuracy: ±2%
- Pressure measurement resolution: 0.1kPa
- Measuring range: 0÷1000kPa (150psi, 10bar)
- Temperature range: -10÷85°C
- Recommended supply voltage: 3.5 ÷ 8.4V
- Maximum supply voltage: 16V
- Current consumption: 15mA
- Hose connection diameter: 2mm
