Flow Meter MFlow2 Turbine 3000, Jeti DUPLEX 2.4EX, Hacker # 80001323
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Flow Meter MFlow2 Turbine 3000, Jeti DUPLEX 2.4EX, Hacker # 80001323
Flow Meter MFlow2 Turbine 3000, Jeti DUPLEX 2.4EX
Hacker # 80001323
This telemetry sensor measures the flow of jet fuel from the tank to large turbines and can thus reliably display the tank level.
The MFlow2-T3000-Turbine is suitable for models with turbine propulsion.
- The sensor is compatible with the Duplex EX-Bus System
- Configuration via the device overview of the JETI DC/DS transmitter (file "MFLOW2.bin" required)
- Selectable switch/button on the DC/DS transmitter to clear average and maximum values.
- EX Telemetry Values: Current flow and tank level
- User-adjustable parameters, such as tank volume, alarm for minimum level
- Firmware update via JETI USBa
- Calibration of the sensor specifically for turbine fuel
Technical data MFlow2-T3000:
- Measurement range [ml/min]: 50-3000
- Measurement tolerance [%]: ±2
- Hose connection [mm]: 2x Festo 4mm
- Dimensions [mm]: 77x41x30
- Weight [g]: 40
- Voltage range [V]: 5-8.4
- Operating temperature [°C]: -20 to 80

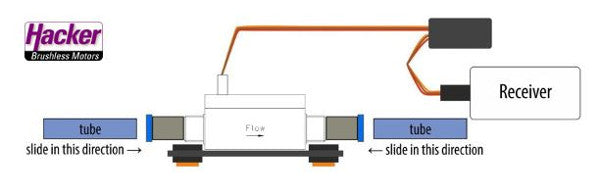

- Installation: on the "pressure side"
