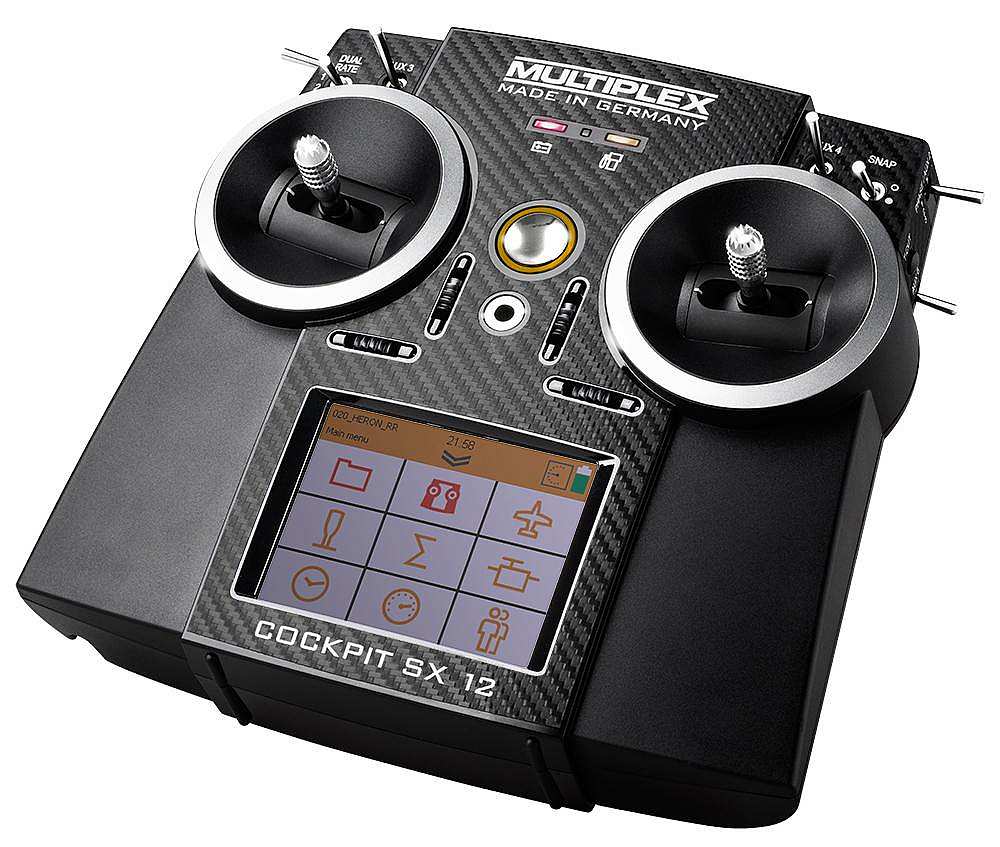

Single Transmitter Cockpit SX 12, 12-Channel Transmitter
Multiplex # 1-00151

COCKPIT SX 12-Channel M-LINK Remote Control – as premium as ever!

The MULTIPLEX COCKPIT SX 12 sets new standards in 12-channel handheld transmitters. Touch, Control and Fly! – Operation like a smartphone! The COCKPIT SX 12 can be programmed very easily via its app icons. The new SAFE-LINK software, in conjunction with numerous other new software features, further enhances the transmitter.
The model assistant intuitively guides you through a sophisticated touch concept with clear screens and many self-explanatory graphics. Easy-to-read TFT color touch display (even in sunlight) 3.5“, 320x240 pixels, with automatic day/night switching. Transmitter operating time of up to 24 hours possible.
Unique in this class is the intuitive control of functions via motion sensors (position or yaw rate sensors). For example, for camera movements, triggering voice output, etc.

The COCKPIT SX 12 is ergonomically superbly designed. The transmitter has a very comfortable housing size and is super light in the hand. All switches/encoders can be reached comfortably during operation without taking your thumb off the stick. The encoder assignment is individually selectable.

The COCKPIT SX 12 is 100% developed and built in Germany. Quality Made in Germany!

TFT Color Touch Display

• clear, transflective color display 3.5“, 320x240 pixels, touchscreen with expressive icons and large, easy-to-read numbers/letters. Readable in sunlight without backlight: ideal for model sports. Extremely power-saving in outdoor operation due to automatic day/night switching. Transmitter operating time of up to 24 hours possible. Display lock can be activated.

Simple and extensive programming options

• Intuitive operation through a sophisticated touch concept with clear screens and many self-explanatory graphics.

Super comfortable model memory management

• The COCKPIT SX 12 is equipped with 200 internal model memory slots; the model memories are stored on the internal SD card in .xml format. Comfortable model memory management on the PC via USB mass storage is therefore easily possible.

Outstanding voice output

Return channel/telemetry:

When using a telemetry-capable receiver, the current voltage of the receiver power supply is shown on the transmitter's display.
In addition, up to 8 telemetry data from the model can be displayed. The displays and announcements of the sensor values are freely configurable, with dynamic adjustment of the displays.

Wireless trainer/student mode:

The COCKPIT SX 12 M-LINK can be used as both a trainer and student transmitter as standard. All L/S-capable M-LINK transmitters can be used as student or trainer transmitters.

4 Timers:

• Timer 1: mm:ss Start/Stop switch selectable, alarm function, voice output, vibration
• Timer 2: mm:ss Start switch selectable, alarm function, voice output, vibration
• Timer 3: hh:mm Transmitter operating time counter
• Timer 4: hh:mm Time of day

Future-proof through software updates

MULTIPLEX continuously develops the COCKPIT SX 12 software. You can update your remote control to the latest version free of charge via the MULTIPLEX Launcher on www.multiplex-rc.de.

Technical Features:

• future-oriented 12-channel remote control – 12 fully proportional control channels / 24 encoders
• 32 bit processor / 4096 steps
• 2.4 GHz M-LINK transmission – secure ultra-fast, digital signal transmission with real-time telemetry
• Analog and digital servo mode
• IOAT antenna - integrated radiation-optimized antenna technology with extremely high range
• 3.5“ new TFT color touch display with telemetry display and DAY/NIGHT switching, real daylight readable
• 4-fold ball-bearing stick units (from PROFI TX)
• Fully equipped with all necessary controls and switches
• Voice output (D,E,F) via loudspeaker or earphone jack
• USB socket (charging transmitter battery, PC interface for firmware updates, data management)
• Modern, ergonomically optimized housing design
• Low weight
• 2.4 GHz transmission technology M-LINK with SAFE-LINK integrated
• µSD card for model storage
• Long operating time up to 24h
• 3 flight phases (wing)
• 4 flight phases (heli)
• Heli GAS and pitch curves (9 points) separately adjustable for each flight phase
• Aileron differentiation, separately adjustable for each flight phase
• Snapflap • Butterfly function
• FREE SERVO ASSIGNMENT
• Wireless trainer/student mode possible with optional COPILOT
• Multifunctional USB socket (charging transmitter battery, PC interface for firmware updates, data management)
• µSD card for model storage - 200 model memories
• Model copy function

Technical Data: COCKPIT SX 12:

• Number of channels: 12

• Expansion: „2 rollers, 2 push buttons, 2 switches (E/A/E) long, 3 switches (E/A) medium, 1 switch (E/A/E) medium, 1 x switch (E/A) short, 1 x switch (E/A/E) short“ Expansion module MULTIGYRO CSX (3 position sensors and 3 gyro sensors that can optionally be used as switches for telemetry, as well as control elements for steering servos.

Features:

• „4 proportional encoders, 2 rollers, 8 switches, 2 push buttons, 2 display sliders, 6 encoders by position sensor and yaw rate sensor, LiFe battery 3.3V/4000mAh, SD card
• Model memories: 200
• Frequency band: 2.4 GHz
• Expansion modules: MULTIGYRO CSX (#1-00092) already installed
• Transmission type: M-LINK with additional, optionally usable SAFE-LINK function
• Power supply: LiFe battery 3.3V/4000mAh
• Weight: approx. 867 g (with battery)
• Dimensions (L x W x H): approx. 190 x 210 x 60 mm
• Temperature range: -10°C - +55°C
• Operating time: 12 hours with display illumination "on", up to 24h in sunlight with illumination "off"
