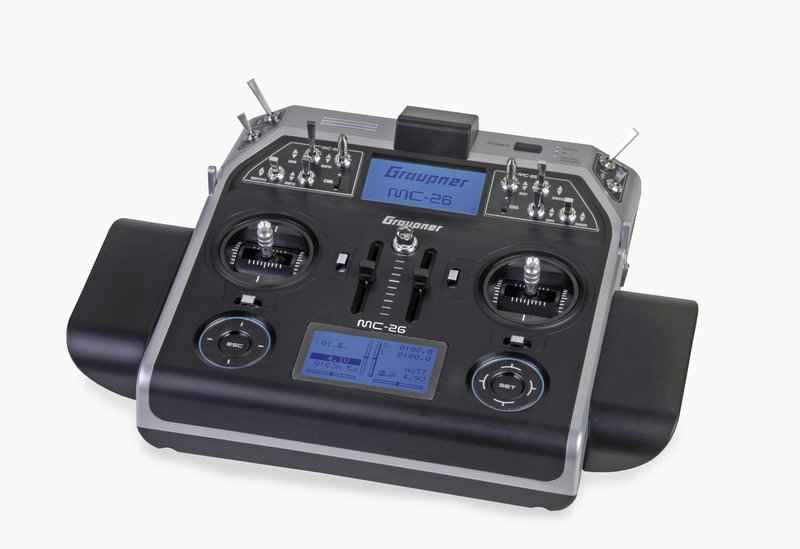

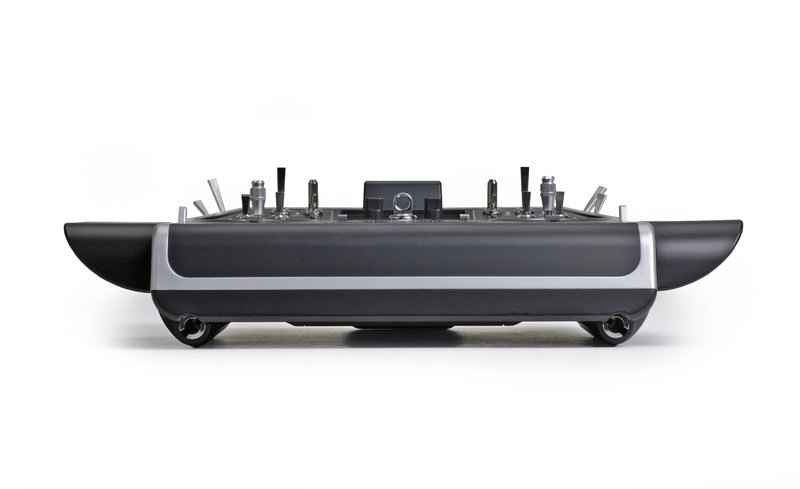

Single Transmitter mc-26HoTT, 16-channel, # S1036.77

The Graupner mc-26 HoTT remote control is the model for the advanced model sports enthusiast. The mc-26 is suitable for almost all models. 16 control functions, 120 internal model memories, integrated telemetry and voice output, as well as the fast and secure bi-directional transmission of Graupner HoTT 2.4 GHz technology, make the mc-26 a true all-rounder.
The mc-26 remote control has an internal circularly polarized patch antenna with very high range and reliability. Two large, high-contrast displays provide information on telemetry data and parameters at all times and allow for quick and easy programming.
The switches and buttons of the remote control can be freely assigned and thus individually adapted. 12 mixers are available for programming. 8 flight phase programs with announcement function can be adapted and named for each model. Thanks to the micro-SD card and micro USB interface, telemetry data and model memories can be imported and exported. Upgrades to the computer system can also be carried out easily.

Product features:

• Microcomputer remote control system with the latest 2.4 GHz Graupner HoTT technology
• Circularly polarized patch antenna
• Temperature-calibrated stick units
• Vibration alarms
• Charging via MicroUSB with charging indicator via LED
• Model types: aircraft, helicopter, copter, vehicle, boat
• Voice output by switch actuation or when changing flight phases with a selection of over 400 voice outputs and up to 40 customizable voice outputs
• Up to 10 customizable warning messages
• 10 different vibration alarms for telemetry warnings, timer, RF signal, voltage alarm
• Return channel speed for towing operation or camera copter with multiple transmitters and receivers in the model adjustable
• Music player via programmable switch
• Start/Stop function
• Bidirectional communication between transmitter and receiver
• Wireless L/S function
• 5 different languages (German, English, French, Italian, Spanish) possible via software update
• Storage of telemetry data with date and time
• Servo cycle times for digital servos selectable from 10ms
• Ultra-fast reaction times due to direct and reliable data transmission from the main processor to the 2.4 GHz transceiver
• No additional delays due to detours via a module processor
• Operation and programming based on the proven concepts of the mc-32

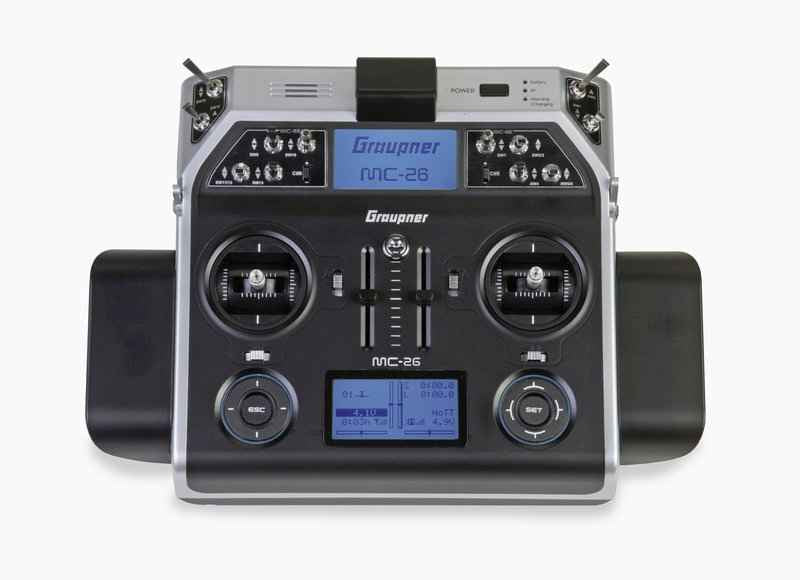

• A high-contrast blue illuminated graphic display ensures perfect control of setting parameters such as model type, model memory, clocks and operating voltage
• 16 control functions
• Free assignment of all switches
• 120 model memories
• 10 switches/buttons, including two long 3-position switches, four 2-position switches, 2 long buttons, 2 buttons on the back and 2 sliders as well as 2 side rotary encoders
• Mode 1 to 4 freely selectable
• CAP-TOUCH control panels with Key-Lock function against unintentional operation
• Numerous telemetry, programming and evaluation functions directly on the transmitter display
• Voice output callable via freely programmable switches
• Extensive programs for fixed-wing and helicopter models
• Swashplate limiter
• Switch "Monitor" for checking all switches and encoder switches
• 12 mixers, freely programmable for fixed-wing models and helicopters with individually selectable input and output functions, including 4 curve mixers with 5-point curve technology in 1% steps, making it easy to set and adjust curve values for a maximum of 5 points for throttle, pitch, tail or other non-linear travel paths. The CPU's calculator uses a sophisticated polynomial approximation method to calculate a truly rounded ideal MPC (Multi-Point-Curve) mixer curve.
• 8 flight phase programs with announcement function can be individually adapted and named for each model, the switching time can be programmed separately.
• SUPER-SERVO menu with a perfect overview of all servo setting data and simple parameter correction for 4 levels (direction of rotation, center position, servo travel separated on both sides and travel limit separated on both sides for 16 servos with a total of 96 setting options)
• SUPER-DUAL-RATE, EXPO menu with 36 possible setting variants, for 3 servo functions and 6 flight phases
• Practice-optimized multi-function menus for fixed-wing and heli models.
• Entering the number of aileron and flap servos automatically programs all necessary mixer functions in the multi-function fixed-wing menu. Differential aileron mixer, butterfly mixer, dual-flap mixer, automatic gyro set function and other special functions
• Heli swashplate mixer for 1, 2, 3 or 4-point linkages.
• Fail-Safe monitor for 16 servo functions
• Comfortable clock menu. Stopwatch system, alarm timer, countdown timer, lap counter etc. 2 time and 1 lap/time value can be displayed.
• Stopwatch with history: In addition to the lap counter, there is a time 1, which records the switch-on times, and a time 2, which records the ON and OFF switching times separately.
• Transmitter operating time timer is automatically reset to zero by the transmitter's battery charging process.
• Switch assignment of the flight phase switches: Now 6 switches, 2 of them with priority function. The designation of each switch combination can be freely selected. This means that the number of flight phases is independent of the number of flight phase switches.

Scope of delivery:

• Graupner HoTT mc-26 console transmitter, 16-channel with built-in LiPo transmitter battery 4000 mAh
• Update cable
• micro-SD card
• Aluminum case
• Hand rests
• Neck holder
• Short and long sticks
• Transmitter strap (65% polyester, 35% acrylic)

Features:

• Linearization of swashplate servos: Electronic compensation of the non-linear travel of swashplate rotary servos.
• Tail type normal, V-tail, Delta/Nurfl., 2 HR Sv 3+8 (this provides 2 linked elevator servos immediately without using free mixers/cross mixers)
• Number of flaps up to 4 QR/4 WK: Full support of 8 wing servos, now also without using free mixers.
• Switchable flight phase switching delay: For individual channels, the delay time can be switched off on a flight phase basis (e.g. for engine off in electric models or activating/deactivating head-lock in helicopters).
• 16 phase names surface mixer: Newly designed multi-flap menu for simplest settings of up to 8 surface servos specific to the flight phase in a clear way, even without the use of free mixers.
• Number of flight phases: (Surface: 8, Heli: 7 + AR)
• Phase trimming
• Switchable Snap-Flap mixer HR->WK with new offset function for easy course corrections and quick turns
• 3 ring limiters for Voith-Schneider drives and similar
• Channel sequencer for 3 channels for retractable engines and landing gear flaps
• Logical switches
• Trim memory
• Multichannel function for channel expansion for up to 14 additional channels
• Music player and internal speaker for voice output and music
• Swapping of servo assignment at the receiver output on the transmitter and receiver side
• PPM signal adjustable at the data output

General HoTT features:

• Easy and extremely fast binding
• Range test and warning function
• Undervoltage warning
• Extremely wide receiver operating voltage range from 3.6 V to 8.4 V (functional down to 2.5 V)
• Failsafe, free channel assignment (Channel Mapping),
• Mixing functions and all servo settings are easily programmable with the internal telemetry
• Binding of any number of receivers for channel expansion (max. 32 channels)
• Up to 4 servos can be controlled in blocks with a servo cycle time of 10 ms simultaneously (digital servos only!)
• Maximum interference immunity due to optimized frequency hopping and wide channel spreading
• Intelligent data transmission with correction function
• Extremely fast rebinding even at maximum distance
• Real-time telemetry evaluation
• Over 200 systems can be used simultaneously
• Future-proof due to update capability via USB interface or MicroSD card
