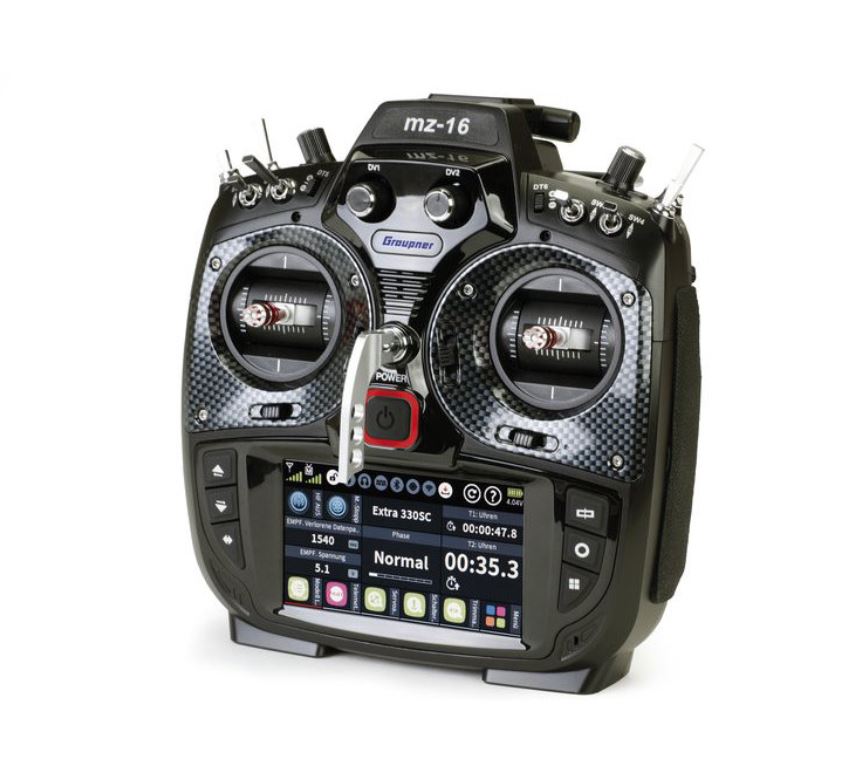

MZ-16 HoTT Single Transmitter, 2.4GHz, 16-Channel Remote Control
D-Power # S1047.77

The Graupner mz-16 HoTT remote control ushers in the third generation of telemetry transmitter systems and elevates RC transmitters to a new level. The enormous range of hardware and software features offers unprecedented versatility,
where the user is the focus and can influence almost every part of the transmitter and adapt it to their own preferences.
The mz-16 allows you to design your own screens, program suitable control logics, customize the entire voice output for the user, and even change the appearance of the transmitter.

Flexibility and configurability characterize the Graupner mz-16 HoTT!
5 different model types can be selected, such as aircraft models with electric, internal combustion or turbine propulsion, helicopters, multirotors, vehicles and even boats. It can store and retrieve 999 models,
has 8 flight phases and 12 curve mixers that can be programmed globally or flight-phase dependent!
The four-ball-bearing aluminum gimbal units provide an indescribable and unprecedented feeling of control over the model. The units are easily and comfortably accessible from the back of the transmitter,
to adjust them to your own preferences.
The mz-16 HoTT is equipped with a dual, redundant 2.4GHz RF system. A linear antenna with adjustable beam angle ensures high signal quality and increased range.

Programming or setup help?
Forget thick manuals or endless searching on the internet! The mz-16 HoTT offers help right where it's needed. Every menu and every option has its own help text directly available on the screen.
Just tap the question mark and you'll get the appropriate help and support. Do you want other help texts? The texts can be easily adjusted or expanded.
The mz-16 is there for you and gives you the opportunity to do what you want and love to do most.

Hardware:

• 4-ball-bearing aluminum gimbal units for precise control
• Sun-readable 4.3 inch color TFT touch display
• A transversely mounted linear antenna with adjustable beam angle
• 4000 mAh 1S LiPo battery for transmitter operating times of up to 4h and more
• Micro-USB port with charging function, USB joystick function, mass storage function, headphone jack
• Externally adjustable mode and adjustable spring forces of the gimbals
• Internal 16 GB SD card
• WLAN-enabled
• DSC socket for external modules
• Wireless teacher/student function
• Wireless firmware updates
• Speaker for voice messages and telemetry announcements
• User-definable DSC and data ports (SUMD, Crossfire and others)
• User-definable haptic feedback (vibration alarm)
• 5 x 3-way switches, 2 x 3-way switches/buttons, 1 x 2-way switch, 4 x proportional rotary encoders, 2 side rotary encoders, 8 user-definable digital buttons, 6 navigation buttons

Software:

• 16 proportional control channels
• 999 model memories
• Parallel binding of up to 2 receivers (10 ms or 20 ms transmission rate)
• Model-specific, group or global binding mode
• Model types: Aircraft model, helicopter, multicopter, vehicle, boat
• 8 customizable phases with 12 free mixers each (total 96 mixers)
• 8 wing types, 6 delta wing types, 3 tail types Multi-engine control
• (4) 6 user-definable pages with numerous selectable widgets
• Context-sensitive help texts easily accessible via '?'
• Text-to-speech with VDF editor
• Servo balancing and synchronization
• 6 phase-dependent trim functions and 5 trim types
• 4 phase-dependent, adjustable timers
• 4 phase-dependent Quad Rate and Expo settings
• 12 phase-dependent curve mixers
• 4 dual mixers
• 3 channel sequencers
• 3 ring limiters
• 10 user-definable switching functions
• 6 combi-switches programmable from up to four switches
• 8 logical switches
• 4 snap-roll mixers
• 4 direct settings
• 8 wing and tail mixers
• 9 assignable and configurable system warnings
• 12 assignable and configurable user warnings
• 10 assignable and configurable transmitter announcements
• 8 assignable and configurable voice announcements
• 8 sensor-activated switches
• 4 direct settings for changing values and curve points via transmitter
• Vario and control menu with dead zone control
• Wireless setting of receivers, telemetry and flight controllers in real-time
• Integrated file manager

Scope of delivery:

• mz-16 remote control (Mode 2 pre-set)
• USB charging cable
• USB update adapter for receiver and sensor updates
• LiPo battery 4000 mAh
• Transmitter strap
• Manual

Technical data:

• Control functions: 16
• Dimensions LxWxH: 210 x 195 x 90 mm
• Temperature range °C: -10 - +55 °C
• Total weight: 1070 g
• Frequency: 2400 - 2483.5 MHz
• Range approx.: up to 3000 m
