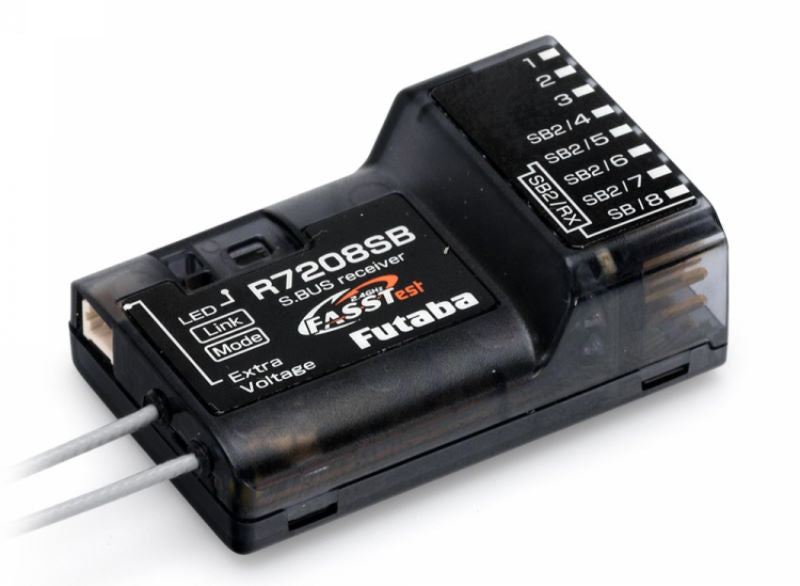

Futaba R-7208SB FASSTest Receiver, 2.4GHz, 38.9x25x14.5mm, 9g

With the Futaba R7208SB, Futaba offers a particularly light and small receiver with telemetry and the new Dual RX function. Its slim design makes it ideal for use in narrow fuselages.
If the R7208SB is operated in Dual RX Mode, a second S.BUS/S.BUS2 receiver is connected to the R7208SB and operated in parallel.

Receiver redundancy significantly increases the reliability of the model: in the event of a problem with the main receiver, the system switches to the second receiver in a flash. An additional S.BUS/S.BUS2 receiver is required for operating the R7208SB in Dual Link Mode.
The R7208SB features antenna diversity. The receiver constantly compares which antenna has the better signal and switches to it in a flash.

Analog or digital servos can be connected to ports 1 to 8. To enable shorter response times, the servo output signal for digital servos can be changed to 6.3 ms (instead of 16 ms for analog servos). The standard channels can be switched so that channels 9 to 18 can be used alternatively at the connections. Or the ports can be used as additional S.BUS2 connections.
Up to 18 programmable S.BUS servos or other S.BUS components such as gyros, flybarless systems or governors can be connected to the S.BUS port. All S.BUS servos are digitally addressed and can be connected with a single servo cable (3 wires). Even if 4 servos are installed in a wing, only a single servo cable goes into the wing. This keeps the entire wiring very simple and clear.
S.BUS2 telemetry sensors can be connected to the S.BUS2 ports. They transmit up to 32 telemetry data sets. The receiver has an integrated telemetry transmitter that transmits the data to the transmitter (FASSTest only). This allows the measured values to be displayed on the transmitter or output acoustically. In addition, the receiver automatically always transmits the voltage of the receiver power supply (voltage sensor is integrated) and the signal strength.

ATTENTION: The receiver supports HV (High Voltage) and can be supplied directly from a 2s LiPo battery. However, always make sure that the connected servos are also designed for HV!

Technical data:

• Transmission type: FASSTest
• Frequency range: 2.4 GHz
• Channels: 8 PWM / 18 S.BUS
• Transmitting power: 100 mW EIRP
• S.BUS Port: S.BUS / S.BUS2
• Voltage range: 3.7 - 8.4 V
• Weight: 11 g
• Dimensions: 24.9 x 38.8 x 14.3 mm

Features:

• 8/18-channel FASSTest receiver
• Dual RX Link
• Telemetry with S.BUS2
• Telemetry with 32 channels
• PWM channels 1-8 or 9-16 selectable
• S.BUS / S.BUS2 Port
• Hi-Voltage (HV)
• Antenna Diversity
• Pulse switching Digital Servos
