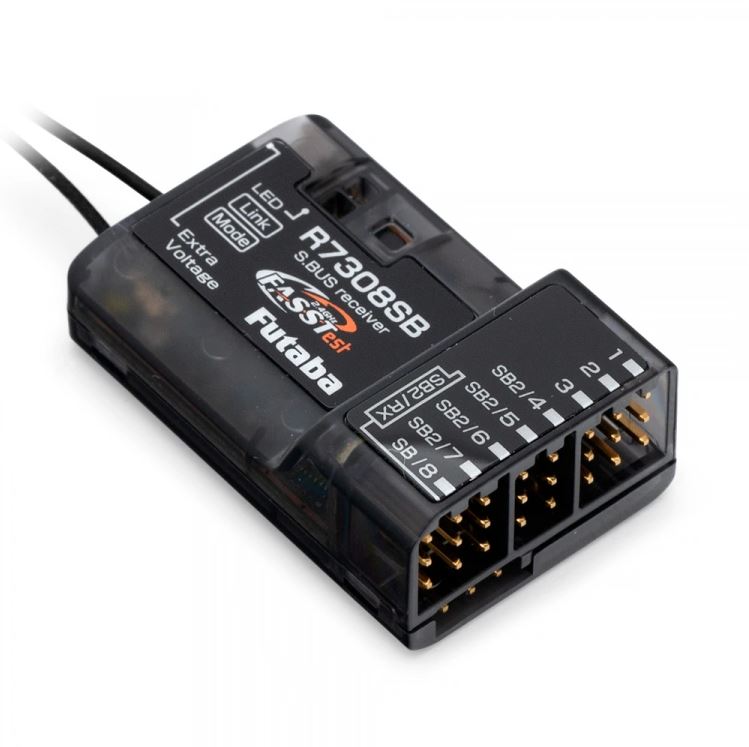

Receiver Futaba R-7308SB FASSTest, 2.4GHz, 38.8x24.9x14.3mm, 11g
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Receiver Futaba R-7308SB FASSTest, 2.4GHz, 38.8x24.9x14.3mm, 11g
Receiver Futaba R-7308SB FASSTest, 2.4GHz, 38.8x24.9x14.3mm, 11g
Analog or digital servos can be connected to ports 1 to 8. To enable shorter response times, the servo output signal for digital servos can be changed to 6.3 ms (instead of 16 ms for analog servos). The standard channels can be switched so that channels 9 to 18 can alternatively be used at the ports. Or the ports can be used as additional S.BUS2 connections.
Up to 18 programmable S.BUS servos or other S.BUS components such as gyros, flybarless systems or governors can be connected to the S.BUS port. All S.BUS servos are digitally addressed and can be connected with a single servo cable (3 wires). Even if 4 servos are installed in a wing, only a single servo cable goes into the wing. This keeps the entire wiring very simple and clear.
S.BUS2 telemetry sensors can be connected to the S.BUS2 ports. They transmit up to 32 telemetry data records. The receiver has an integrated telemetry transmitter that transmits the data to the transmitter (FASSTest only). This allows the measured values to be displayed or audibly output on the transmitter. In addition, the receiver automatically always transmits the voltage of the receiver power supply (voltage sensor is integrated) and the signal strength.
ATTENTION: The receiver supports HV (High Voltage) and can be powered directly from a 2s LiPo battery. However, always ensure that the connected servos are also designed for HV!
Technical data:
- Transmission type: FASSTest
- Frequency range: 2.4 GHz
- S.BUS port: S.BUS / S.BUS2
- Voltage range: 3.7 - 8.4 V
- Weight: 11 g
- Dimensions: 24.9 x 38.8 x 14.3 mm
