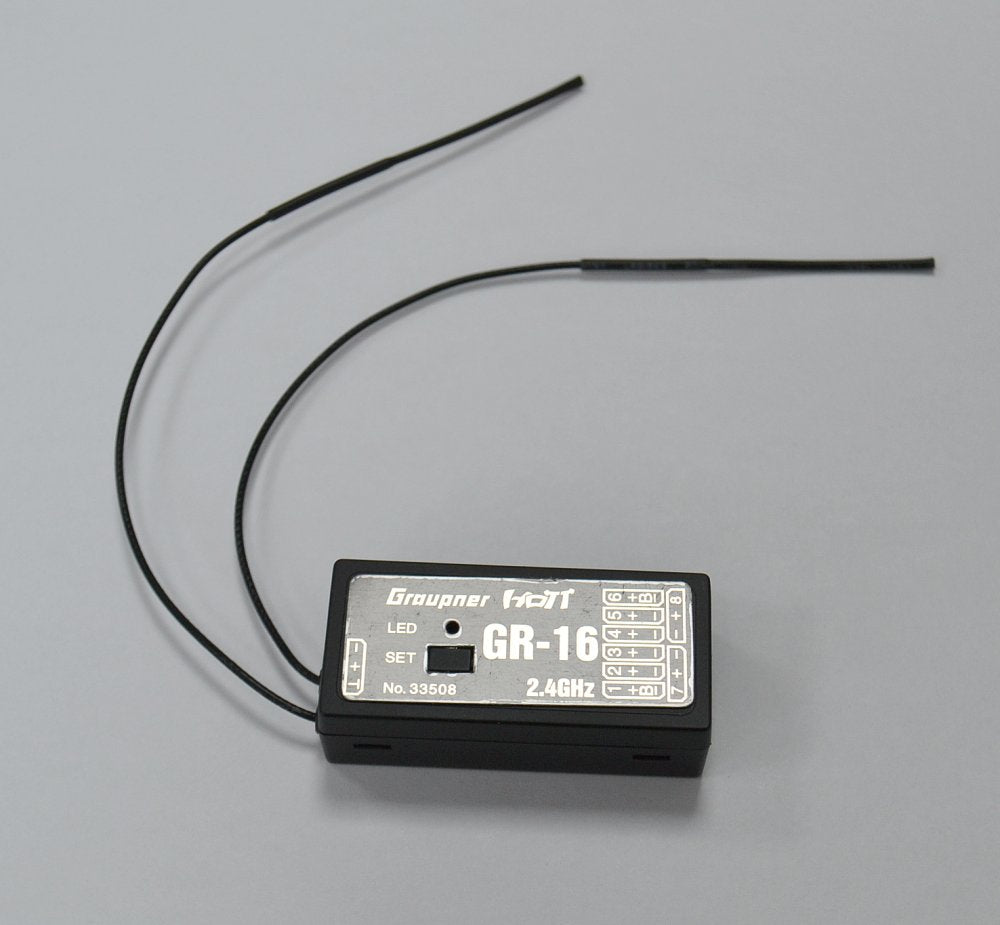

Graupner GR-16 Receiver, 2.4GHz HoTT

Product Information:

With GRAUPNER HoTT 2.4GHz technology, the receiver features a new Hopping Telemetry Transmission high-frequency section with state-of-the-art components and software. Hardware antenna diversity always switches to the better antenna signal for reception and always uses the antenna that was last used for reception for transmission. This ensures that the return channel data is sent via the better positioned antenna. Without additional sensors, the parameters receiver voltage, temperature, and signal strength are transmitted.

Special Features:

• The use of up to 75 channels ensures extreme operational reliability and is insensitive to external interference.
• The wide receiver voltage range of 3.6-8.4V (functional down to 2.5V) ensures full functionality even with voltage fluctuations.
• Size and weight have been reduced.
• Receiver input sensitivity and thus range could be further increased.
• Front-facing servo connectors.
• Failsafe, Hold, OFF and Standard (Channel 1 Failsafe, all others Hold) programmable.

  Special Functions (only in conjunction with Smart-Box):

• 3 programmable mixers.
• Programmable servo curves: linear, degressive, and exponential.
• Sum signal programmable on "Channel 8" output.
• Limiting and reversal of servo travel also possible in the receiver.
• Failsafe, Hold, and OFF individually programmable for servo channels.
• Programmable warning thresholds for undervoltage, overtemperature, and undertemperature.
• Servo test function.

Technical Data Receiver GR-16:

• Manufacturer / Importer: Graupner
• Modulation: FHSS
• Frequency Band: 2400-2483.5 GHz
• Functions: 8 Channels
• Operating Voltage: (2.5) 3.6-8.4V
• Current Consumption approx.: 70 mA
• Weight approx.: 12g
• Dimensions: 46x21x14mm
