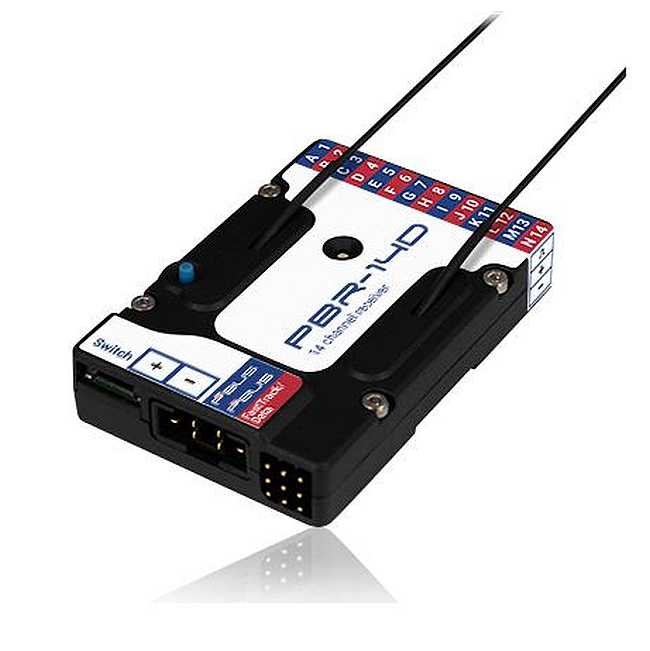

Receiver PBR-14D, 14 Ch. 2.4GHz Receiver for ATOM/CORE, Powerbox-Systems # 8244
Receiver PBR-14D, 14 Channel 2.4GHz Receiver for ATOM/CORE
Powerbox-Systems # 8244
A 14 channel receiver with two redundant receiving sections. The integrated electronic 20A switch, which can be operated either via the built-in blue button or an optional MicroSwitch, is particularly noteworthy. The battery is plugged into the MPX high-current socket, thus safely supplying all 14 servo connections with power. The receiver has two P²BUS interfaces for servo and telemetry data and an additional FastTrack/Data output that can output various 3rd party bus systems or channel 15. Optionally, the iGyroSAT can be connected to use the integrated iGyro function. The integrated receiving sections can be extended with an additional receiving unit using the PBR-26XS.
Features:
- 14 channel 2.4GHz receiver
- two independent redundant receiving units
- receiving sections expandable with PBR-26XS
- extremely interference-resistant reception
- extreme range
- optional with iGyro SAT
- two integrated telemetry and servo bus interfaces (P²BUS)
- 30cm antennas for all installation situations
- integrated electronic switch, switchable with button, MicroSwitch or MicroMag
- MPX high-current connection up to 20A
- powerful real-time telemetry
- reception quality, battery voltage, current and capacity integrated as telemetry
- serial interface (FastTrack, S.BUS and SRXL)
- parameter setting of all functions via transmitter
Technical data:
- Operating voltage: 4.0V - 9.0V
- Supported remote control systems: ATOM/CORE
- Channels: 14
- Servo pulse resolution 4096 Bit
- Dimensions: 62 x 42 x 13 mm
- Weight: 29g
- Temperature range: -30°C to +85°C
