Radiolink R12DS Receiver, 12-Channel FHSS/DSSS Receiver for AT9S and AT10II
Receiver Radiolink R12DS, 12-Channel FHSS/DSSS Receiver for AT9S & AT10II
Receiver is not compatible with Futaba S-FHSS

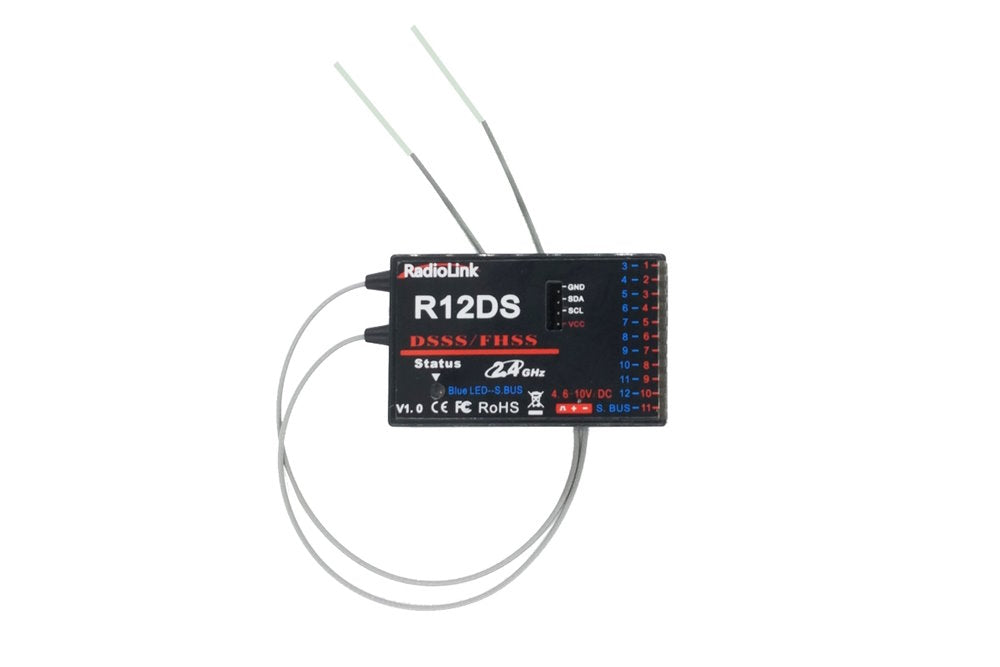

The Radiolink R12DS 2.4GHz is a 12-channel telemetry receiver with frequency hopping in DSSS and FHSS. It is suitable for all types of models and has full range. The use of DSSS / FHSS transmission technology provides high interference immunity and the ability to set fail-safe for signal loss or strong interference. The R12DS is compatible with the telemetry modules PRM-01 and PRM-02.
It is compatible with Radiolink transmitters:
- AT9 / AT9S / AT9S Pro
- AT10 / AT10 II
Operating Modes
- PWM Servo Output:
The red LED indicates the PWM signal output, a total of 11 channels. - S-BUS Serial Output:
The blue/purple LED indicates S-BUS serial signal output, a total of 12 channels. S-BUS and PWM can be used simultaneously in this mode.
The SBUS output signal is located at socket 11, and sockets CH1 and CH10 simultaneously serve as PWM outputs for channel signals 3 to 12.
The number of PWM outputs you can use depends on how many S-BUS signal channels you use (e.g., if you use 4 S-BUS signal channels, 8 PWM signal channels are available to you).
Binding with the transmitter is done using the bind button on the receiver, and the operating statuses are indicated by the LED.
The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba)
Technical Data:
Modulation/Encoding: 2.4GHz FHSS/DSSS
Channels PWM: 11
Channels (S-BUS/PPM): 12
Serial Output: PPM, S-BUS
Ground Range: 1100m
Air Range: 3000-4000m
Functions: Fail-safe
Power Supply: 3.6 - 12V
Current Consumption without Servos: 38-45mA
Dimensions: 50x31.5x14.5mm
Weight: 14g
Scope of Delivery:
- 1x Receiver R12DS
- Manual.
