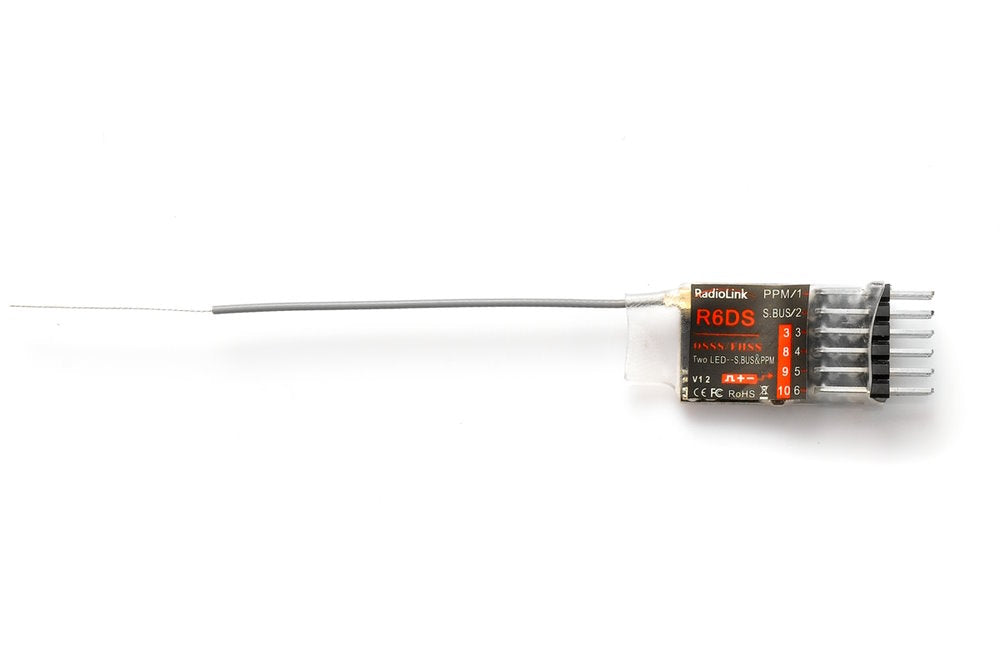

Radiolink R6DS Receiver, Small 6-Channel FHSS/DSSS Receiver for AT9, AT9S, AT10
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Radiolink R6DS Receiver, Small 6-Channel FHSS/DSSS Receiver for AT9, AT9S, AT10
Radiolink R6DS Receiver, Small 6-Channel FHSS/DSSS Receiver
Receiver is not compatible with Futaba S-FHSS
The Radiolink R6DS 2.4GHz is a small 6-channel receiver with synchronous DSSS and FHSS spread spectrum transmission with frequency hopping. It is suitable for slow-flyers and park-flyers, racing drones, and other smaller models. The use of DSSS/FHSS transmission technology offers high interference immunity and the ability to set fail-safe for signal loss or severe interference.
It is compatible with the following Radiolink transmitters:
- AT9
- AT 9S
- AT10
- AT10II (10CH mode must be set)
Operating modes
- PWM-individual servo signal outputs:
The red LED indicates the PWM signal output, a total of 6 channels. - With the S-BUS+PPM serial output:
The blue/purple LED indicates SBUS+PPM signal output, a total of 10 channels. In S-BUS mode, the S-BUS+PPM and PWM signal outputs are simultaneously available. CH1 outputs PPM, CH2 outputs SBUS, CH3 to CH6 simultaneously serve as PWM signal outputs for channels 3, 8, 9, and 10.
Binding with the transmitter is done using the bind button on the receiver; operating statuses are indicated by the LED.
The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba)
Technical Data:
Modulation/Encoding: 2.4GHz FHSS / DSSS
Channels (PWM): 6
Channels (S-BUS+PPM): 6 - 10
Serial Output: PPM, S-BUS
Ground Range: 300m
Air Range: 600m
Functions: Fail-safe
Power Supply: 4.8-6V
Current Consumption without Servos: 38 - 45mA
Dimensions: 25x15x10mm
Weight: 3.4g
Scope of delivery:
- 1x R6DS Receiver
- Manual.
