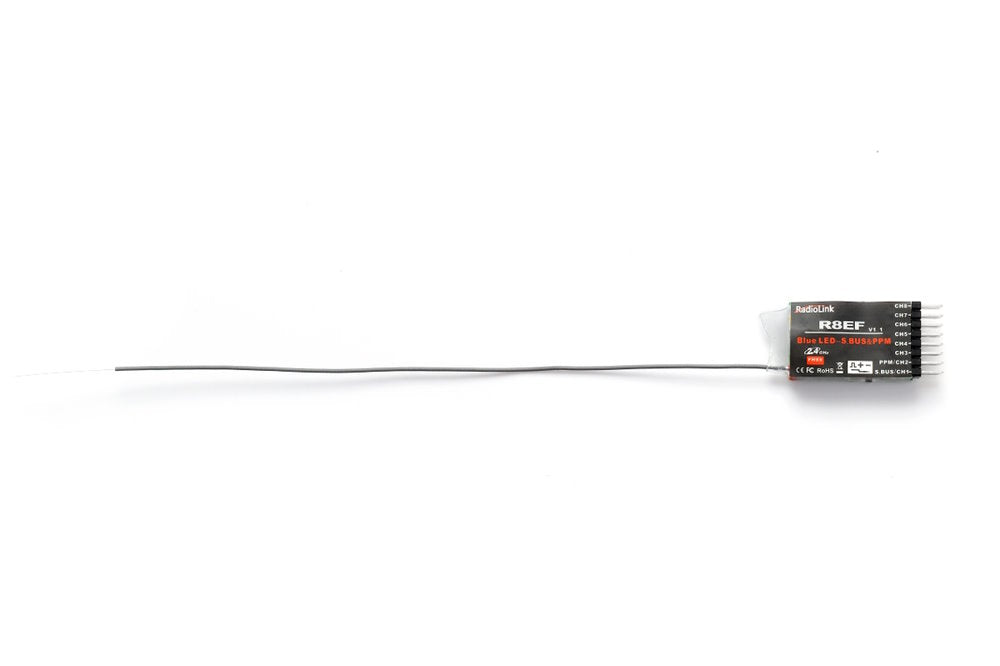

Radiolink R8EF Receiver, 8-Channel FHSS, S-BUS or PPM-Serial, 48.5x21x11mm, 7g
Prices incl. VAT unless stated otherwise. For 1 unit of this item.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
-
Radiolink R8EF Receiver, 8-Channel FHSS, S-BUS or PPM-Serial, 48.5x21x11mm, 7g
Receiver Radiolink R8EF, 8-channel FHSS, PWM / S-BUS / PPM-Serial, 48.5x21x11mm, 7g
Receiver is not compatible with Futaba S-FHSS
The Radiolink R8EF 2.4GHz is an 8-channel FHSS receiver with frequency hopping. It is particularly suitable for slow/park flyers, multicopters, and racing drones. The use of FHSS transmission technology offers high interference immunity and the ability to set fail-safe for signal loss or strong interference.
It is compatible with Radiolink transmitters:
- AT8FB
Operating modes
- PWM servo output:
The red LED indicates the PWM signal output, a total of 8 channels. - S-BUS serial output:
The blue/purple LED indicates S-BUS, PPM serial signal output, a total of 8 channels. In this mode, S-BUS, PPM, and PWM signals are available simultaneously.
CH1 - S-BUS signal output, CH2 - PPM signal output, CH3 to CH8 PWM signal output
Binding with the transmitter is done using the bind button on the receiver; operating statuses are indicated by the LED.
The receiver is equipped with contact strips for standard UNI (=JR/Graupner, Hitec, Futaba) plugs
Technical data:
Modulation/Encoding: 2.4GHz FHSS
Channels PWM: 8
Channels (S-BUS/PPM): 8
Serial output: PPM, S-BUS
Range ground: 500m
Range air: 1000m
Functions: Fail-safe
Power supply: 4.8-7.4V
Current consumption without servos: 30mA
Dimensions: 49x21x11mm
Weight: 7g
Scope of delivery:
- 1x R8EF receiver
- Manual.
