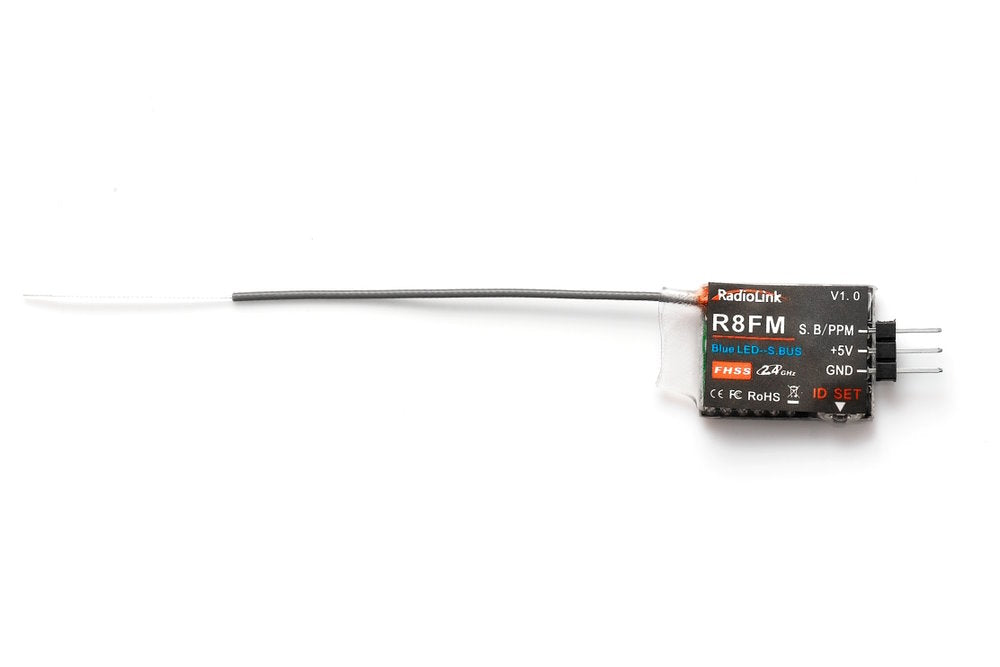

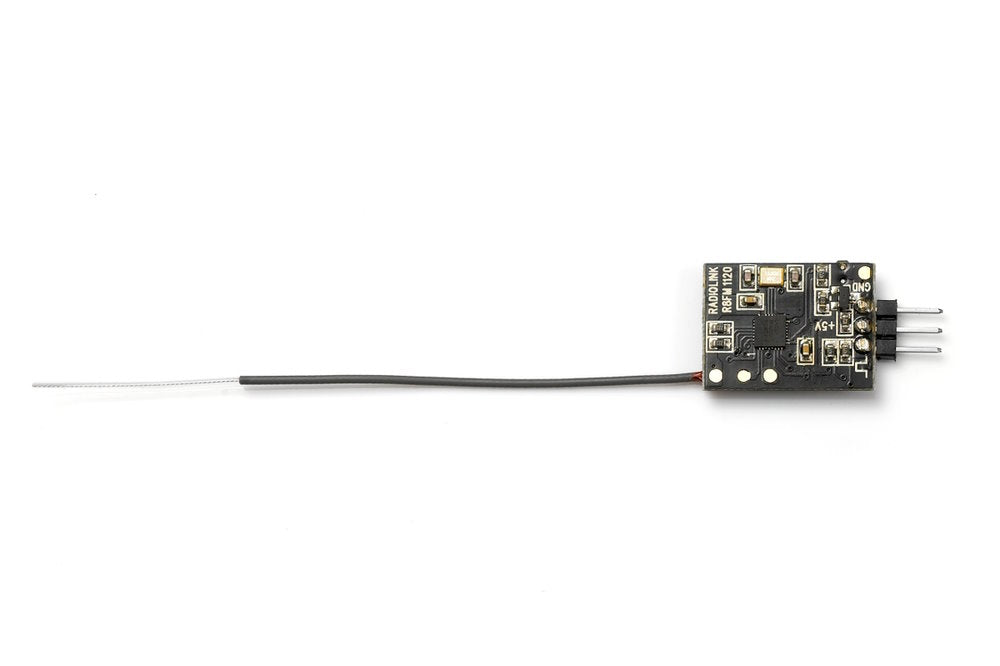

Receiver Radiolink R8FM, 8-K Mini S-BUS/PPM Serial Receiver, 300-600m Range
Prices incl. VAT unless stated otherwise. For 1 unit of this item.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
-
Receiver Radiolink R8FM, 8-K Mini S-BUS/PPM Serial Receiver, 300-600m Range
Radiolink R8FM receiver, 8-channel Mini S-BUS/PPM serial receiver, 300-600m range
Receiver is not compatible with Futaba S-FHSS
The Radiolink R8DSM 2.4GHz is a small 8-channel receiver with FHSS transmission and frequency hopping. It is particularly suitable for multi-copters and racing drones. The use of DSSS/FHSS transmission technology offers high interference immunity and the possibility to set fail-safe for signal loss or strong interference.
It is compatible with the following Radiolink transmitters:
- AT8FB
Operating modes
- PPM series output:
The red LED indicates the PWM signal output, a total of 8 channels. - S-BUS series output:
The blue/purple LED indicates S-BUS signal output, a total of 8 channels.
Binding with the transmitter is done using the bind button on the receiver; the operating status is indicated by the LED.
The receiver is equipped with contact strips for standard UNI connectors (=JR/Graupner, Hitec, Futaba)
Technical data:
Modulation/Encoding: 2.4GHz FHSS
Channels (S-BUS/PPM): 8
Serial output: PPM, S-BUS
Ground range: 300m
Air range: 600m
Functions: Fail-safe
Power supply: 4.8-6V
Current consumption without servos: 30mA
Dimensions: 21.5x16x5.5mm
Weight: 2.5g
Scope of delivery:
- 1x R8FM receiver
- Instructions.
