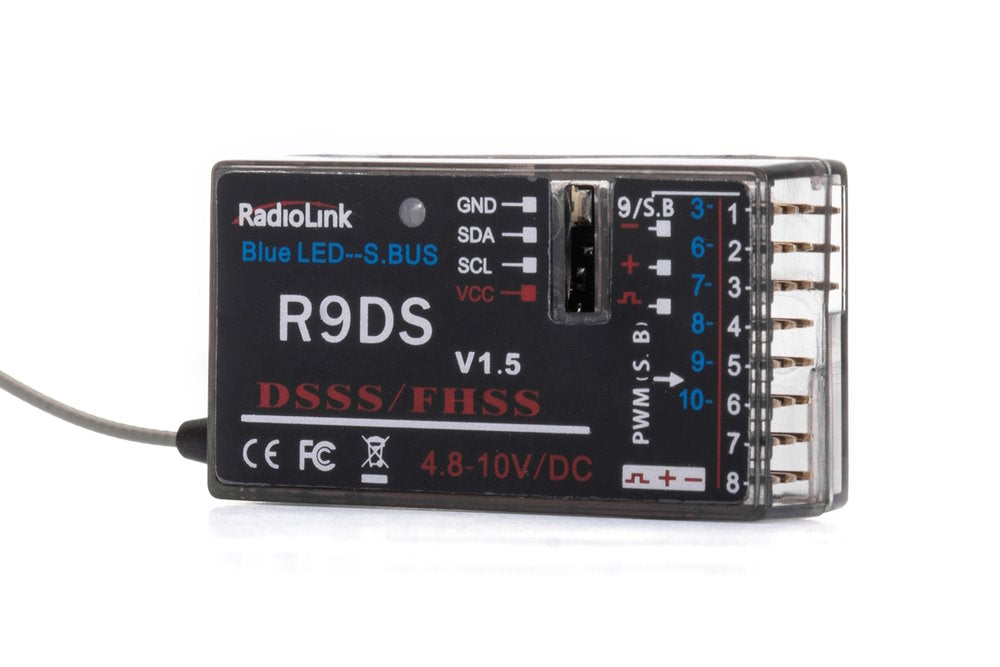

Radiolink R9DS Receiver, 9-channel FHSS/DSSS Receiver, for AT9S, AT10II
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time Germany: 1-3 business days.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
Radiolink R9DS Receiver, 9-channel FHSS/DSSS Receiver, for AT9S, AT10II
Radiolink R9DS receiver, 9-channel FHSS/DSSS, Telemetry, for AT9S, AT10II
Receiver is not compatible with Futaba S-FHSS
The Radiolink R9DS 2.4GHz is a 9-channel telemetry receiver with frequency hopping in DSSS and FHSS. It is suitable for all types of models and has full range. The use of DSSS / FHSS transmission technology provides high interference immunity and the ability to set fail-safe for signal loss or strong interference.
It is compatible with the Radiolink transmitters:
- AT9 / AT9S / AT9S Pro
- AT10 / AT10 II
Operating modes
- PWM servo output:
The red LED indicates the PWM signal output, a total of 9 channels. - S-BUS serial output:
The blue/purple LED indicates S-BUS serial signal output, a total of 10 channels. S-BUS and PPM can be used simultaneously in this mode.
CH9 - S-BUS signal output, CH1 - PPM signal output, CH2 to CH6 - PWM signal output
Binding with the transmitter is done using the bind button on the receiver; the operating status is indicated by the LED.
The receiver is equipped with contact strips for standard UNI plugs (=JR/Graupner, Hitec, Futaba)
Technical data:
Modulation/Coding: 2.4GHz FHSS/DSSS
PWM Channels: 9
Channels (S-BUS/PPM): 10
Serial output: PPM, S-BUS
Ground range: 900m
Air range: 2000-3000m
Functions: Fail-safe
Power supply: 3.6 - 10V
Current consumption without servos: 38-45mA
Dimensions: 43x24x15mm
Weight: 10.5g
Scope of delivery:
- 1x R9DS receiver
- Instructions.
