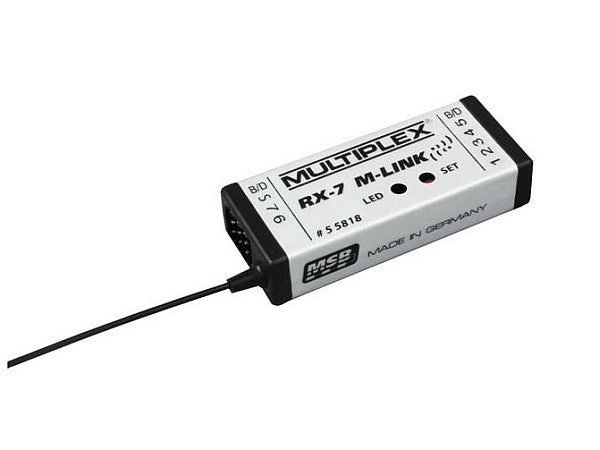

Receiver RX-7 Multiplex "M-LINK 2.4GHz", # 55818

High-quality, 7-channel receiver built with state-of-the-art SMD technology, featuring MULTIPLEX 2.4 GHz M-LINK technology. With signal pre-amplification for maximum sensitivity and long range.

• Inline connector arrangement on both the front and back, allowing for particularly compact dimensions.
• HOLD / FAIL-SAFE function.
• Integrated SET button and LED: For binding, FAIL-SAFE programming, reset, and operating status information.
• Telemetry / Return channel capable: Receiver battery voltage and connection quality = standard features.
• Integrated sensor interface for connecting external sensor modules via MSB (MULTIPLEX Sensor Bus).
• Prepared for dual-receiver operation (Diversity cable # M85070 required).
• Prepared for serial servo output: Servo outputs as a sum signal – SRXL-MULTIPLEX. The first 12 channels transmitted by the receiver are transmitted via a three-wire cable (# 8 5070) via the receiver's B/D port, e.g., for power supply and servo management systems or flybarless systems in helicopters.
• Prepared for setting a sensor address as a "priority address" (the selected sensor value experiences a higher update rate than all other sensor values).
• Integrated error counter / data logger for voltage and signal errors.
• MULTImate compatible.
• Integrated PC interface for updates and settings with the MULTIPLEX Launcher PC program in conjunction with the USB PC cable UNI (# M85149).

Application area:

• Gliders and electric gliders up to approx. 2.50 m wingspan
• Small to medium-sized RC helicopters with a rotor diameter of up to approx. 1m
• Electric and combustion models with a wingspan of up to approx. 1.60m
• RC cars
• RC boats

Technical data:

• Manufacturer: Multiplex
• Transmission type: 2.4 GHz FHSS M-LINK System
• Number of channels: 7
• Operating voltage: 3.5 - 9.0 V
• Power supply: 2S LiXX, 4-6 cells NiXX
• Temperature range: -20°C ... +55°C
• Dimensions: (LxWxH) 54x22.5x11.5mm
• Weight: approx. 13g
