Possible Hazards - Epoxy Resin L

Hazard-determining component for labeling

2,2'-[(1-methylethylidene)bis(4,1-phenyleneoxymethylene)] bisoxirane
Reaction mass of 2,2'-[methylenebis(4,1-phenyleneoxymethylene)]dioxirane and [2-({2-[4-(oxiran-2-ylmethoxy)benzyl]phenoxy}methyl)oxirane and [2,2'-[methylenebis(2,1-phenyleneoxymethylene)]dioxirane
Reaction products of hexane-1,6-diol with 2-(chloromethyl)oxirane (1:2)

Signal word: Warning

Pictograms:

Safety instructions GHS / H-phrases

H315 Causes skin irritation.
H317 May cause an allergic skin reaction.
H319 Causes serious eye irritation.
H411 Toxic to aquatic life with long lasting effects.

Safety instructions GHS / P-phrases

P261 Avoid breathing dust / fume / gas / mist / vapours / spray.
P273 Avoid release to the environment.
P280 Wear protective gloves / protective clothing / eye protection / face protection.
P305 P351 P338 IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
P333 P313 If skin irritation or rash occurs: Get medical advice / attention.
P501 Dispose of contents / container in accordance with local regulations.

Safety instructions GHS / EUH phrases EUH205:

Contains epoxy constituents. May produce an allergic reaction.

Possible Hazards - Hardener CL

Hazard-determining component for labeling

3-Aminomethyl-3,5,5-trimethylcyclohexylamine
Cyclohexanemethanamine, 5-amino-1,3,3-trimethyl-, reaction products with Bisphenol-A-Diglycidyl ether homopolymer
Benzyl alcohol

Signal word: Danger

Pictograms:

Safety instructions GHS / H-phrases

H302 Harmful if swallowed.
H314 Causes severe skin burns and serious eye damage.
H317 May cause an allergic skin reaction.
H318 Causes serious eye damage.
H412 Harmful to aquatic life with long lasting effects.

Safety instructions GHS / P-phrases

P260 Do not breathe dust / fume / gas / mist / vapours / spray.
P303 P361 P353 IF ON SKIN (or hair): Take off immediately all contaminated clothing. Rinse skin with water or shower.
P310 Immediately call a POISON CENTER / doctor.
P362 P364 Take off contaminated clothing and wash it before reuse.
P405 Store locked up.
P501 Dispose of contents / container in accordance with local regulations.

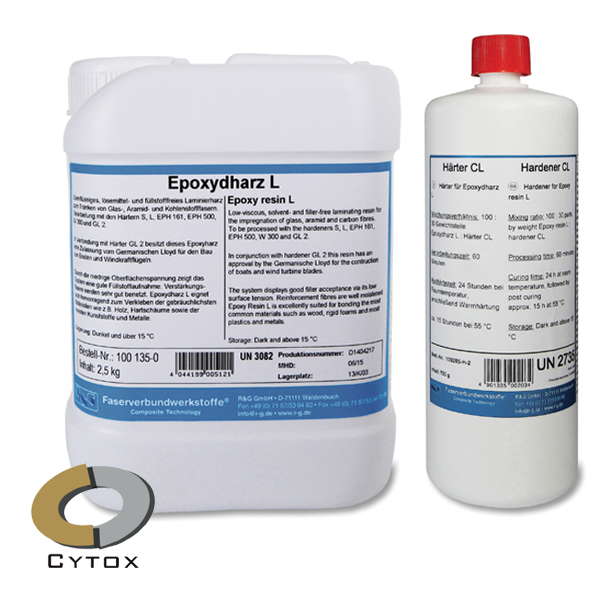

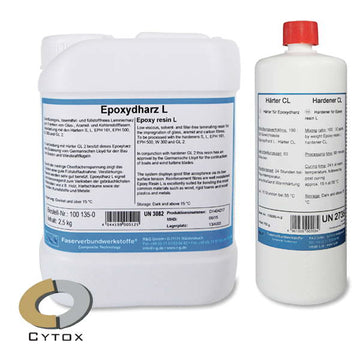

Epoxy Resin L with Hardener CL (60 min), pack/ 930g (2500 g Resin L + 750 g Hardener CL 2)
RG # 109285-AP-3

The epoxy resin system L + Hardener CL has excellent impregnating and wetting properties for glass, aramid and carbon fibers. It is particularly suitable for CFRP coating of components.

• Low viscosity
• High transparency
• Good UV resistance
• Tack-free curing even of the thinnest layers
• Glass transition temperature (Tg) > 90 °C (with warm curing 70 °C / 15 h)
• High static and dynamic strength (corresponds approximately to Epoxy Resin L 285 with Hardener 285)

Pot life: 60 minutes (100 g / 20 °C)

Mixing ratio:
100 : 30 parts by weight Epoxy Resin L : Hardener CL
100 : 35 parts by volume Epoxy Resin L : Hardener CL

The resin system is usually cured at room temperature, but does not develop pronounced brittleness even at curing temperatures below 20 °C (approx. 24 - 48 h). To exploit the full potential and obtain optimal mechanical and physical properties, we recommend additional warm curing at at least 40 °C for 15 h.

Epoxy Resin L + Hardener CL is suitable for the following processing methods:

• Hand lamination
• Vacuum bagging
• Wet pressing

Expert opinion on the resin system Epoxy Resin L + Hardener CL: this system is non-cytotoxic (cell damaging), important for applications in medical technology.
