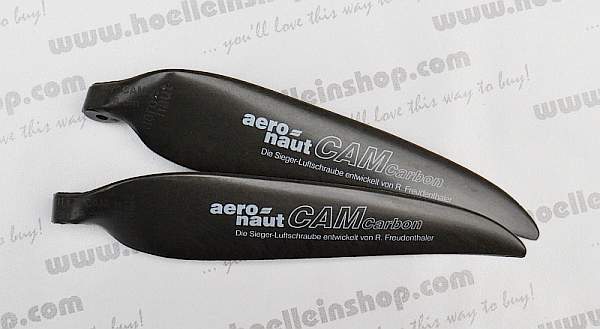

Aeronaut CAM Carbon 11.0"x10.0", # 723443

Why Aeronaut CAMcarbon?

The special features:

The special features of the new CAM folding propellers are the enormous innovations compared to the classicPROP. This new generation, developed by R. Freudenthaler, has an optimized, very thin airfoil design and a computer-calculated airfoil twist, which leads to very high accuracy with optimal efficiency and low power consumption by the motor.

CAM? What is that...?

CAM is English and stands for "Computer Aided Manufacturing." The molds for the injection molding process are no longer made by hand as with the previous classicPROP, but are developed on a PC using a CAD program (Computer Aided Design). The production of these molds is then controlled by the PC based on the entered data. This is an enormous advantage, as a more precise mold can hardly be produced, and the final propeller has practically no deviations from the original model.

The weight:

Convince yourself of the incredibly light weight of the new CAM folding propellers. You will be surprised!

The material:

Exclusively a mixture of carbon fibers with nylon is used as the material, which gives the propeller high torsional rigidity and has proven itself for years in our propellers. Carbon is a very strong material, so the propeller retains its shape even under high loads. This is, of course, an advantage over fiberglass-reinforced plastic propellers, which achieve different efficiencies under high loads compared to a CAMcarbon!

The advantages (at a glance):

• Very low weight! Due to the processed material and the very thin profiling, the weight is very low.
• A sharp trailing edge! Gives the propeller a special aerodynamic nuance.
• Very quiet! The new CAM technology makes these folding propellers among the quietest in their class.
• Very thin profile! Significant weight savings, not least because of the material.
• High efficiency! Achieved through the optimal profile.

Technical data:

• Diameter (in inches) 11
• Pitch (in inches) 10
• Blade root width (mm) 8
• Mounting bore (mm) 3
• Permissible RPM (U/min) max. 13000
