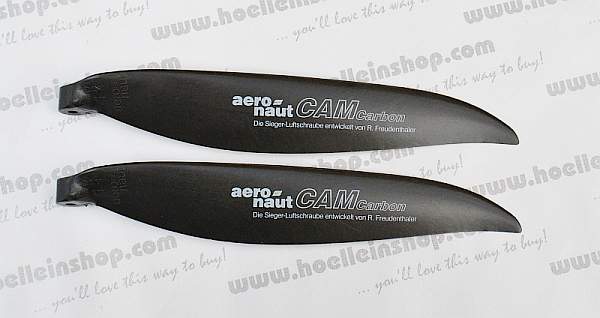

Aeronaut CAM Carbon 13.0"x11.0", # 723459

Why Aeronaut CAMcarbon?

The special features:

The special thing about the new CAM folding propellers are the enormous innovations compared to the classicPROP. This new generation, developed by R. Freudenthaler, has an optimized, very thin airfoil design and a computer-calculated airfoil twist, which leads to very high accuracy with optimal efficiency and low power consumption by the motor.

CAM? What is that...?

CAM stands for "Computer Aided Manufacturing". The molds for the injection molding process are no longer made by hand, as with the previous classicPROP, but are developed on a PC with the help of a CAD program (Computer Aided Design). The production of these molds is then controlled by the PC based on the input data. This is an enormous advantage, as it is hardly possible to produce a more accurate mold, and the final propeller has practically no deviations from the original model.

The weight:

Convince yourself of the incredibly light weight of the new CAM folding propellers. You will be surprised!

The material:

The material used is exclusively a mixture of carbon fibers with nylon, which gives the propeller high torsional stiffness and has proven itself over many years in our propellers. Carbon is a very strong material, so the propeller retains its shape even under high loads. This is, of course, an advantage over fiberglass-reinforced plastic propellers, which achieve different efficiencies under high loads than a CAMcarbon!

The advantages (at a glance):

• Very low weight! Due to the material used and the very thin profiling, the weight is very low.
• A sharp trailing edge! Gives the propeller a special aerodynamic touch.
• Very quiet! The new CAM technology makes these folding propellers among the quietest in their class.
• Very thin profile! Great weight savings, not least because of the material.
• High efficiency! Achieved through the optimal profile.

Technical data:

• Diameter (in inches) 13
• Pitch (in inches) 11
• Blade root width (mm) 8
• Mounting hole (mm) 3
• Permissible speed (rpm) max. 12000
