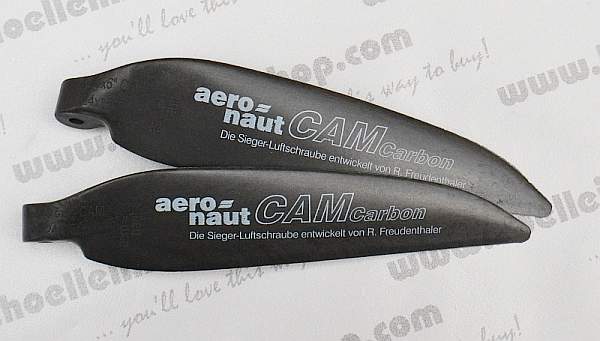

Aeronaut CAM Carbon 9.5"x7.0", # 723421

Why Aeronaut CAMcarbon?

The Special Feature:

The special feature of the new CAM folding propellers is the enormous innovations compared to the classicPROP. This new generation, developed by R. Freudenthaler, has an optimized, very thin airfoil design and a computer-calculated airfoil twist, which leads to very high accuracy with optimal efficiency and low power consumption of the motor.

CAM? What is that...?

CAM is an acronym for "Computer Aided Manufacturing." Unlike the previous classicPROP, the molds for the injection molding process are no longer made by hand, but are developed on a PC using a CAD program (Computer Aided Design). The production of these molds is then controlled by the PC based on the input data. This is an enormous advantage, as a more accurate mold can hardly be produced, and the final propeller has practically no deviations from the original model.

The Weight:

See for yourself the incredibly light weight of the new CAM folding propellers. You will be surprised!

The Material:

The material used is exclusively a mixture of carbon fibers with nylon, which gives the propeller high torsional rigidity and has proven itself for years in our propellers. Carbon is a very strong material, so the propeller retains its shape even under high loads. This is, of course, an advantage over fiberglass-plastic propellers, which achieve different efficiencies under high loads compared to a CAMcarbon!

The Advantages (at a glance):

• Very low weight! Due to the processed material and the very thin profiling, the weight is very low.
• A sharp trailing edge! Gives the propeller a special aerodynamic flair.
• Very quiet! The new CAM technology makes these folding propellers among the quietest in their class.
• Very thin profile! Great weight savings, not least because of the material.
• High efficiency! Achieved through the optimal profile.

Technical Data:

• Diameter (in inches)   9.5
• Pitch (in inches)  7
• Blade root width (mm)  8
• Mounting hole (mm)  3
• Permissible RPM (U/min)  max. 16000
