FUTABA CGY755 Heli 3D/F3C Gyro
As of April 2026 · Prices incl. VAT unless stated otherwise.
-
Delivery time on request.
-
Free shipping on orders over 129 EUR (within Germany, excluding product-dependent surcharges!)
FUTABA CGY755 Heli 3D/F3C Gyro
FUTABA CGY755 Heli 3D/F3C Gyro

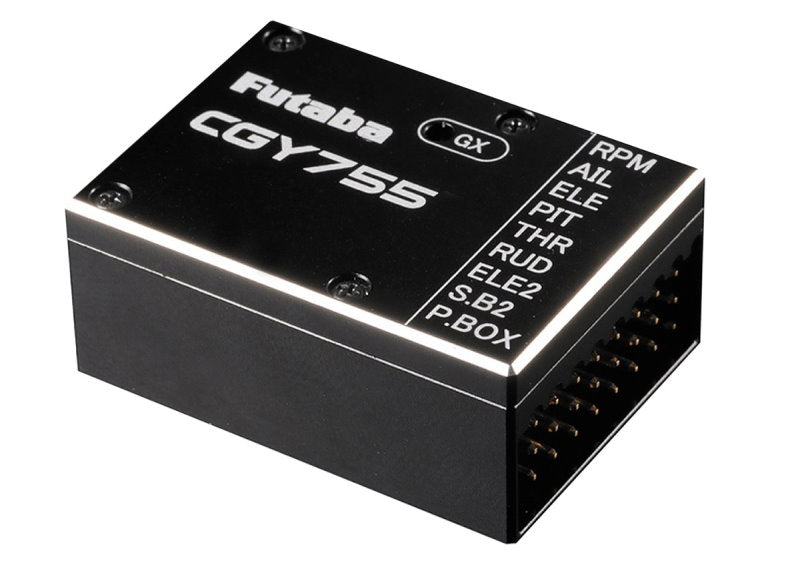

The FUTABA CGY755 is the powerful 3-in-1 solution for helicopters and includes the flybarless gyro, the tail rotor gyro, and the integrated governor for electric and internal combustion engines. Thanks to its high-quality 3-axis sensors and accelerometers, as well as its ultra-fast PID control loops, the CGY755 sets standards in its class! With the appropriate programming parameters, the CGY755 can be perfectly programmed for both 3D and F3C aerobatics.
Parameters can be adjusted either wirelessly via the transmitter or the GPB-1 programming box (via trainer port). The gyro housing is made of high-quality, anodized aluminum and can be mounted either rigidly or damped in the model.
Features
- Powerful 3-in-1 solution with flybarless gyro, tail rotor gyro & governor for electric & internal combustion drives
- High-quality 3-axis sensors and accelerometers
- Wireless programming
- Servo neutral times 760 µs and 1520 µs
- Easy Setup for 3D & F3C
- Supports S.BUS2 telemetry sensors
- High-quality aluminum housing
- Rigid or damped mounting possible
- Programmable via GPB-1
Technical Data
- Operating voltage: 4.2 - 8.4 V
- Swashplate types: H3-90; H3-120; H3-140; H4-00; H4-45
- Head speed range: 700 rpm - 4000 rpm
- Rotation rate: +/- 1200° / s
- Speed resolution: 6 rpm
- Servo neutral times: 760 µs and 1520 µs
- Servo framerate: 70 Hz (Analog), 280 Hz (Digital 1520 µs), 560 Hz (Digital 760 µs)
- Gyro dimensions: 37.5 x 26.8 x 16.0 mm
- Weight: 20.2 g
Scope of delivery
- CGY755 3-Axis Heli-Gyro and Governor
- Instruction manual
