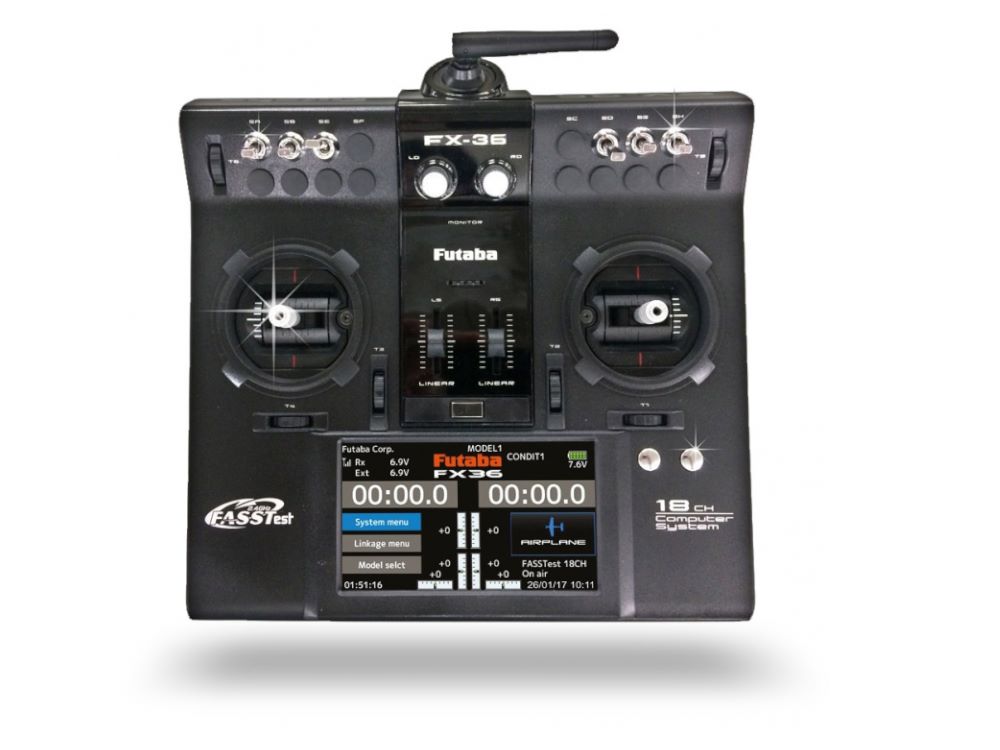

Futaba FX-36 with R7208SB FASSTest 2.4GHz, WITHOUT battery and charger

Description:

The Futaba FX36 is FUTABA's flagship tray transmitter and was designed for professional use in model sports. Quality and features meet the highest demands and leave nothing to be desired in terms of transmission reliability, functionality and usability. The extensive telemetry functions are identical to the well-known T18MZ systems. For control, Futaba's best gimbal units, the ST-57, are used.

The system includes all known modulations such as FASST, FASSTest, T-FHSS and FHSS. The menu navigation is clearly structured and can be operated quickly via the large, colored touch screen. In addition to the known functions of the T-18MZ, a multi-copter menu and a 9-language menu navigation have been added. The integrated SD card slot for storing model data and for software updates for future new applications makes this system future-proof. The high-quality transmitter housing impresses with its manufacturing quality and fits perfectly in the hand. The ergonomically arranged switches and controls enable fatigue-free operation.

Features:

• Professional 18-channel remote control system with FASSTest & T-FHSS 2.4 GHz technology
• Ergonomic tray transmitter design
• Professional gimbal units ST-57
• Extensive telemetry functions from T18MZ
• New S.BUS functions
• Model selection, internal memory for 30 models, expandable indefinitely via SD card
• Model/user name up to 15 characters
• Switchable modulations FASST, FASSTest, S-FHSS, T-FHSS
• Stick mode 1-4 · 9-language menu navigation
• Color touch screen 4.3 inches 480 x 272 pixels
• Telemetry with voice output via loudspeaker, optional headphones
• 18 control elements: 6 trim levers, 8 switches, 2 rotary encoders, 2 side levers, all freely assignable
• Graphical servo monitor for displaying all servo travels with servo test function
• Future-proof thanks to update capability via SD card
• Extensive timer and calendar functions
• Vibration alarm
• S.Bus port with power support for programming and registering S.Bus products
• 8 flight conditions per model memory like T18MZ, can be combined with logic function
• 10 free programmable mixers
• AFR 3 modes, up to 17 points
• 13 wing types, 3 tail types, 8 swashplate types are available
• Fully equipped helicopter menu with swash ring, governor, servo travel and speed compensation, throttle limiter
• 3 curve modes for throttle/pitch, up to 17 points possible
• Fully equipped glider menu with 13 wing types, 3 tail types
• Extensive mixer selection for gliders and motor models like T18MZ
• Freely configurable teacher/student channel assignment, individually or mixed operation

Technical data:

• Channels: 18
• Transmission system: FASSTest, FASST, T-FHSS, S-FHSS
• Frequency: 2.4 GHz
• Voltage range: 6.0...7.4 V

Scope of delivery:

• Transmitter FX36, 2.4GHz FHSS/T-FHSS/FASST/FASSTest

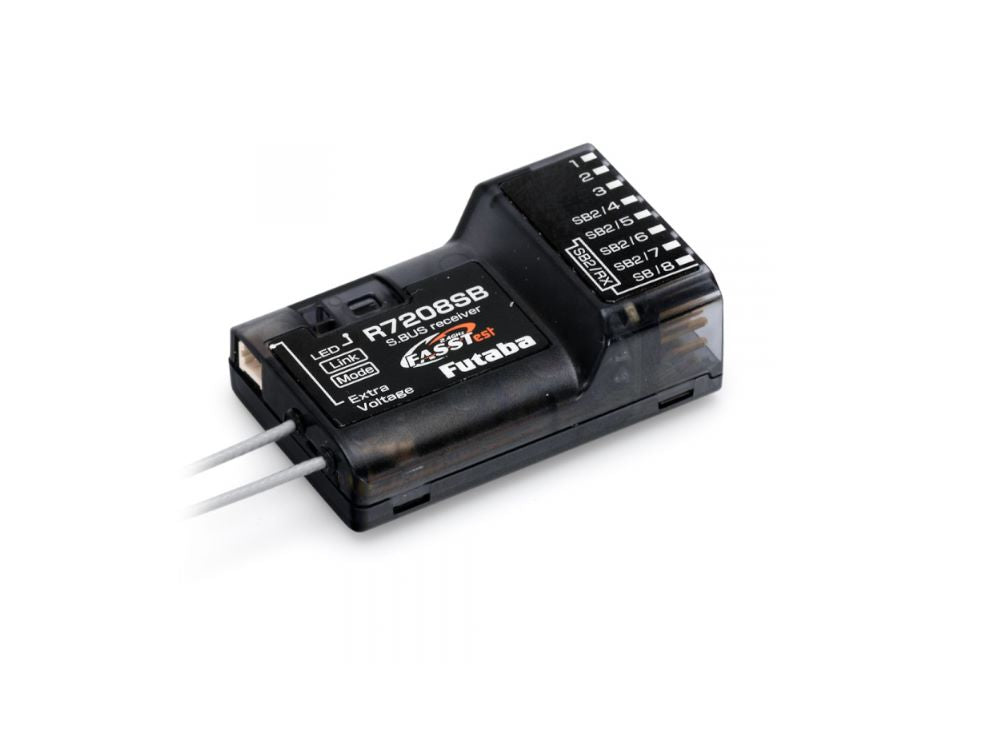

• Receiver R7208SB FASSTest
• Switch cable
• Manual available for download
