(Delivery is of course without servo!)

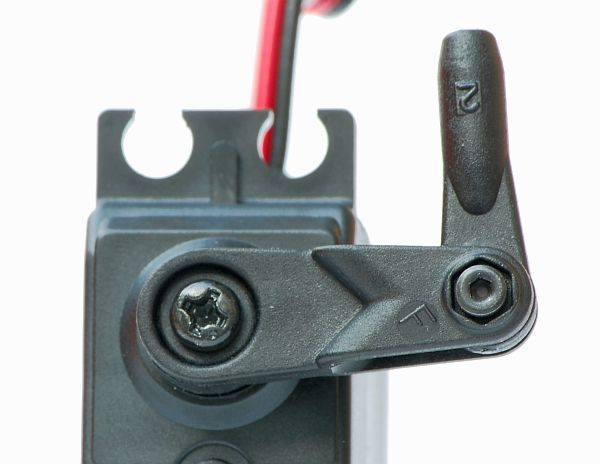

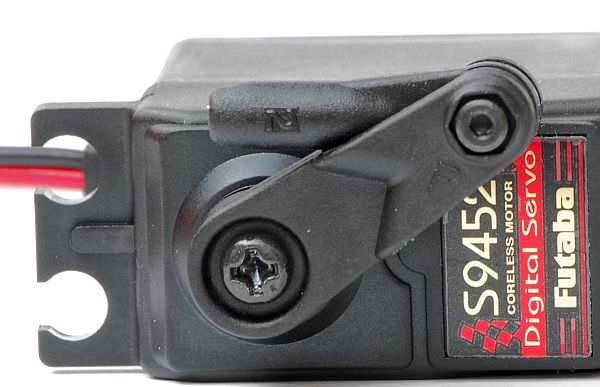

20mm Fork Servo Arm for KST / MKS
with 25T-6 output, carbon reinforced, PU 1 piece

To ensure that the high torque of modern digital servos can be transmitted to the rudder without play and with ease, the fork servo arms have been designed for extreme loads. The force is transmitted centrally to the servo gearing, which prevents jamming of the servo output. The servo arms are made of highly compressed carbon fiber plastic. At 300 °C and under high pressure, the levers are shaped in hardened stainless steel molds. Since this process has similarities with the production of highly stressed components in large aircraft construction, it was adopted for the production of these servo arms. The result is a high-strength lever that does not need to fear comparison with aluminum. However, it is lighter and more vibration-resistant than aluminum. All servo arms are manufactured in Germany on state-of-the-art CNC machines.

Delivery includes a pre-assembled ball joint, item no. 993008. Alternatively, you can also mount ball joints item no. GG993009 (for M2.5 threaded rod) and item no. GG993010 (for M3 threaded rod). These are not included in the scope of delivery and must be ordered separately.

Scope of delivery:

• 1x Fork servo arm
• 1x Ball head M2 (pre-assembled)
